R58 Armour

ID: R58 Armour
Category: ARM PC / Digital Signage
Unit: 1pcs
Material: Aluminium housing
Color: Black
Brand: Mekotronics
Model: R58 Armour
产品详情

To order 1pcs with different configurations:


4+32G

https://trading.made-in-china.com/start-order.html?from=3&prodId=VOYtluLClKhw&sample=1

8+64G

https://trading.made-in-china.com/start-order.html?from=3&prodId=CdUAwZrxlScI&sample=1

16+64G

https://trading.made-in-china.com/start-order.html?from=3&prodId=CwPGhReJfScK&sample=1

16+128G

https://trading.made-in-china.com/start-order.html?from=3&prodId=MwpaYVirHBkG&sample=1


Model: R58 ARMOUR, 8K Ultra HD media player, Arm-based PC and Edge computing device (Real 8K output, 7680*4320, HDMI 2.1, 12Gbps)






* Chipset: Rockchip 3588 (8 nm made chipset, 8 cores CPU, 8EE GPU, 2.4Ghz)

* CPU: Quad-core Cortex-A76 and Quad-core Cortex-A55 with separately NEON

* NPU: 6TOPs supports INT4/INT8/INT16/FP16 hybrid operation

* TensorFlow/MXNet/PyTorch/Caffe can be easily converted

* Memory: 4G DDR, 32G eMMC (Maxium DDR is 16GB)

* Storage: eMMC5.1, SDIO3.0, M.2 PCIE3.0 M-Key, SATA3.0 7pin

* Front panel: USB 3.0, USB2.0 x2, GPIO USB C x2, Power button

* Rear panel: DC input, HDMI input, HDMI 2.1 output, DP output, G-LAN network x2, RS485/RS232

* Dual WiFi antenna 2.4G/5G 2T2R a/b/g/n/ax mimo (Optional WiFi 6)

* Dual G-LAN network 1000Mbps x2

* Video output: HDMI 2.1 (7680*4320) and DP1.4 (Display Port) HDCP2.3

* Camera: MIPI CSI 2Lane

* Industrial connectors: I2C port, GPIO*6, RS232, RS485

* Audio: support MIC and audio jack, 1.25mm 4pin CON

* H.265 and VP9 decoder by 8K@60fps, H.264 decoder by 8K@30fps

* AV1 decoder by 4K@60fps, also support H.264 and H.265 encoder by 8K@30fps

* JPEG-codec support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444

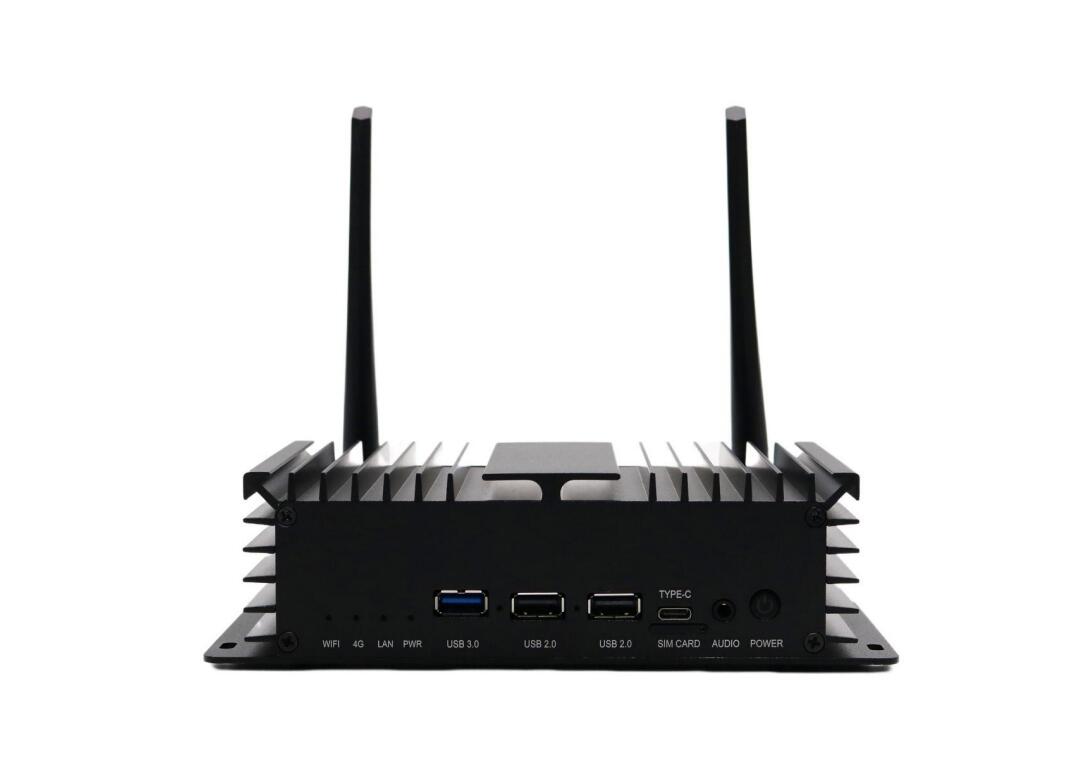

R58 Armour.jpg
