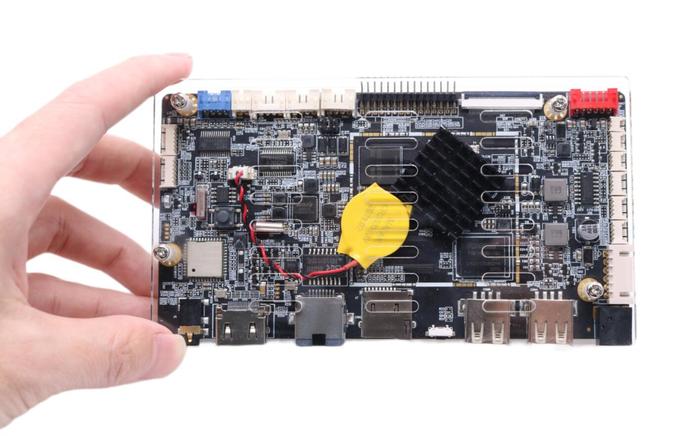

R18 Crystal

ID R18 Crystal
Category ARM PC / Digital Signage
Unit 1pcs
Material Plastic
Color Transparent
Brand Mekotronics
Model R18 Crystal
产品详情

* Model: R18 Crystal

* Chipset: Rockchip 3568 (Quad-core Cortex-A55 up to 2.0GHz)

* Android 11 OS or Debian OS

* Mali-G52 GPU

* 4KP60 H.265/H.264/VP9 video decoder

* 1080P60 H.264/H.265 video encoder

* Dual dislplay, LVDS/MIPI-DSI/RGB/eDp/RGB/HDMI2.0/T-CON

* NPU 0.8 TOPS

* DDR 4G, Flash 32G

* Steel frame housing

* Ultra thin design

* Size: 190*135*20mm

* Outside connectors: Audio, HDMI, RJ45, TF card, USB HOST, DC input

* Inside connectors: GPIO, LVDS, MIPI, EDP, screen back light, RS232
