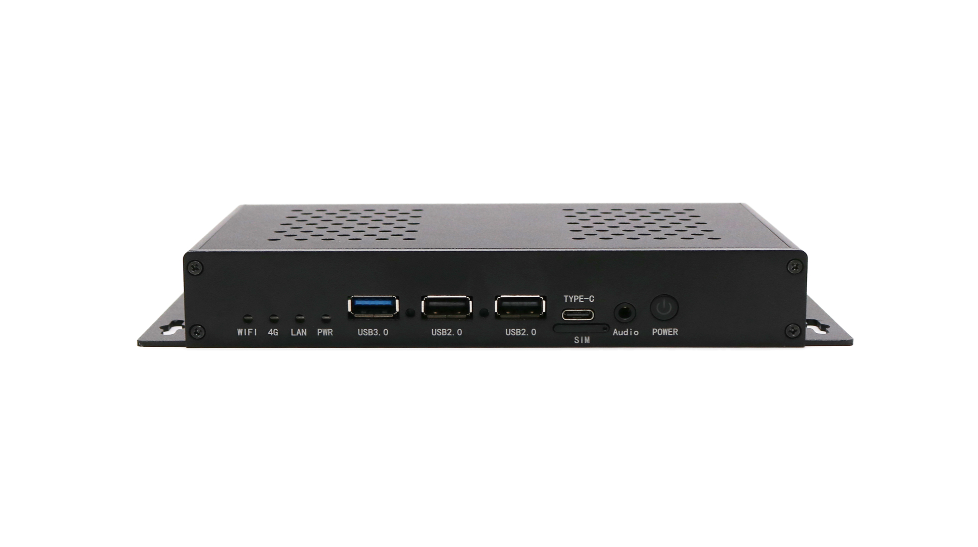

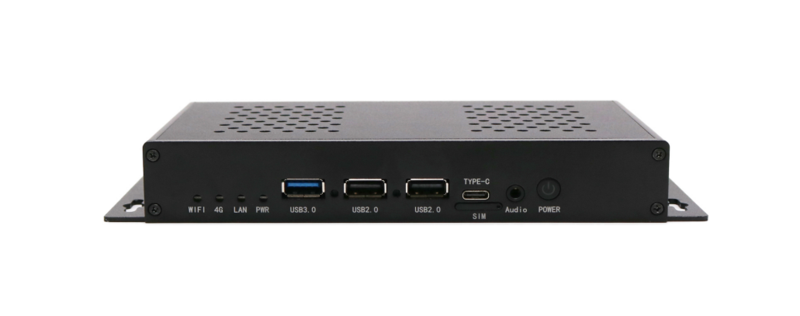

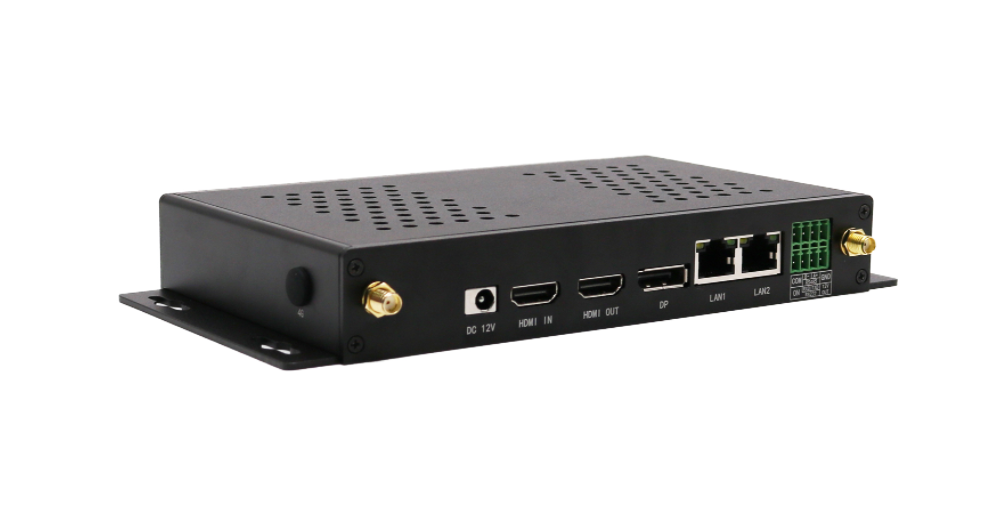

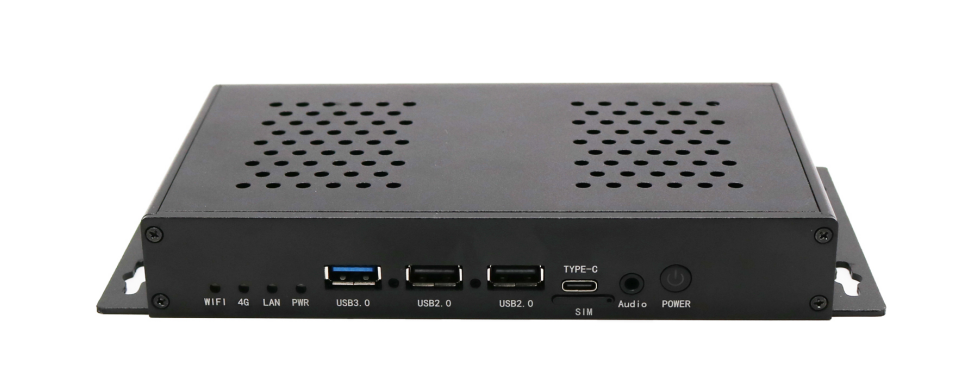

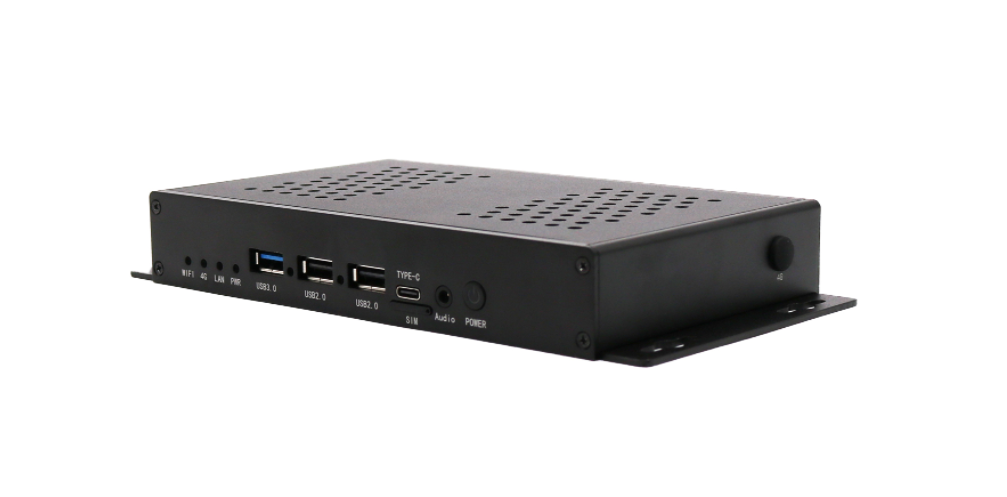

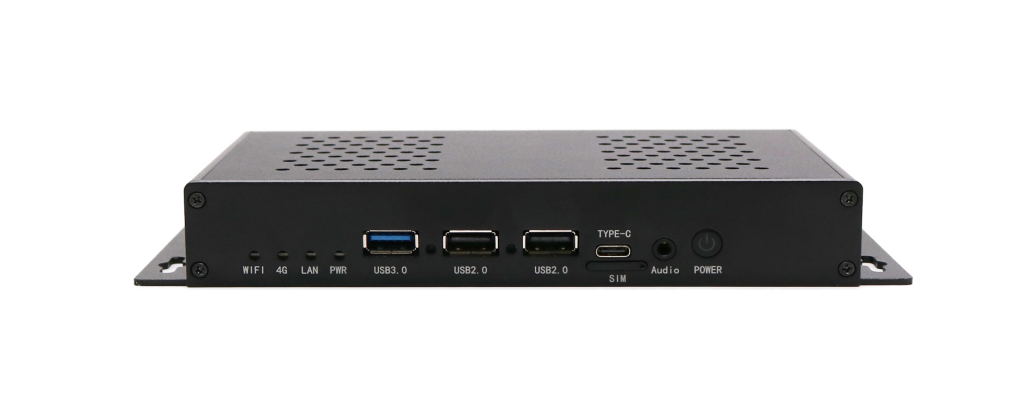

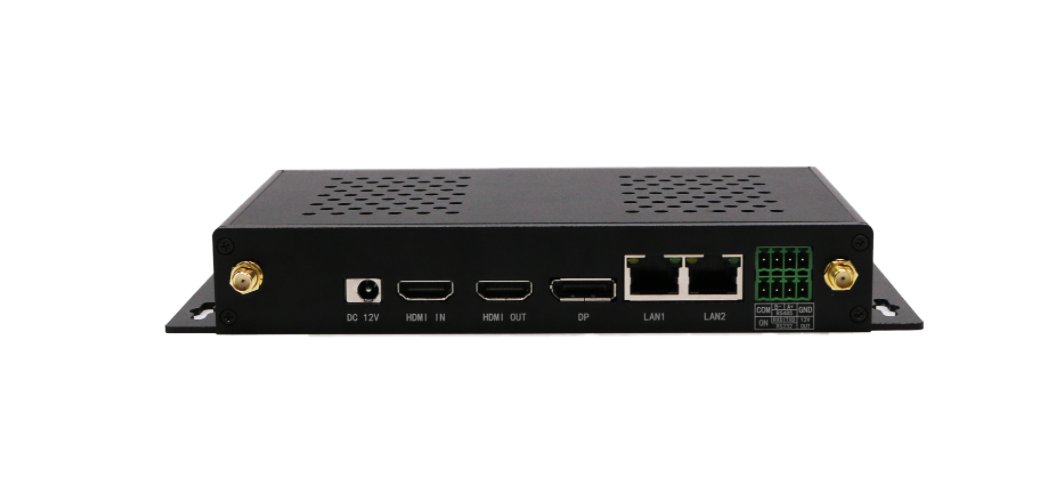

Mekotronics R58X-POE introduction
R58X-POE is using Rockchip RK3588 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A76 and 4 cores of Cortex A55.
With its HDMI2.1 output, the max video output resolution is up to 8K 60Hz (7680*4320 60Hz)
Mekotronics R58X-POE Internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.
The model R58X-POE has diverse interfaces, which can reach three screen display at the same time:
8K screen + 4K screen + 2K screen, or we can do 4K screen + 4k screen + 4K screen at the same time.
With dual Gigabit network ports, R58X-POE is also can be powered by Ethernet. The POE module is 24Wh.
R58X-POE Specification
CPU | Rockchip RK3588, Octa-core (quad-core Cortex A76 and quad-core Cortex A55) |
CPU frequency | Quad-core Cortex A76 @2.4Ghz Quad-core Cortex A55 @1.8Ghz |
GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| Embedded high-performance 2D acceleration hardware |
| 8K 10 bit decoder, 8K encoder |
NPU | 6.0 TOPS NPU |
DDR | LPDDR4X (4G, 8G, 16G optional) |
OS | Android 12, Buildroot, Debian 11, Ubuntu 20.04 |
Internal storage | Support eMMC5.1, SDIO3.0 (32GB, 64GB, 128GB optional) |
Display output | HDMI2.1, max output 8K 60Hz, HDCP2.3 |
| DP1.4, max output 8K 30Hz, HDCP2.3 |
HDMI input | Max input 4K 60Hz |
Camera | Mipi CSI 2 Lane |
Ethernet | Dual G-LAN network 1000Mbps x2; Power over Ethernet, 24Wh POE module |
WiFi | WiFi 6, IEEE 802.11 a/b/g/n/ac/ax MIMO |
Clock | Support RTC clock |
USB | USB3.0, USB2.0, Tpye-C |
SATA | SATA 3.0 (7 pin) |
PCIE | PCIE 3.0 M.2 M-key), support NVMe SSD size 2280 |
Mini PCIe | Mini PCIe for 4G LTE/GPS module |
SIM card slot | Support Nano SIM card for 4G |
Audio | Support MIC and audio jack |
Industrial port | RS232 |
| RS485 |
| I2C |
| GPIO |
DC power | 12V 2Ah (DC port 5.5x2.0) |
R58X-POE operation systems:
Android OS
Debian OS
Buildroot OS
Armbian OS
