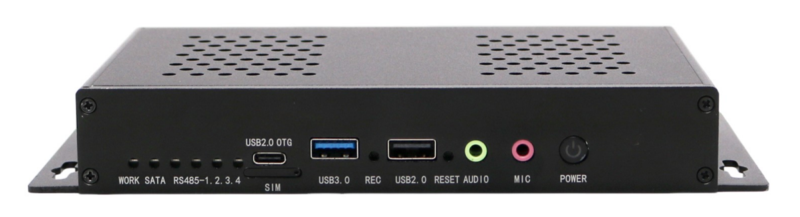

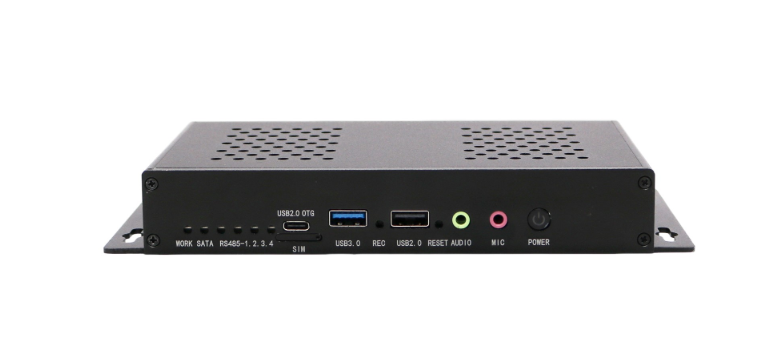

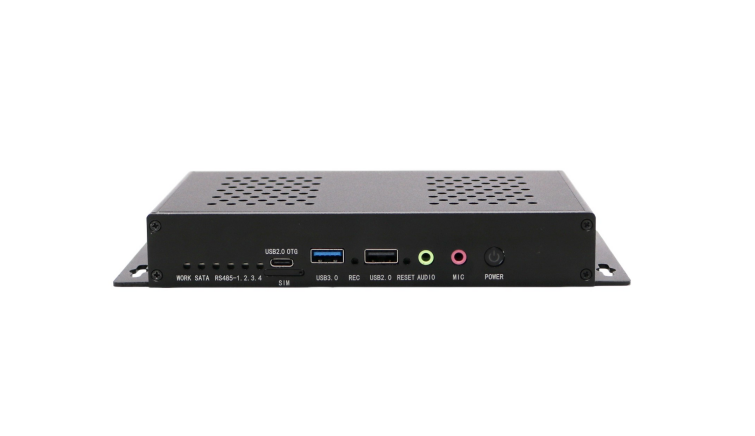

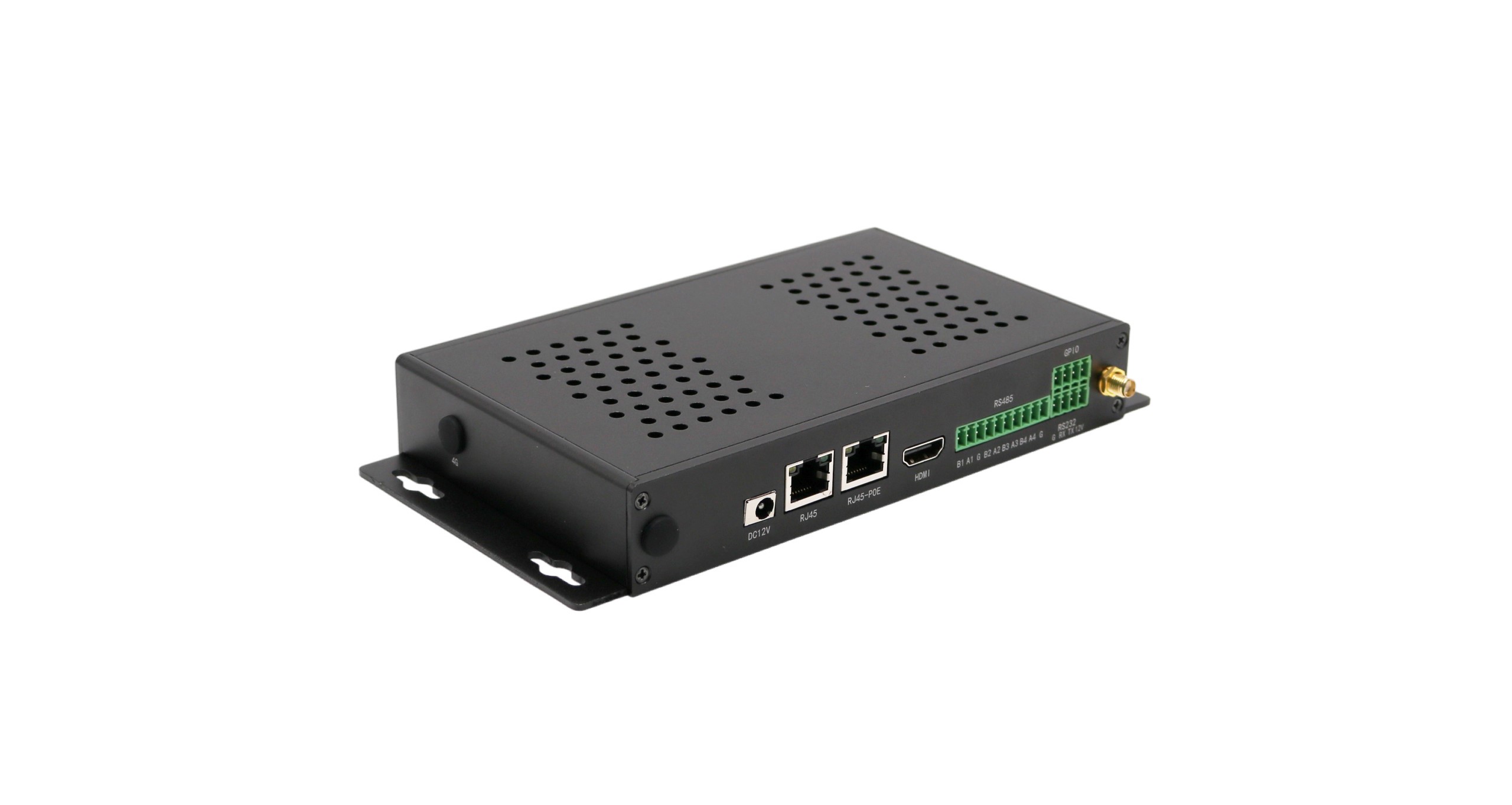

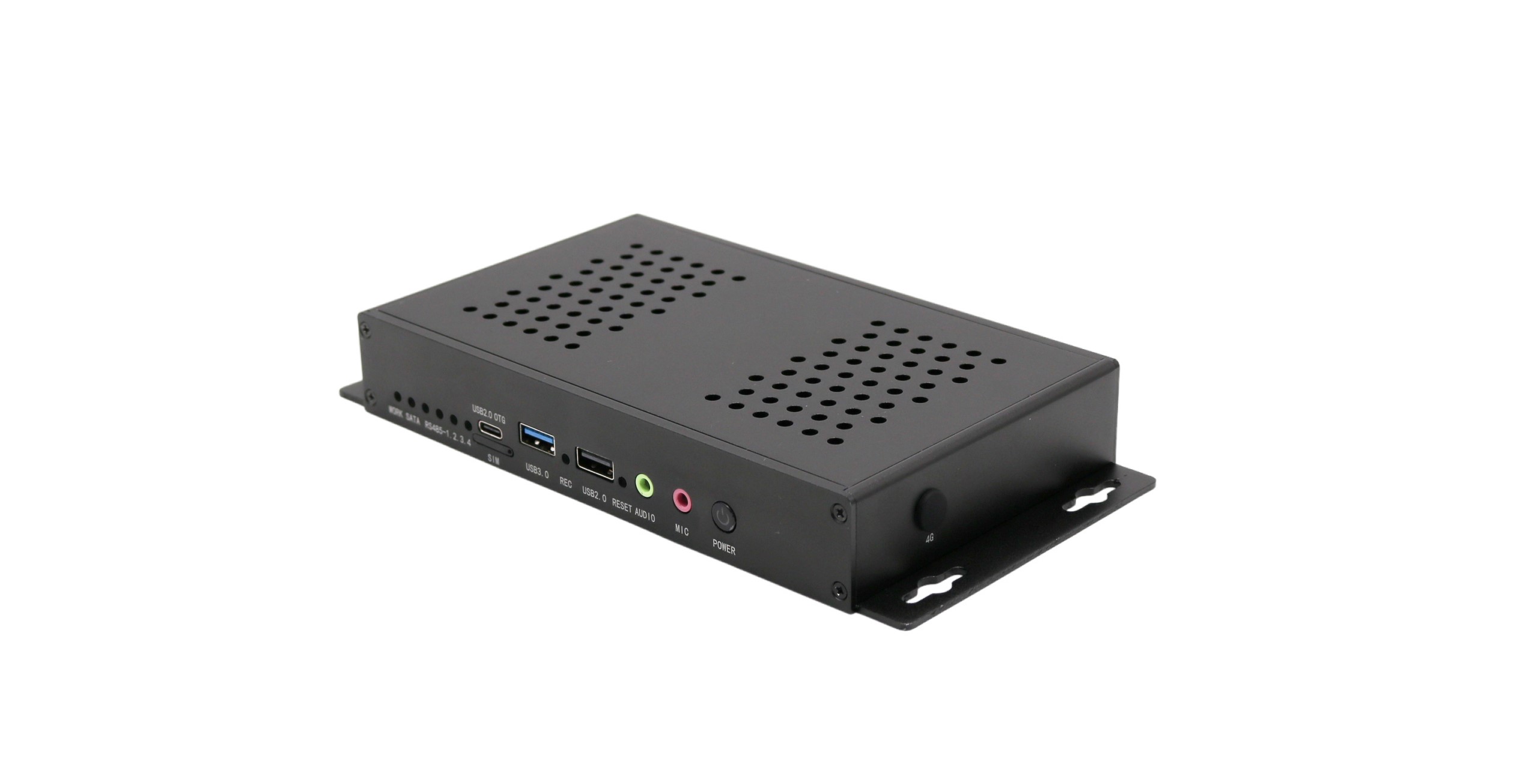

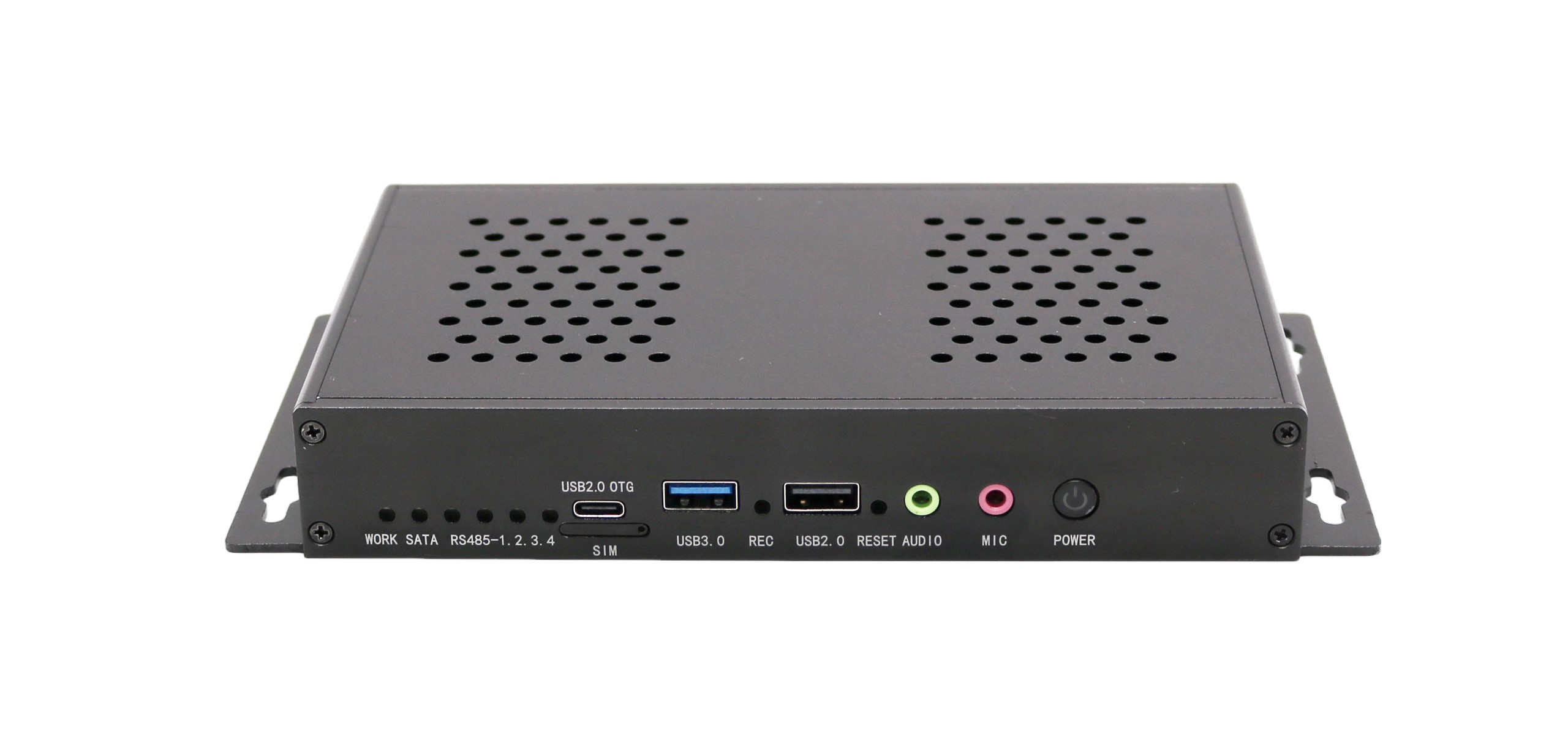

Mekotronics R56-POE is based on Rockchip RK3568 processor with various connectors for different applications in industrial control and digital signage business.
The RK3568 processor has quad-core Cortex-A55 up to 2.0GHz, and its GPU is Mali-G52 GPU. Additionally it is 1TOPS NPU
Mekotronics R56-POE support 4KP60 H.265/H.264/VP9 video decoderand 1080P60 H.264/H.265 video encoder.
Mekotronics R56-POE specification：
Model | R56-POE |
Chipset | Rockchip RK3568 |
CPU | Quad-core Cortex-A55 up to 2.0GHz |
GPU | Mali-G52 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
NPU | 0.8 TOPS |
DDR | LPDDR4 |
Storage | eMMC 5.1 |
Video | 4KP60 H.265/H.264/VP9 video decoder |
USB | USB2.0 OTG, USB3.0, USB2.0 |
Audio | 3.5mm audio port and microphone port |

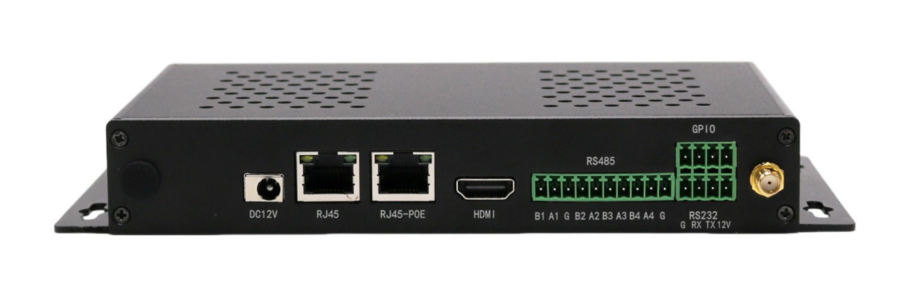

LAN | Dual G-LAN network 1000Mbps x2, and support Power over Ethernet |
Video output | HDMI 2.0 output 4K@60Hz |
RTC | RTC clock |
Industrial connector | RS232, RS485, GPIOx2, I2C, UART TTL |
On board connector | M.2 PCIe and Mini PCIe |
On board connector | Mipi-DSI, LVDS, eDP |
On board connector | SATA 3.0 7 pin |
On board connector | Mipi-CSI for camera |
SIM card | SIM card slot for 4G LTE |
WiFi | 2.4G/5G WiFi, 802.11 a/b/g/n/ac |
Bluetooth | Bluetooth 5.2 |
Power | DC 12V 2Ah |
Size | 208*107*30mm |
