Mekotronics 13500H is based on Intel i5 13500H processor, this is the Intel 13th generation CPU. It has 12 cores CPU, and total 16 threads. The max CPU frequency can go up to 4.7Ghz.
Mekotronics 13500H is with DDR5 5200MT/s.
The integrated GPU is Intel Iris Xe Graphics eligible, and its frequency is up to 1.45Gh. It supports DirectX 12.1, OpenGL 4.6, OpenCL 3.0
Mekotronics 13500H HDMI output 4096*2304@60Hz
Mekotronics 13500H specs
Model | 13500H |
Processor | Intel i5 13500H |
Max speed | CPU max speed 4.7GHz |
GPU | Intel Iris Xe Graphics eligible, 1.45Ghz |
Power consumption | 45Wh |
RAM | DDR5 5200MT/s |
ROM | SSD, M.2 2280 NVME |
BIOS | BIOS support RTC clock, auto turn ON, UEFI |
TPM | CPU integrate TPM, support TPM2.0 |

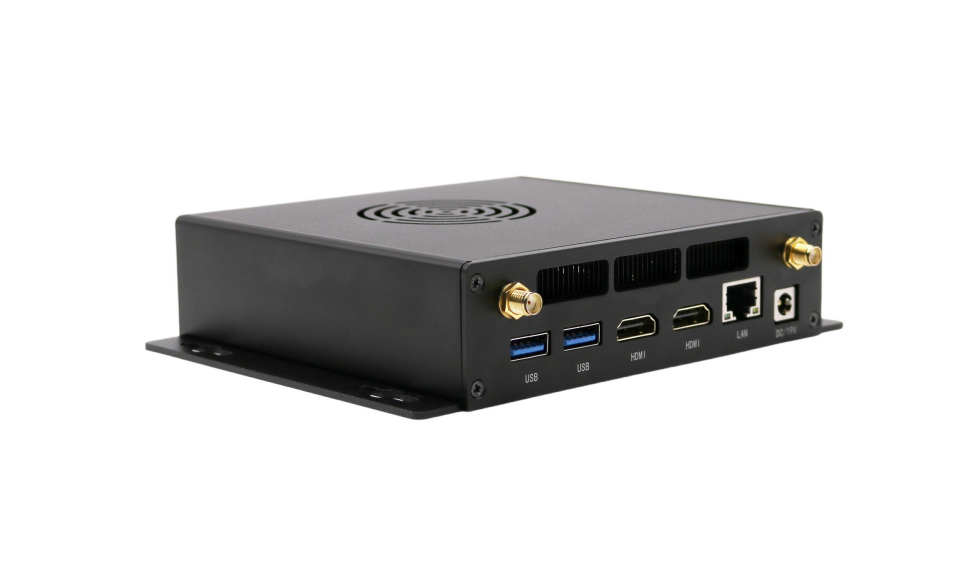

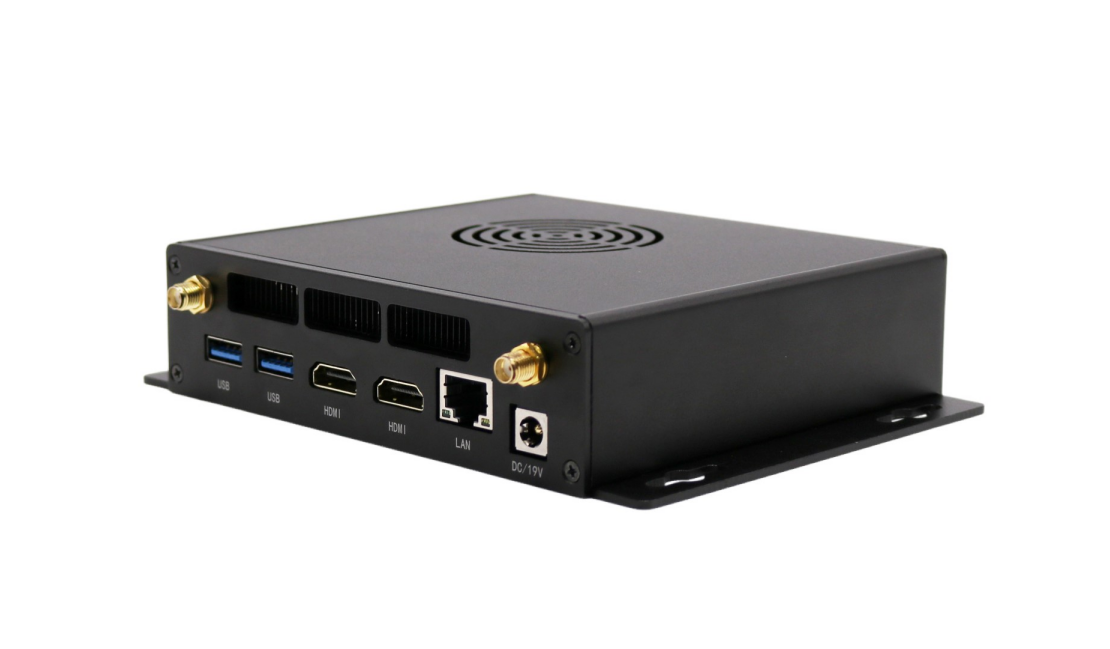

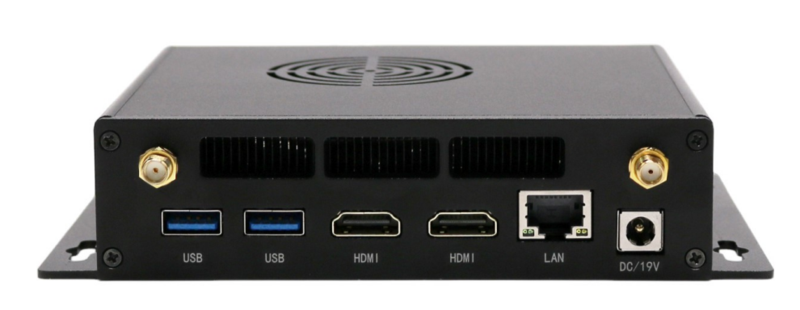

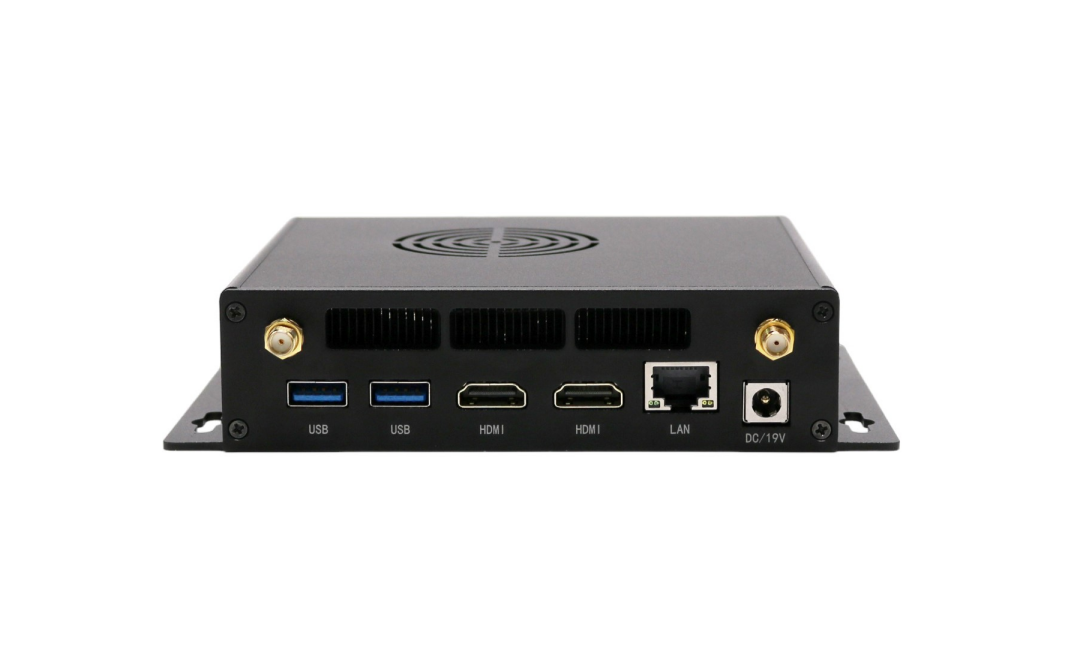

Video output | HDMI x2, max video output: 4096*2304 |
WiFi | 2.4G and 5G WiFi |
Bluetooth | Bluetooth 4.2 |
Ethernet | 1000Mbps G-LAN RJ45 |

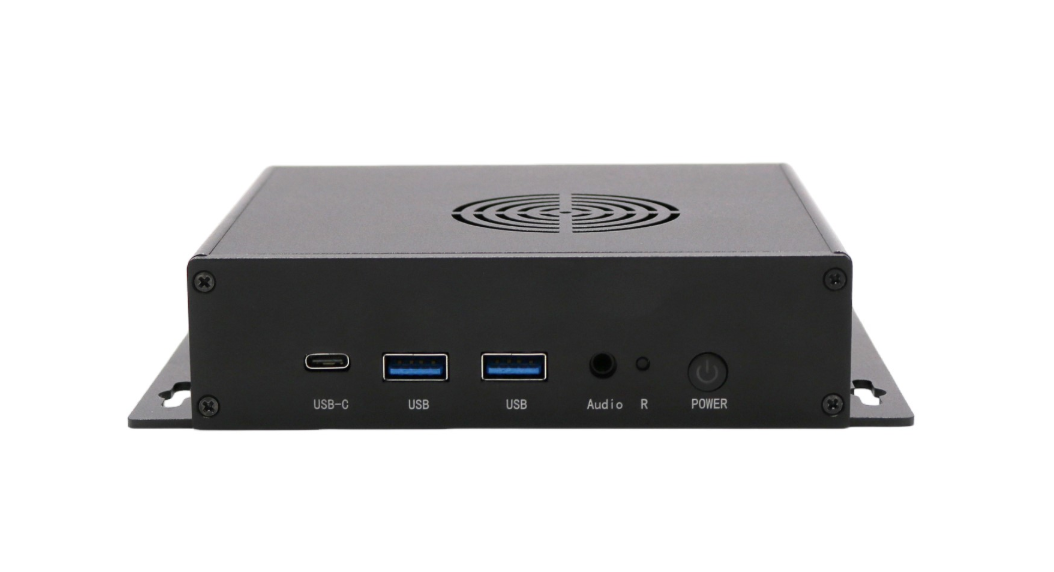

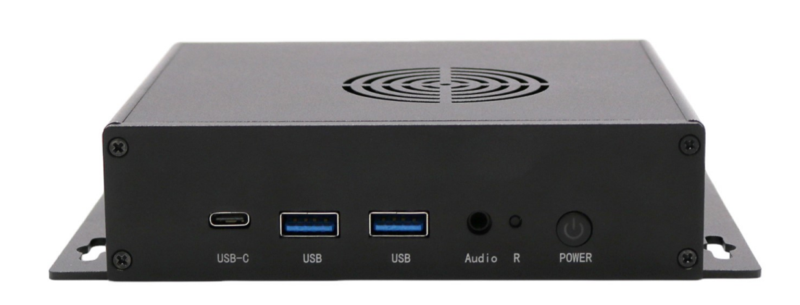

USB HOST | USB 3.0 x4 |
USB type-C | Type-C x1 |
Audio port | 3.5mm audio |
DC power | DC power 19V 3.42Ah 64.98Wh |
Environment temp | 32~104°F |
CPU max temp | 194°F |
Product size | 162*134*44mm |
Product weight | 615g |
