R58 Mini PC Alunimium

ID R58 Mini PC Alunimium
Category ARM PC / Digital Signage
Unit 1pcs
Material Aluminium housing
Color Black
Brand Mekotronics
Model R58 Mini PC Alunimium
产品详情

To order 1pcs with different configurations:

4+32G

https://trading.made-in-china.com/start-order.html?from=3&prodId=zEJUheuxWmWA&sample=1

8+64G

https://trading.made-in-china.com/start-order.html?from=3&prodId=BdwGSQvUSOkP&sample=1

16+64G

https://trading.made-in-china.com/start-order.html?from=3&prodId=wJLprRYvsmVM&sample=1



Mekotronics R58 Mini PC Aluminium enclosure, Rockchip RK3588

* Mekotronics R58 Mini-PC Aluminium Enclosure:


* SoC – Rockchip RK3588 octa-core processor

* Four Cortex-A76 cores @ 2.4 GHz, four Cortex-A55 cores @ 1.8 GHz

* Arm Mali-G610 MP4 GPU

* 6TOPS NPU

* 8K 10-bit decoder, 8K encoder

* Memory & eMMC flash configurations

4GB LPDDR4x + 32GB eMMC flash

8GB LPDDR4x + 64GB eMMC flash

16GB LPDDR4x + 64GB eMMC flash

* Storage expansion – 1x SATA

* Video Output

2x HDMI 2.1 ports up to 8Kp60

1x DisplayPort up to 8Kp60

DisplayPort via USB-C port

Up to four independent display

* Video Input – 1x HDMI 2.0 port

* VPU (in SoC)

* Video Decoder

8Kp60 H.265 VP9, AVS2

8Kp30 H.264 AVC/MVC

4Kp60 AVI

1080p60 MPEG-2, MPEG-1, VC-1, VP8

* Video Encoder – Real-time H.265/H.264 video encoding up to 8Kp30, also usable as a multi-channel encoder in parallel (at lower resolution)

* Networking

1x Gigabit Ethernet RJ45 port

Dual-band Wi-Fi 6 (2T2R) and Bluetooth 5.0 via Ampak AP6275P module plus 2x antenna connectors

* USB – 1x USB 3.0 Type-A port, 2x USB 2.0 Type-A ports, 1x USB Type-C port with DisplayPort Alt. mode support

* Expansion – 2x 5-pin GPIO headers, 2x serial port headers

* Misc – Power switch, recovery button, reset button, RTC + CR2032 battery, IR receiver

* Power Supply – 12V DC via power barrel jack

* Dimensions – 150*110*30mm

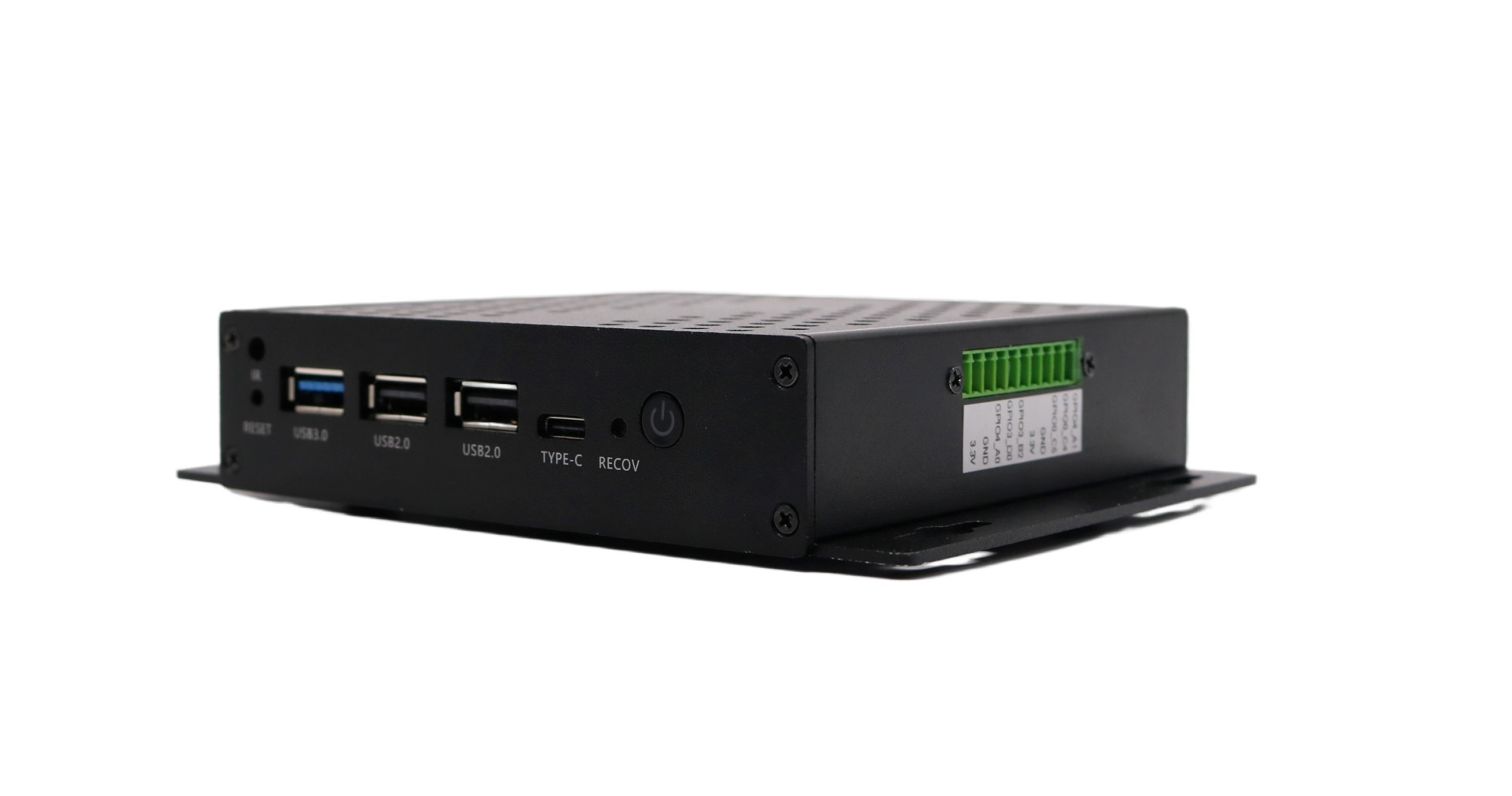

Rear panel, front panel and left-side panel:




* R58 Mini-PC PCBA main board:

R58 Mini-PC connectors.jpg

As usual, the R58 Mini PC has HDMI 2.1 output, so the max video resolution is 7680*4320, and max we can have three/four video output at the same time: HDMI x2, DP x1, Type-C x1

And following is some video codecs specs from Rockchip RK3588

H.265, VP9 decoded by 8K@60Hz, H.264 decoder by 8K@30Hz

AV1 decoder by 4K@60Hz, also support H.264 and H.265 encoder by 8K@30Hz

JPEG codec support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444




By the way, for our RK3588, R58 Mini PC, we also developed four different operation systems:

Android 12, Debian 11, Buildroot and Ubuntu 20.04

We can provide you all the tools and firmware you need for your development.

Android 12 OS:



Debian 11 OS:



Debian 03.jpg


Ubuntu 20.04

Ubuntu 01.jpg




Buildroot

Buildroot 02.jpg


And for more testings and video you can watch the from our Youtube channel:

https://www.youtube.com/channel/UCyPB5ApKW4SteQ-bzkYMCIg


One more thing, if you or your company have any ideas, or any algorithms, or projects need to be discussed or support, please do keep us informed, or send email to us at mike@mekotronics.com maybe together we can work something out together. RK3588 is a very promising chipset, such as Arm-PC, 8K UHD, or 6 TOPS NPU, or VR virtual reality, machine learning, cloud server, and hopefully together we can make a great use of this chipset and build a sort of affordable devices for all of us. Thank you!


Thank you all, and we wish we can try the best to provide the suitable hardware for all your development and work together. Especially at these special period of times, we wish everyone well, safe, healthy!
