Mekotronics R56 RK3568 embedded PC

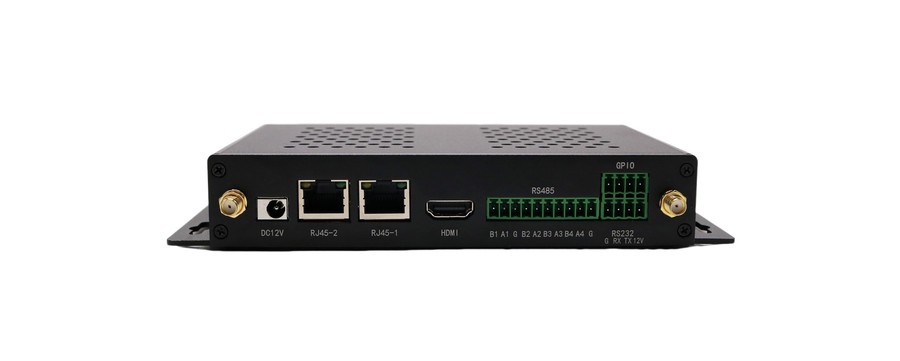

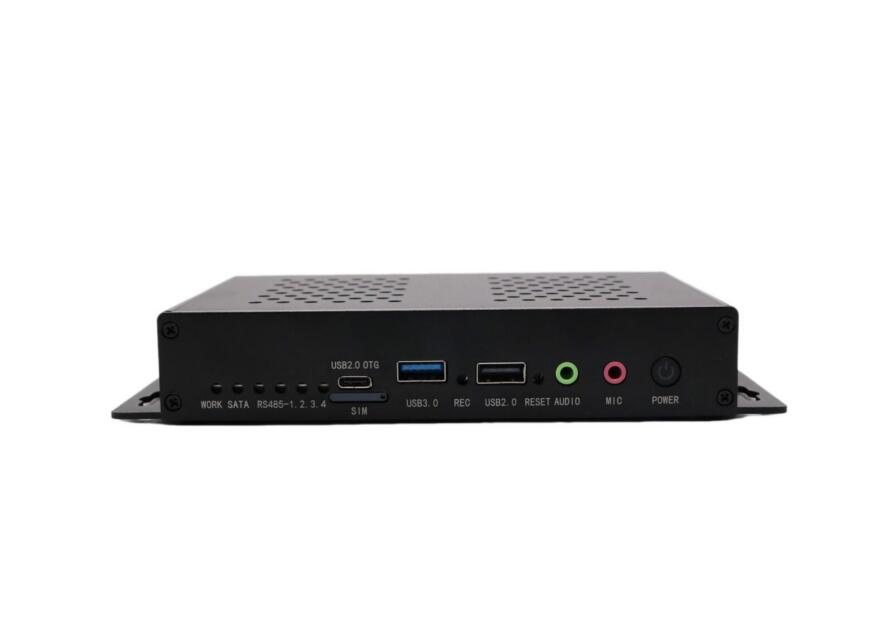

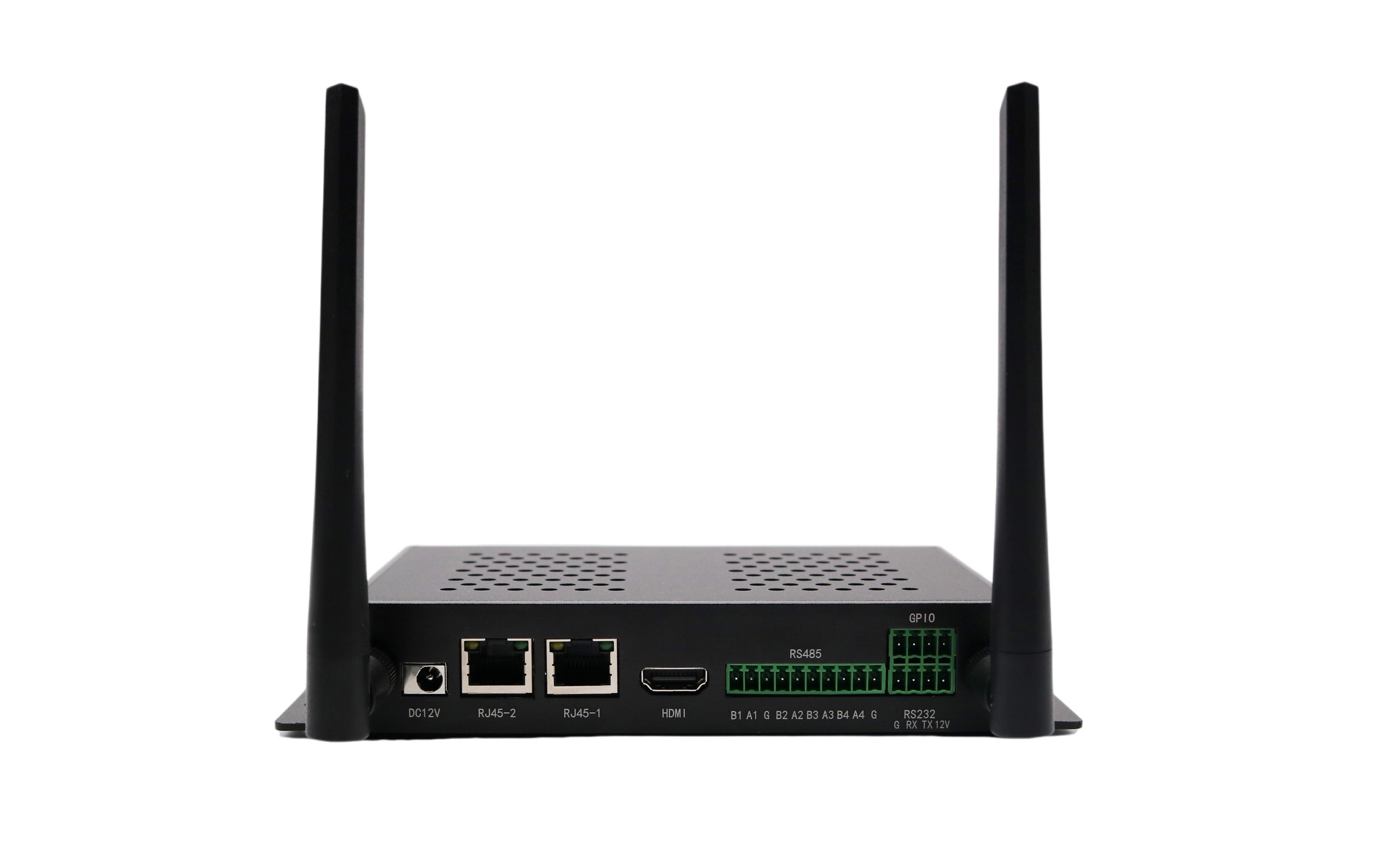

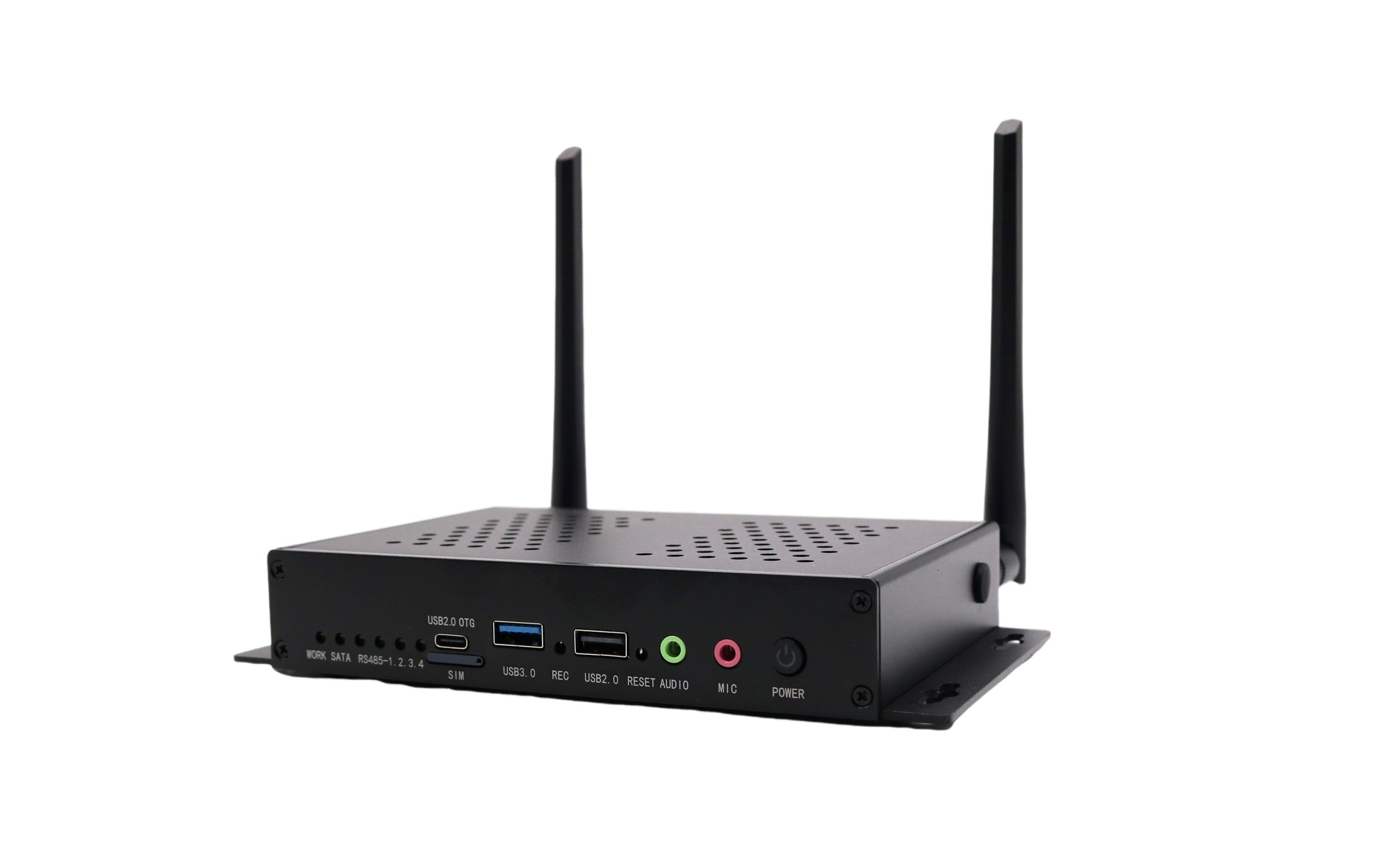

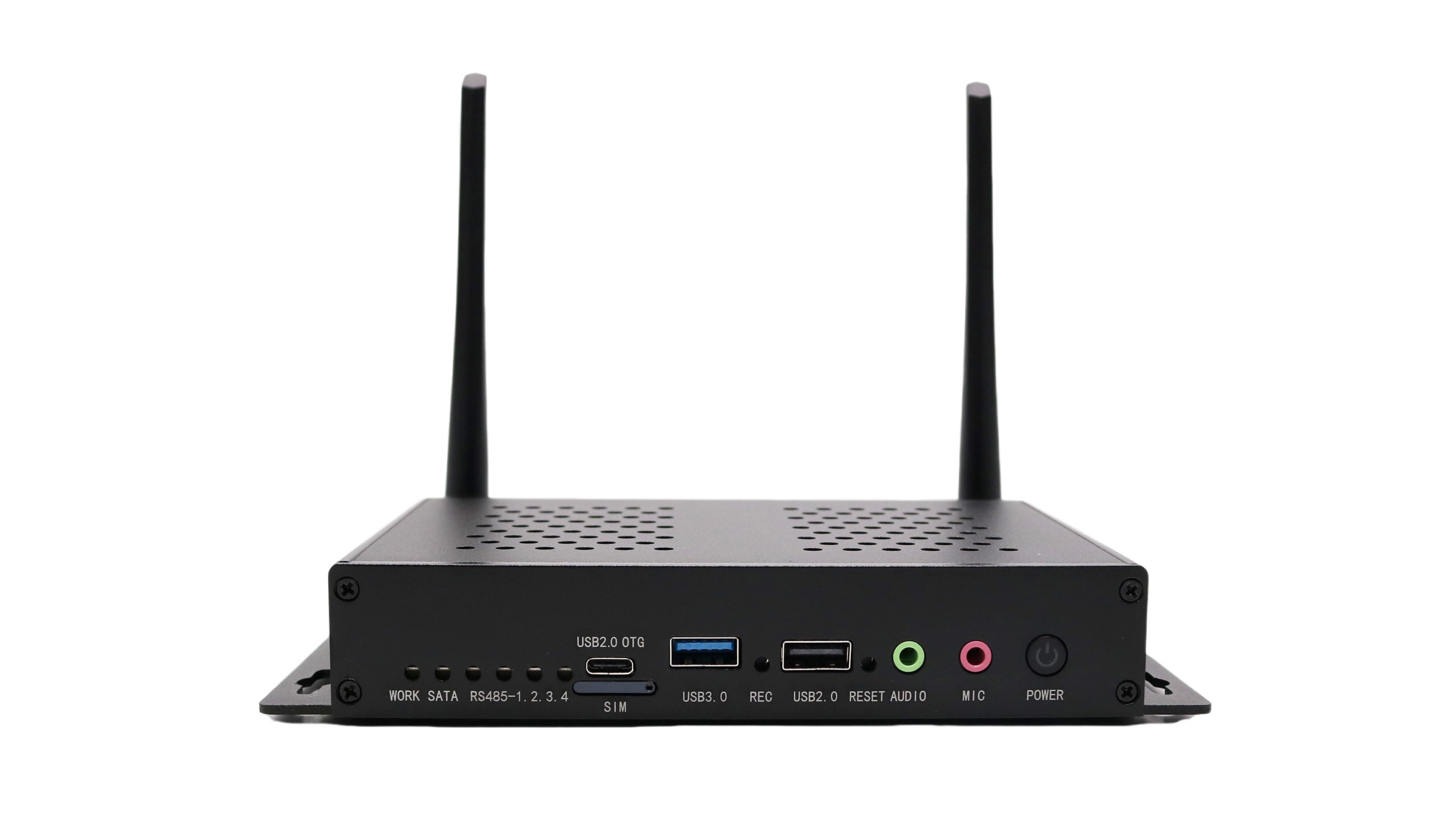

Mekotronics R56 has versatile connectors and interfaces such as, RS485, GPIO, dual Gigabyte network, HDMI output, and USB 3.0, 2.0 and Type-C
Here is Mekotronics detail specification list:
Model | R56 |
Chipset | Rockchip RK3568 |
CPU | Quad-core Cortex-A55 up to 2.0GHz |
GPU | Mali-G52 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
NPU | 0.8 TOPS |
DDR | LPDDR4 |
Storage | eMMC 5.1 |
Video | 4KP60 H.265/H.264/VP9 video decoder |
USB | USB2.0 OTG, USB3.0, USB2.0 |
Audio | 3.5mm audio port and microphone port |
LAN | Dual G-LAN network 1000Mbps x2 |
Video output | HDMI 2.0 output 4K@60Hz |
RTC | RTC clock |
Industrial connector | RS232, RS485, GPIOx2, I2C, UART TTL |
On board connector | M.2 PCIe and Mini PCIe |
On board connector | Mipi-DSI, LVDS, eDP |
On board connector | SATA 3.0 7 pin |
On board connector | Mipi-CSI for camera |
SIM card | SIM card slot for 4G LTE |
WiFi | 2.4G/5G WiFi, 802.11 a/b/g/n/ac |
Bluetooth | Bluetooth 5.2 |
Power | DC 12V 2Ah |
Size | 186*107*30mm |
Mekotronics R56 also runs with different operation systems such as Android, Debian, Buildroot and Openwrt.
(1) Android OS

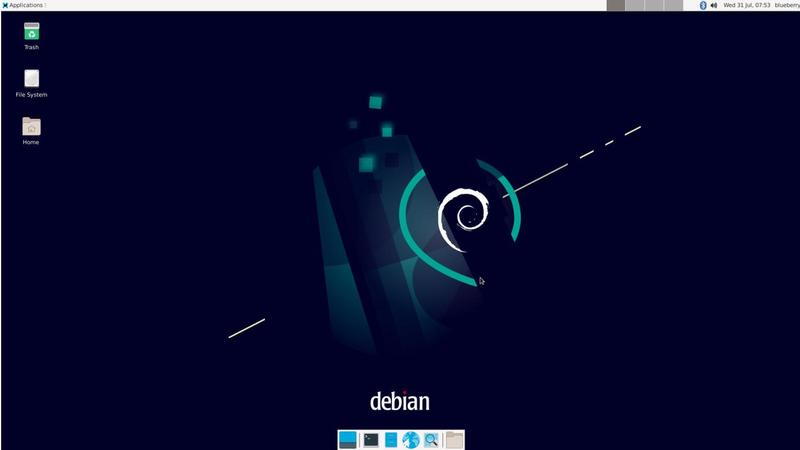

(2) Debian OS

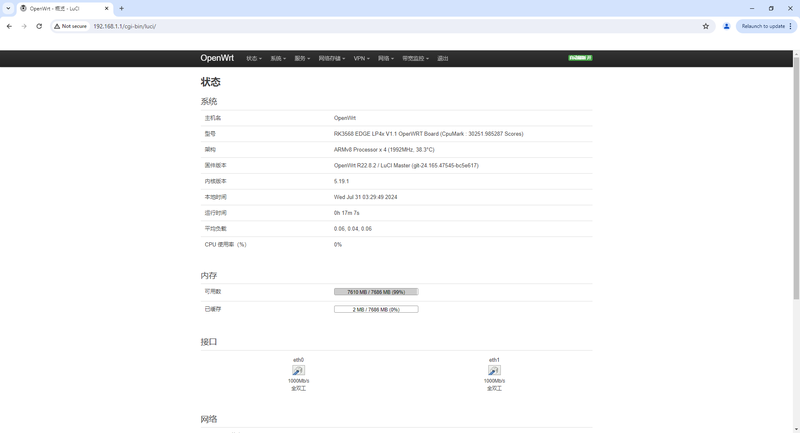

(3) Openwrt OS
