Mekotronics R56-19 inch review video at Youtube:
https://youtu.be/DNm71O9mHzM?si=0lFv-uSVCbpRhKXE

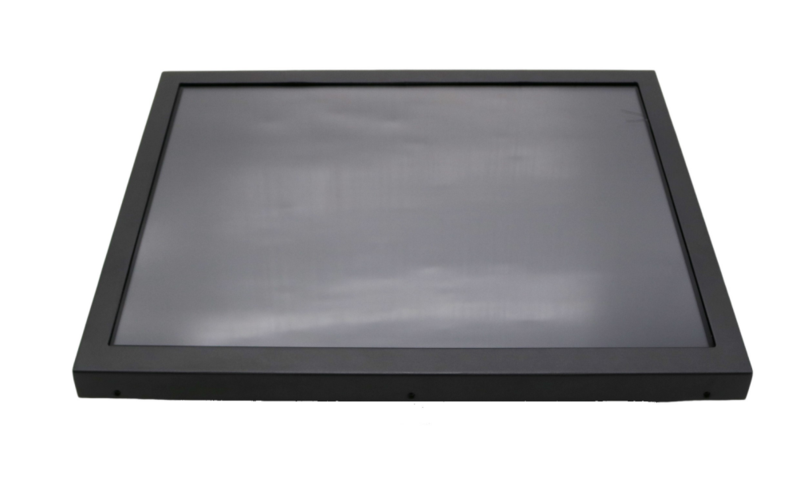

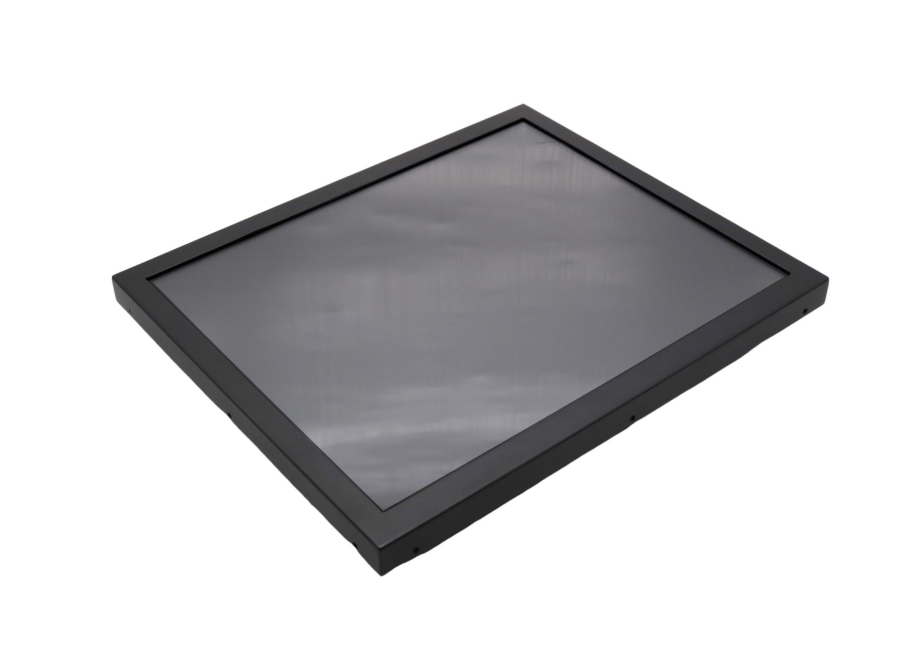

Mekotronics R56-19 inch is a 19 inch square-shape touch panel Android smart display, the main processor is Rockchip RK3588, Quad-core Cortex-A55 up to 2.0GHz
The model is with 19 inch touch panel display (AUO-G190ETN01.0), and its pixel is 1280(x3) x 1024, and 16.7M colors (RGB 6-bits + HiFRC data)
And the screen diagonal is 482.6 (19.0"), Active Area 376.32 (H) x 301.06 (V), and the white luminance is 350 (center, Typ) @60.0mA

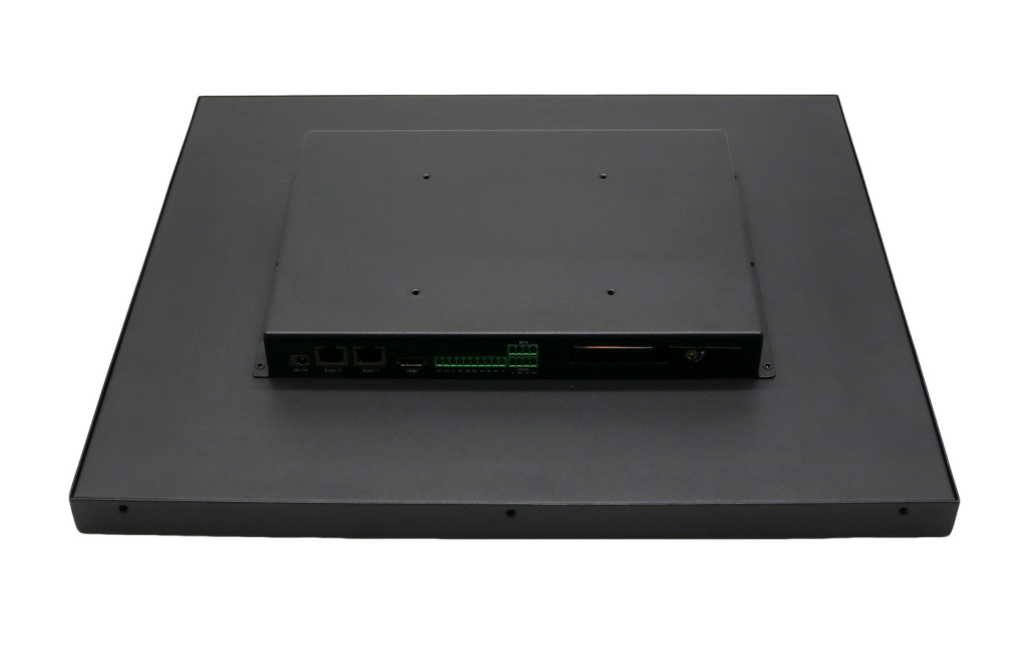

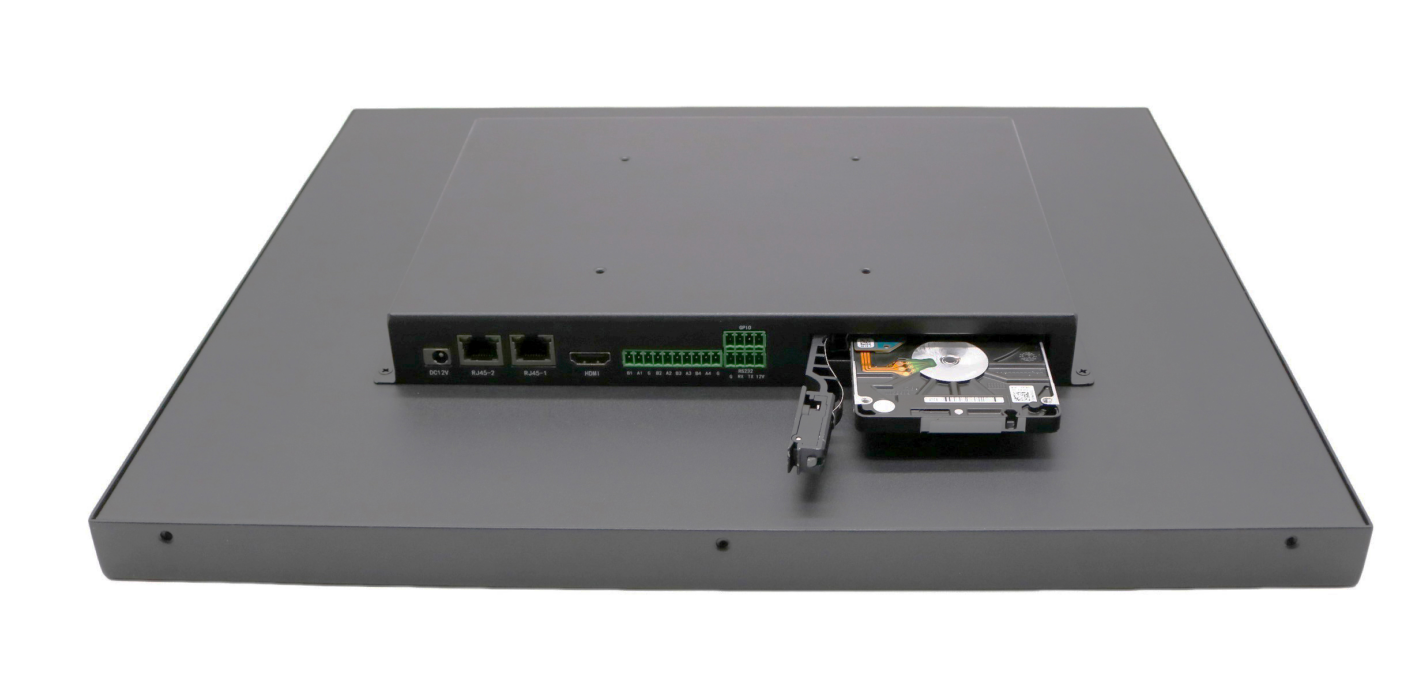

Mekotronics R56-19 inch is designed for industrial use, with fully metal chasis and detachable 2.5" Hard Drive slot.
Model | R56-19 industrial |
Chipset | Rockchip RK3568 |
CPU | Quad-core Cortex-A55 up to 2.0GHz |
GPU | Mali-G52 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
NPU | 0.8 TOPS |
Screen panel | 19 inch touch panel display (AUO-G190ETN01.0) |
Pixels H x V | 1280(x3) x 1024, and 16.7M colors (RGB 6-bits + HiFRC data) |
Screen Diagonal | 482.6 (19.0") |
Active Area | 376.32 (H) x 301.06 (V) |
White Luminance | 350 (center, Typ) @60.0mA |
Contrast Ratio | 1000 : 1 (Typ) |
Viewing Angle | 85/85/80/80 |
Chasis | Industrial metal chasis with vesa mount |
DDR | LPDDR4 |
Storage | eMMC 5.1 |
Video | 4KP60 H.265/H.264/VP9 video decoder |
USB | USB2.0 OTG, USB3.0, USB2.0 |
Audio | 3.5mm audio port and microphone port |
LAN | Dual G-LAN network 1000Mbps x2 |
Video output | HDMI 2.0 output 4K@60Hz |
RTC | RTC clock |
Industrial connector | RS232, RS485, GPIOx2, I2C, UART TTL |
On board connector | M.2 PCIe and Mini PCIe |
Hard drive disk | 2.5 inch HDD with SATA 3.0 7 pin |
SIM card | SIM card slot for 4G LTE |
WiFi | 2.4G/5G WiFi, 802.11 a/b/g/n/ac |
Bluetooth | Bluetooth 5.2 |
Power | DC 12V 3Ah |
Size | 420*350*60mm |
