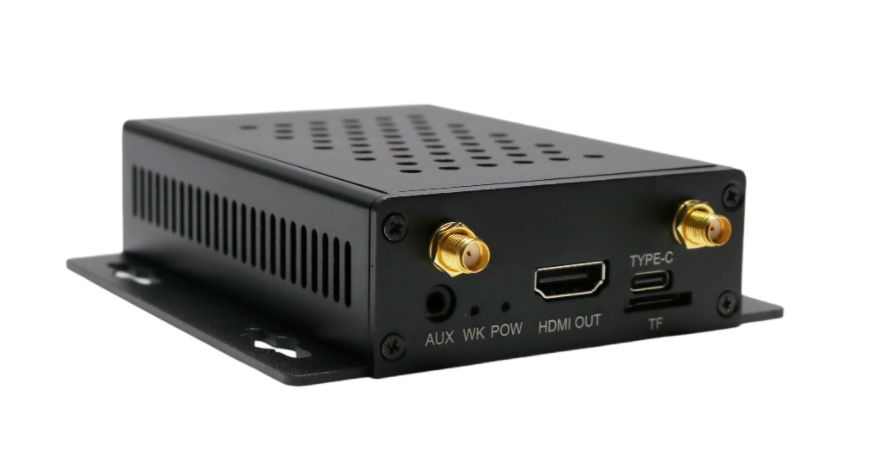

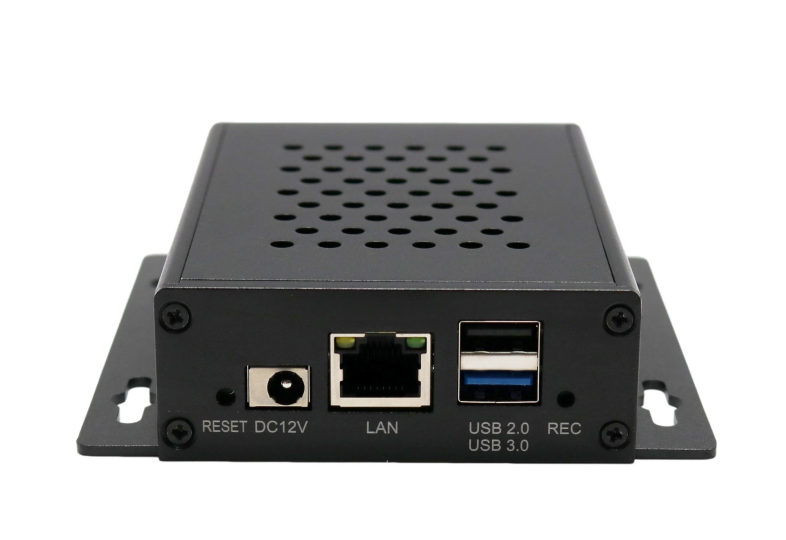

Mekotronics R58S is based on Rockchip RK3588S processor. The CPU is 4 cores A76, 4 cores A55, and its GPU Mali-G610 MP4
The model R58S has 6 TOPS NPU for AI applications.
R58S RAM is LPDDR4X and ROM is eMMC5
The HDMI output can be up to 8K@60Hz, 7680*4320

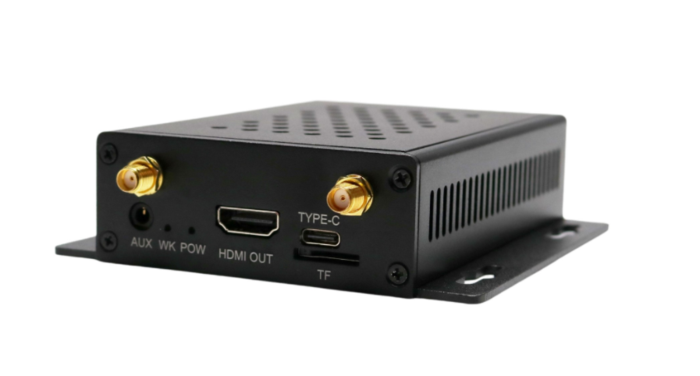

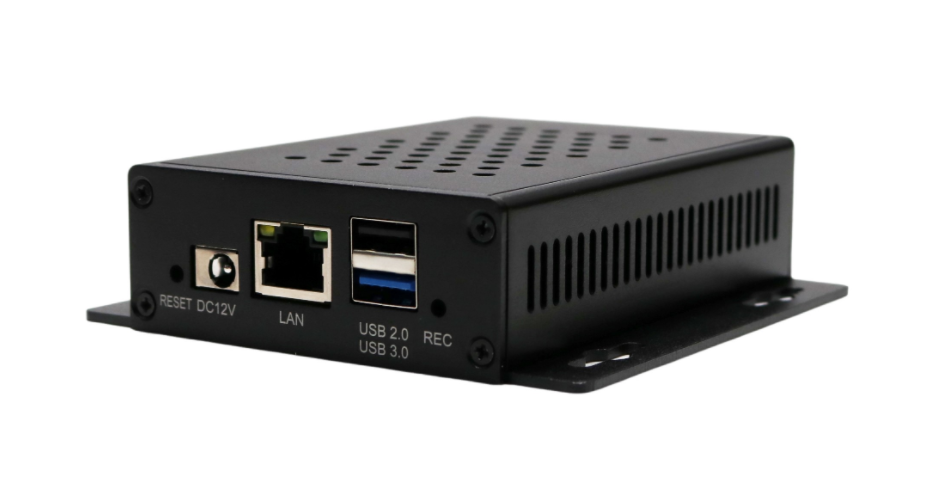

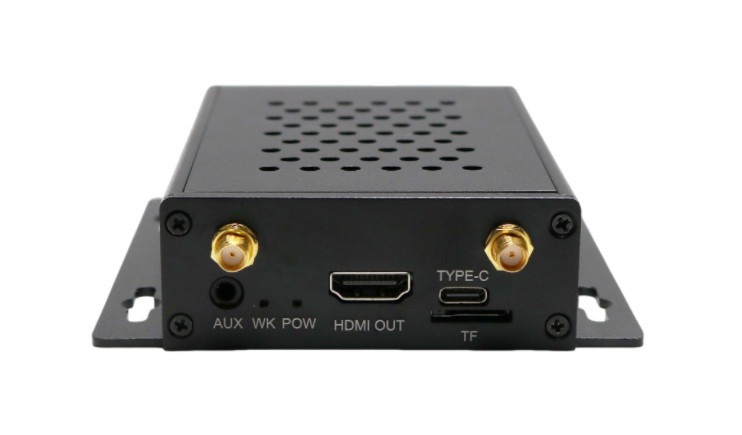

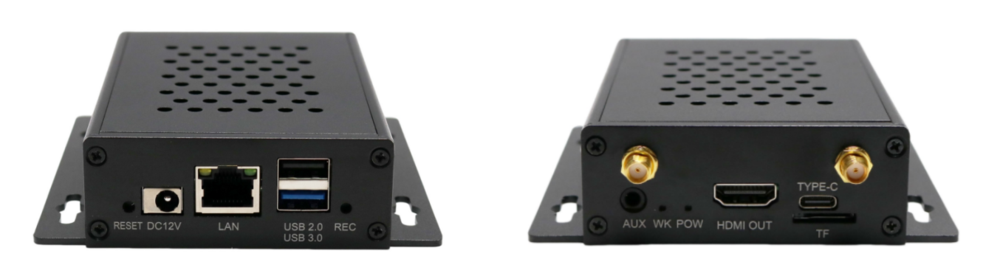

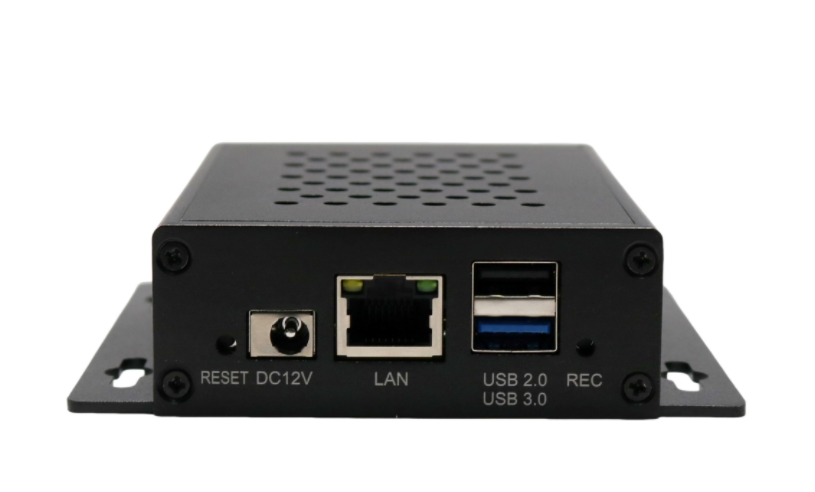

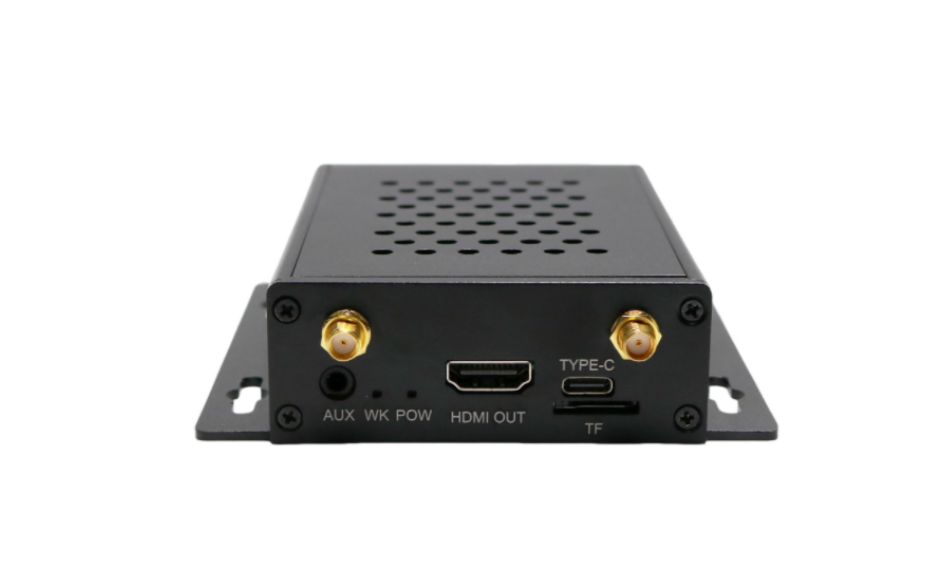

Mekotronics R58S is very compatible design, and with all the outstanding features such as WiFi 6, bluetooth, G-LAN network USB 3.0, Type-C and Micro SD card slot.
Mekotronics R58S specs table
Model | R58S |
CPU name | RK3588S |
CPU cores | 4 cores A76, 4 cores A55 |
GPU | Mali-G610 MP4 |
NPU | 6 TOPS |
RAM | LPDDR4X 4G |
ROM | EMMC 32G |
Output resolution | 7680*4320 @ 60Hz |
LAN 1 | 1000Mbps |
WiFi | WiFi 6 |
Bluetooth | Bluetooth 5 |
video out 1 | HDMI output |
USB 2.0 | USB 2.0 x1 |
USB 3.0 | USB 3.0 x1 |
TypeC | Type-C x1 |
Card slot 1 | Micro SD card slot |
PCBA size | 106*66*18mm |
Product size | 110*78*30mm |
OS 1 | Android |
OS 2 | Debian |
OS 3 | Buildroot |
Mekotronics R58S operation systems:
(1) Android

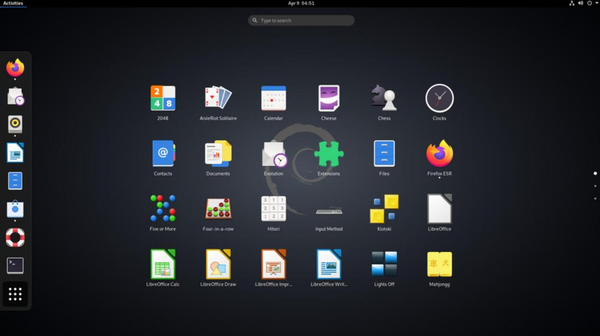

(2) Debian
(3) Buildroot

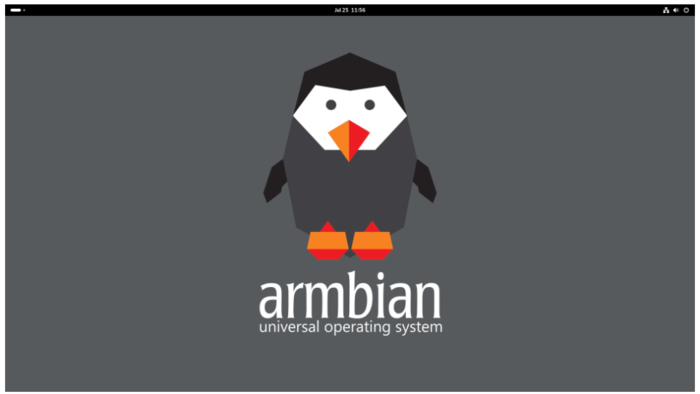

(4) Armbian
