Mekotronics R58S2 is the latest embedded mini pc based on Arm64, Rockchip RK3588S2.
RK3588S2 is a 8 cores processor with 4 cores A76 and 4 cores A55. Its integrated GPU is Mali G610, and supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2.
Also R58S2 has 6 TOPS NPU for AI (Artificial Intelligence) applications.
R58S2 specification table:
Model | R58S2 |
Processor | Rockchip RK3588S2 |
CPU | 8 cores CPU 2.4Ghz, 4 cores A76 and 4 cores A55, |
GPU | Mali G610, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
NPU | 6.0 TOPS NPU |
DDR | LPDDR5X |
HDMI output | 8K@60Hz |
Type-C | 4K@60Hz (DP 1.4 protocol) |
Mipi | Mipi DSI*2 4 Lane |
Camera | Mipi CSI 4 Lane*2 |
OS | Android, Debian, Buildroot, Ubuntu |
Memory | eMMC5.1 |
LAN | 1000Mbps |
WiFi 5 | 802.11 a/b/g/n/ac |
Clock | RTC, 2-pin, 1.25mm |
USB | USB3.1 HOST type-A, 1.5Gbps |
USB | USB3.1 OTG type-C, 1.5Gbps |
USB | USB2.0 HOST type-A, 480Mbps |
PCIE | PCIE 2.0 M.2 M-key 5Gbps |
Audio | Support MIC and audio port 3.5mm |
MIC*6 | Microphone *6 |
AEC | AEC *2 |
FAN | Fan*1, 12V fan/ 5V fan 1.25mm 3pin |
Industrail port | UART TTL 3.3V*3 |
Industrail port | I2C 3.3V*2 |
Industrail port | PWM*5 |
Industrail port | GPIO*15 |
DC power | 12V 2Ah |

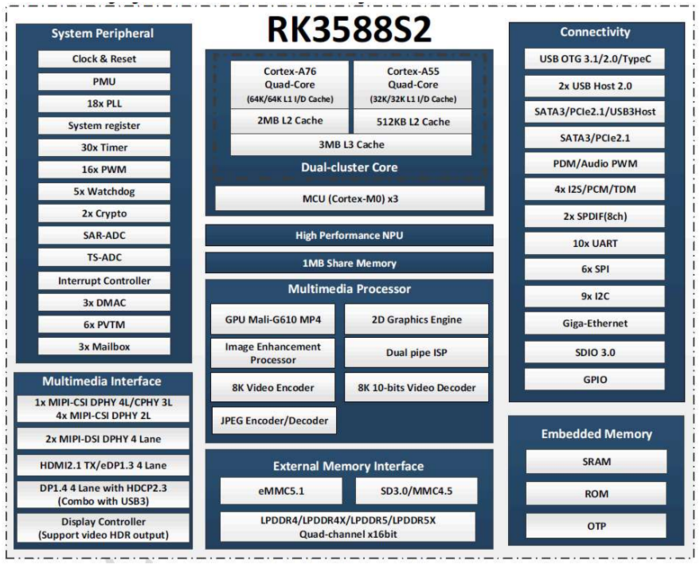

Rockchip RK3588S2 Processor diagram

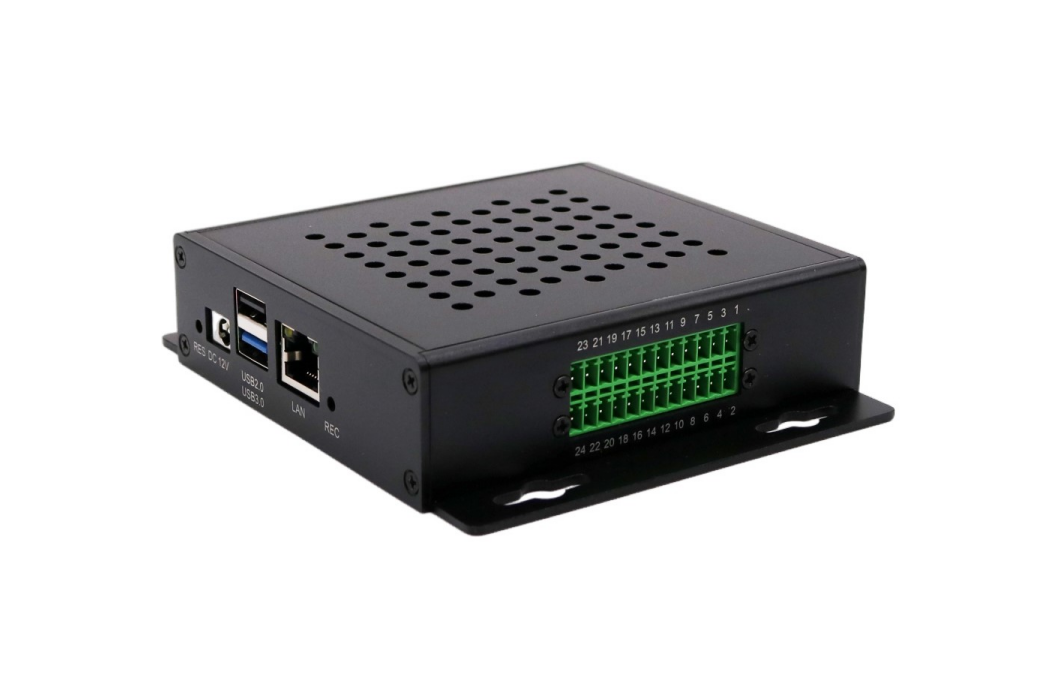

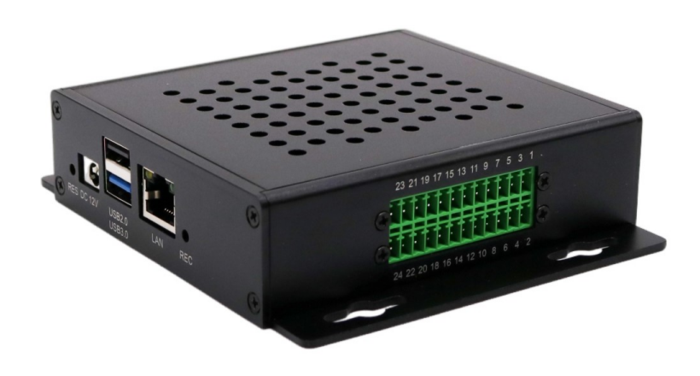

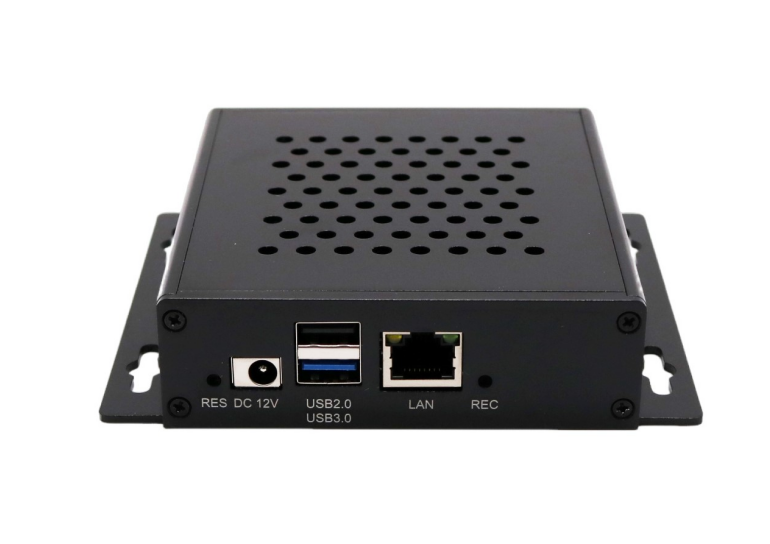

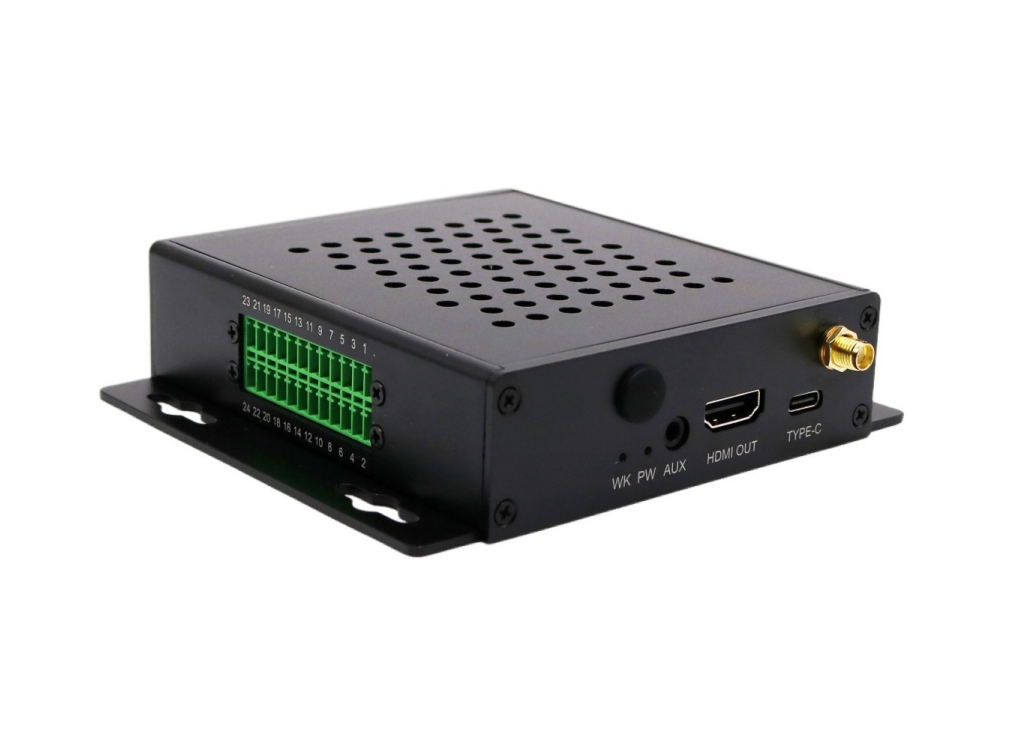

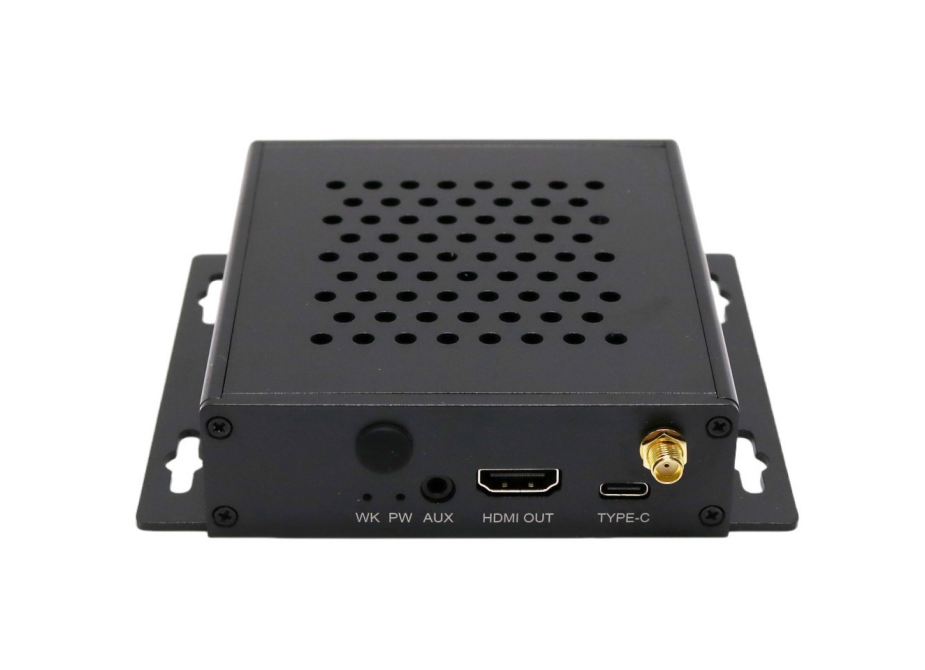

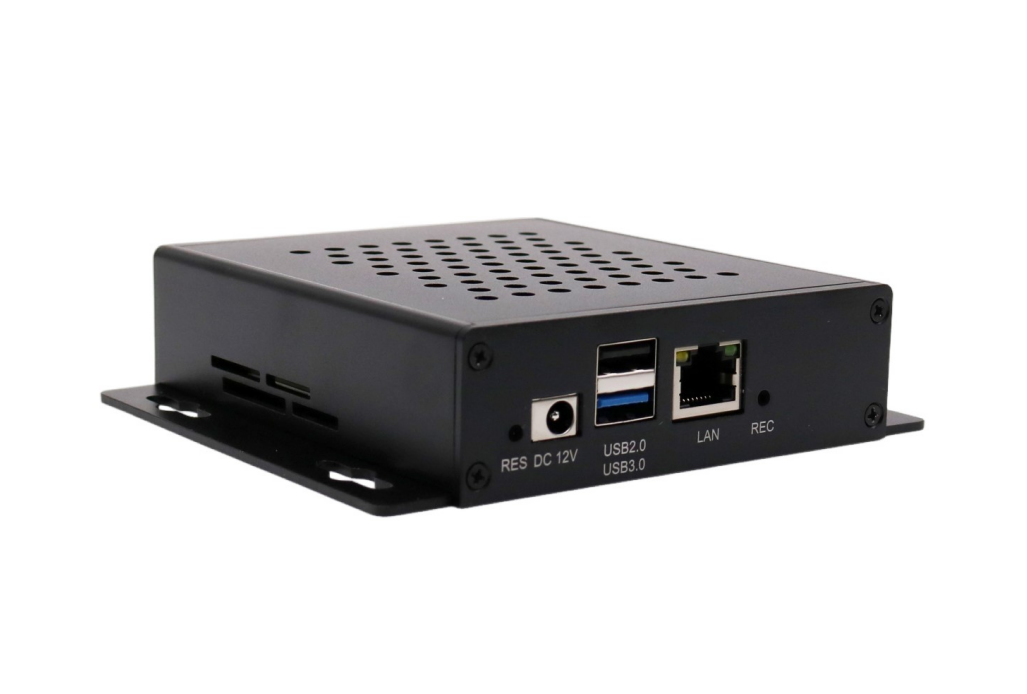

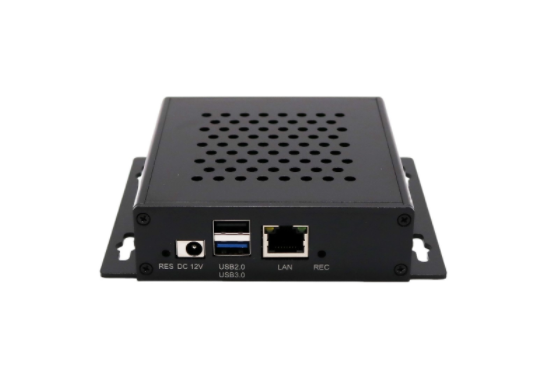

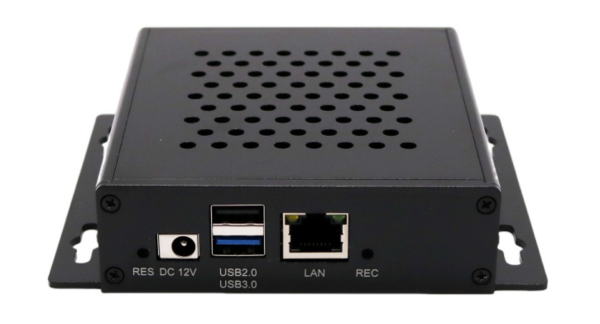

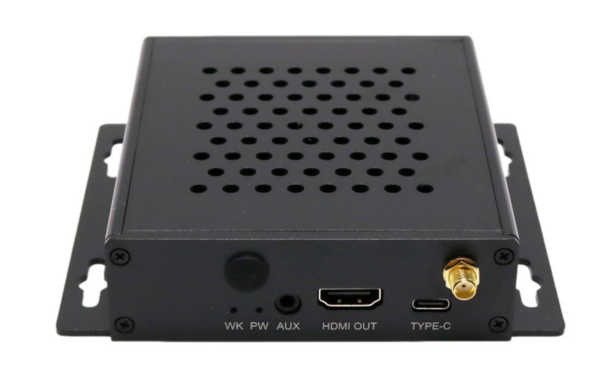

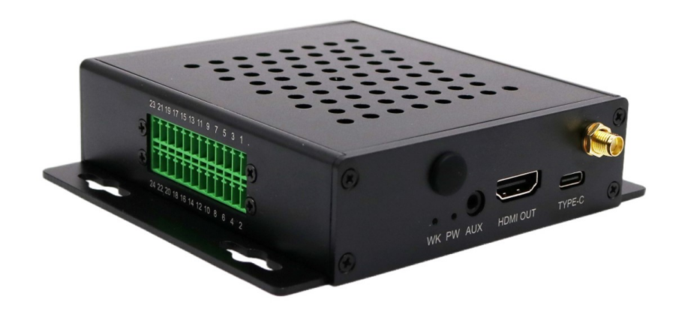

Mekotronics R58S2 photos
Mekotronics R58S2 testing scores

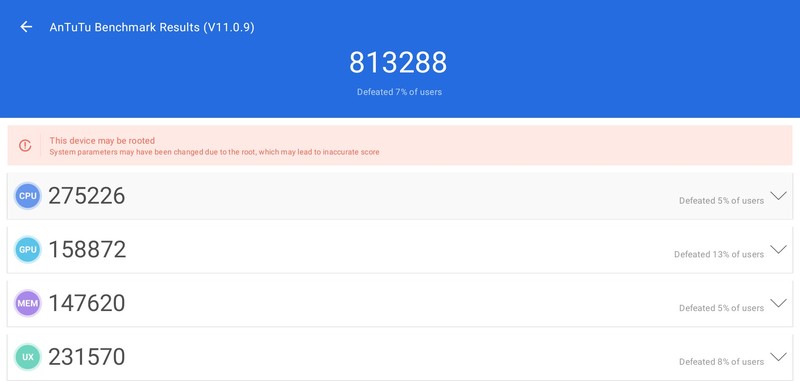

Antutu score 813288

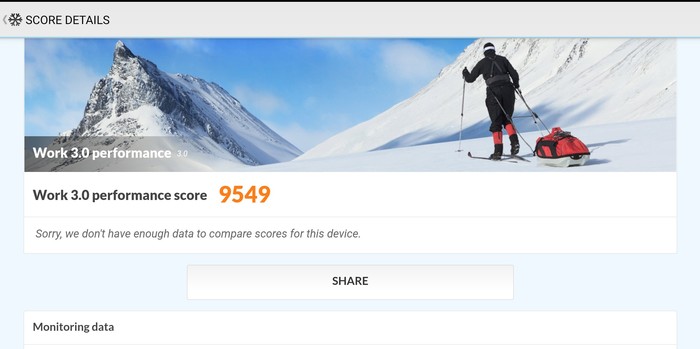

Work 3.0 score

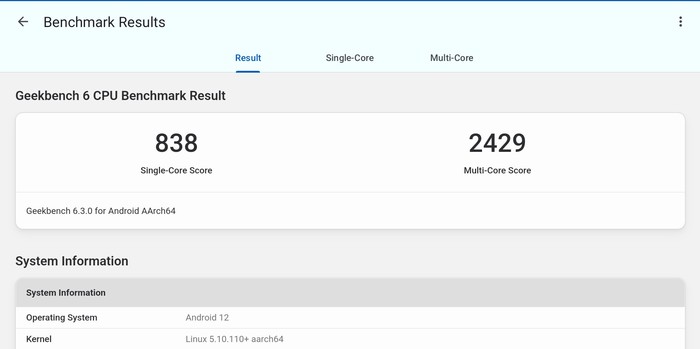

Geekbench score
