Mekotronics B58 is based Rockchip RK3588 chipset, it is a octa-core CPU and GPU is Mali G610, and it has 6 TOPS NPU.
The biggest feature of the device is its 3 HDMI inputs, and customer can use the multiple HDMI inputs for live broadcasting and streaming purpose.

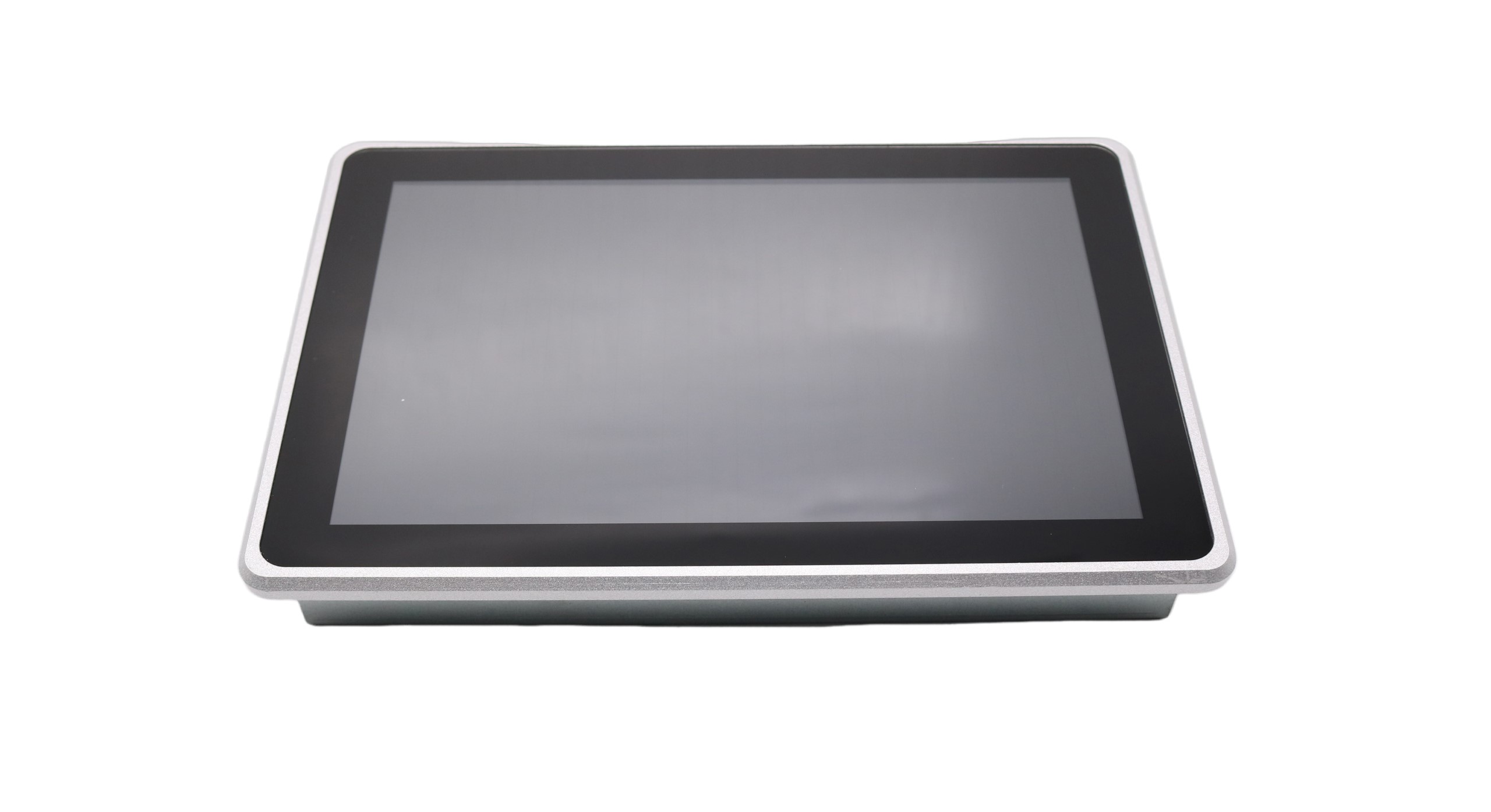

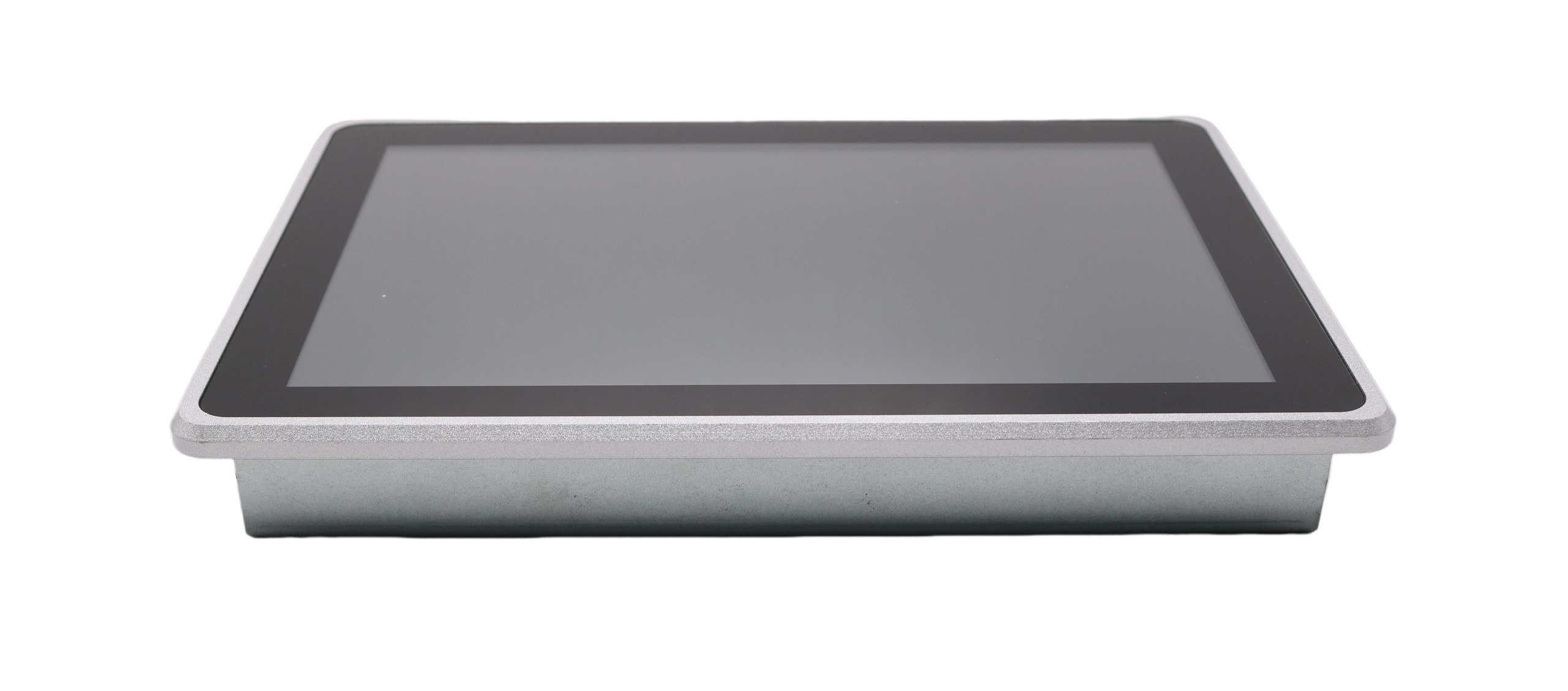

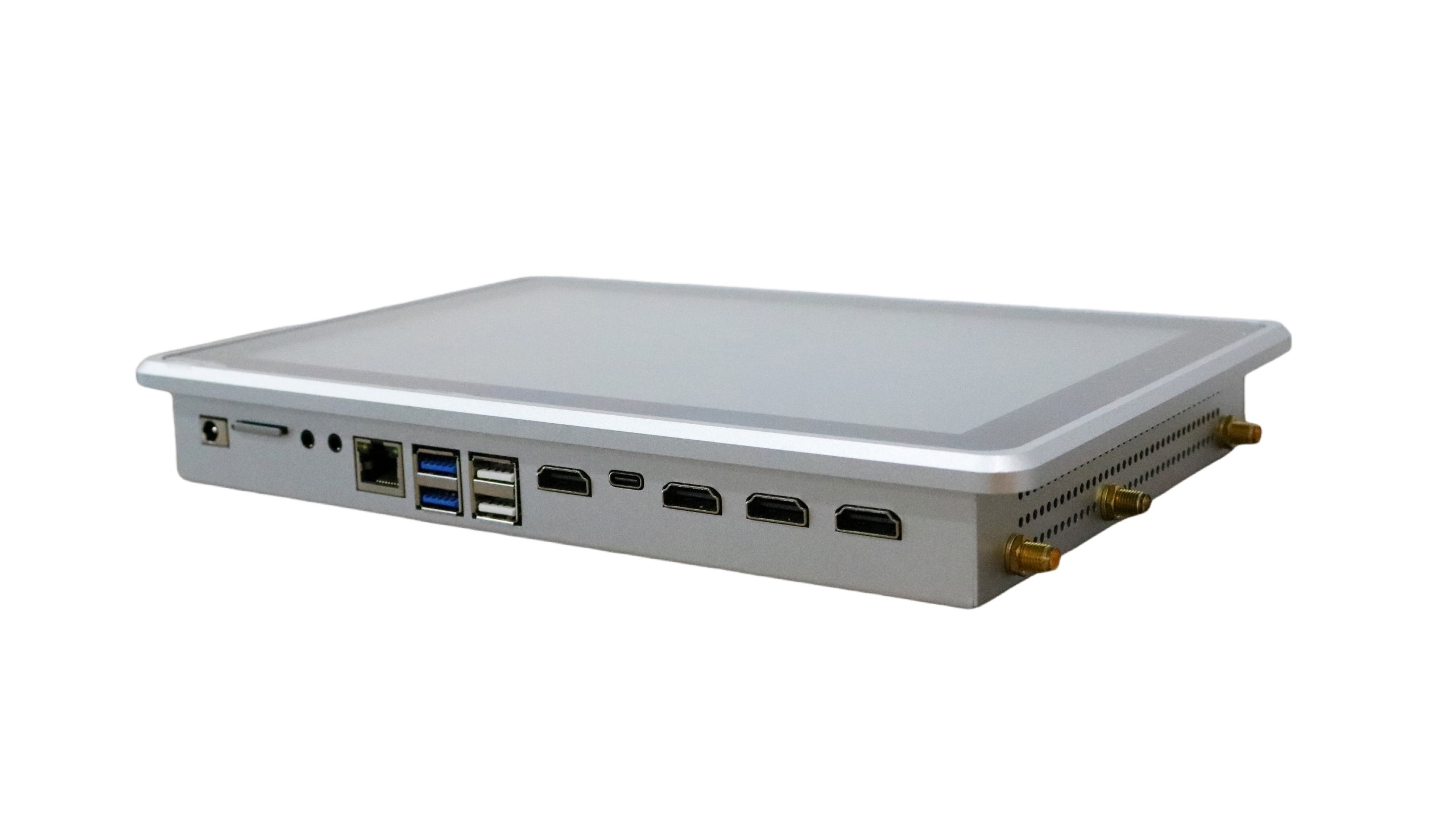

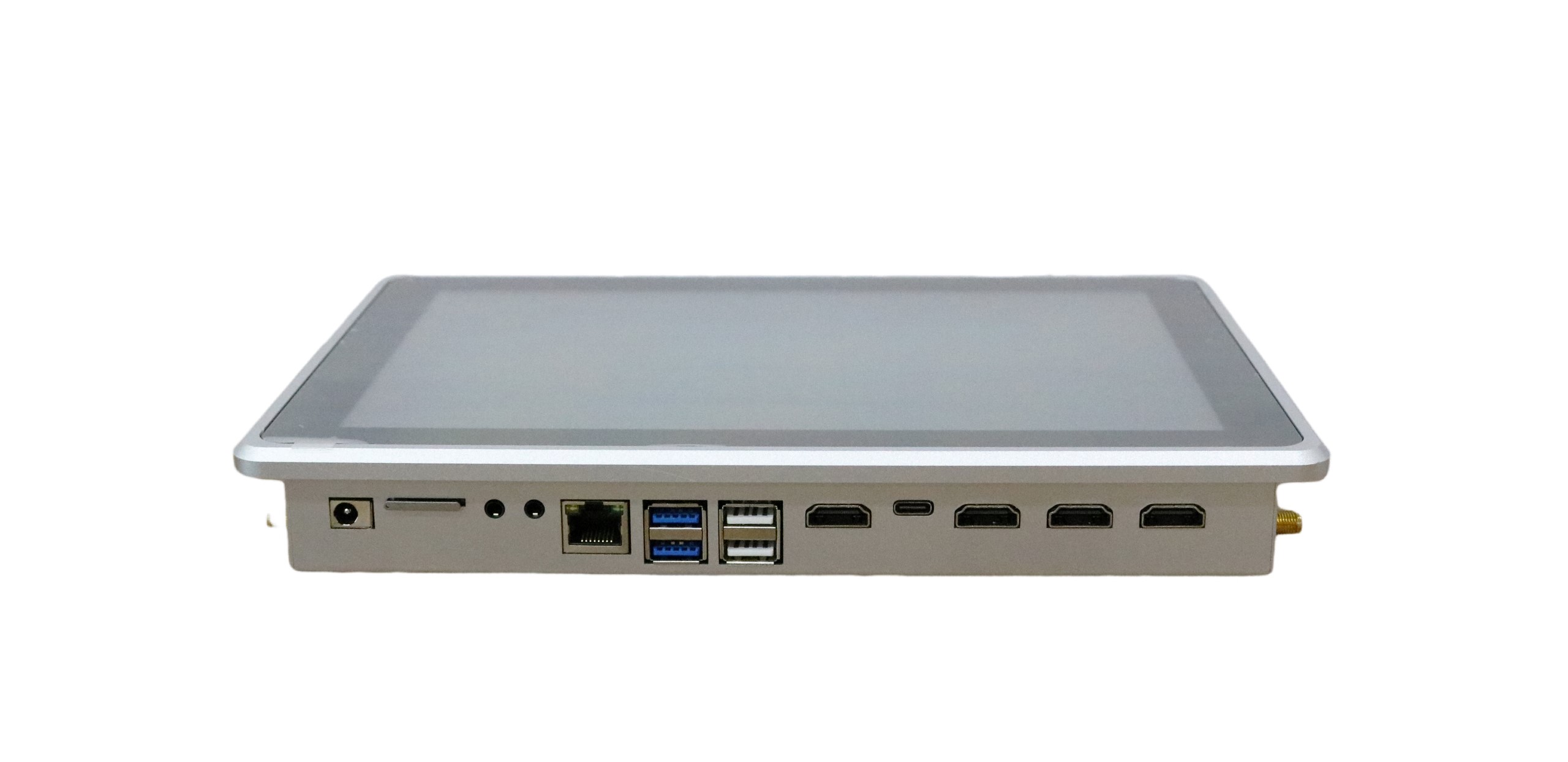

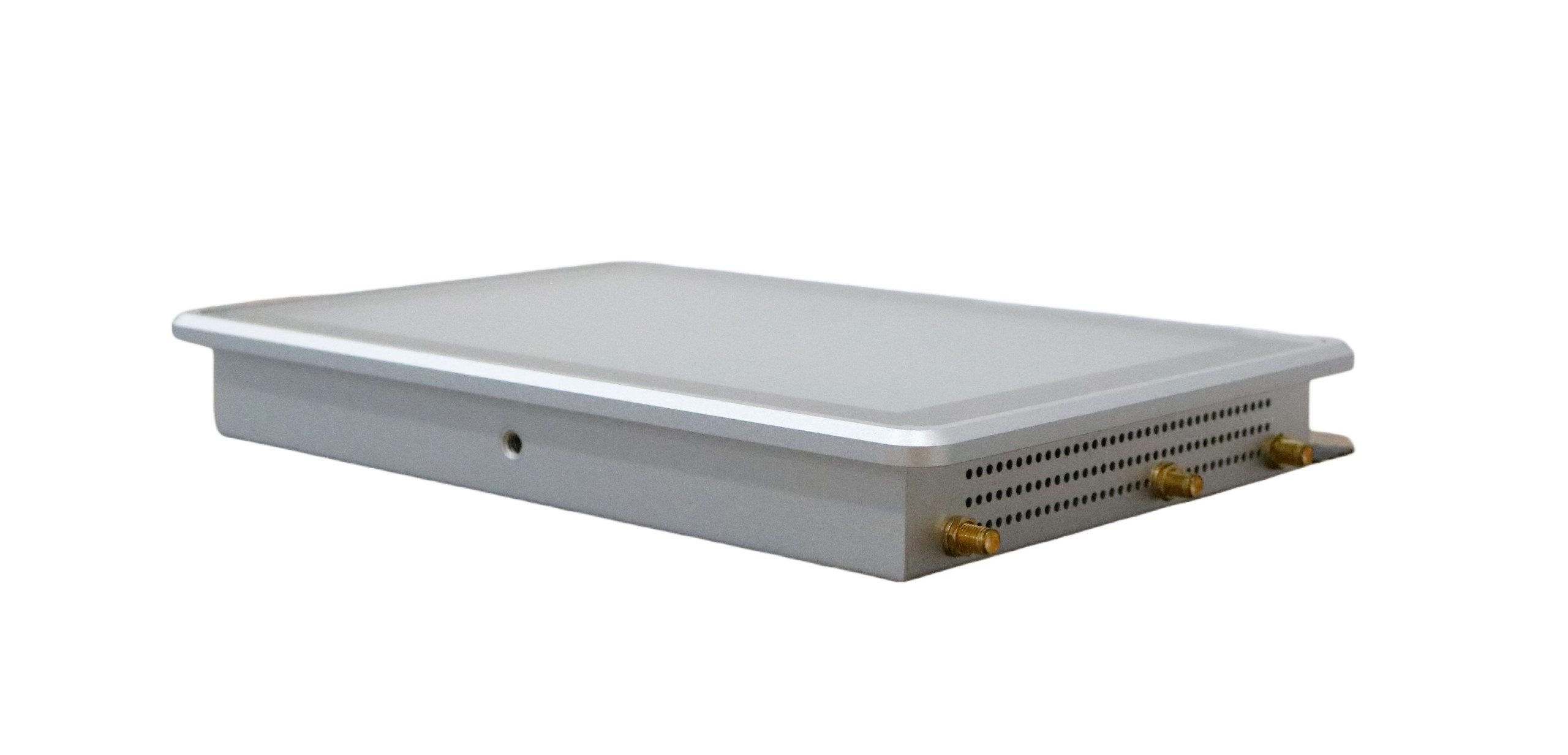

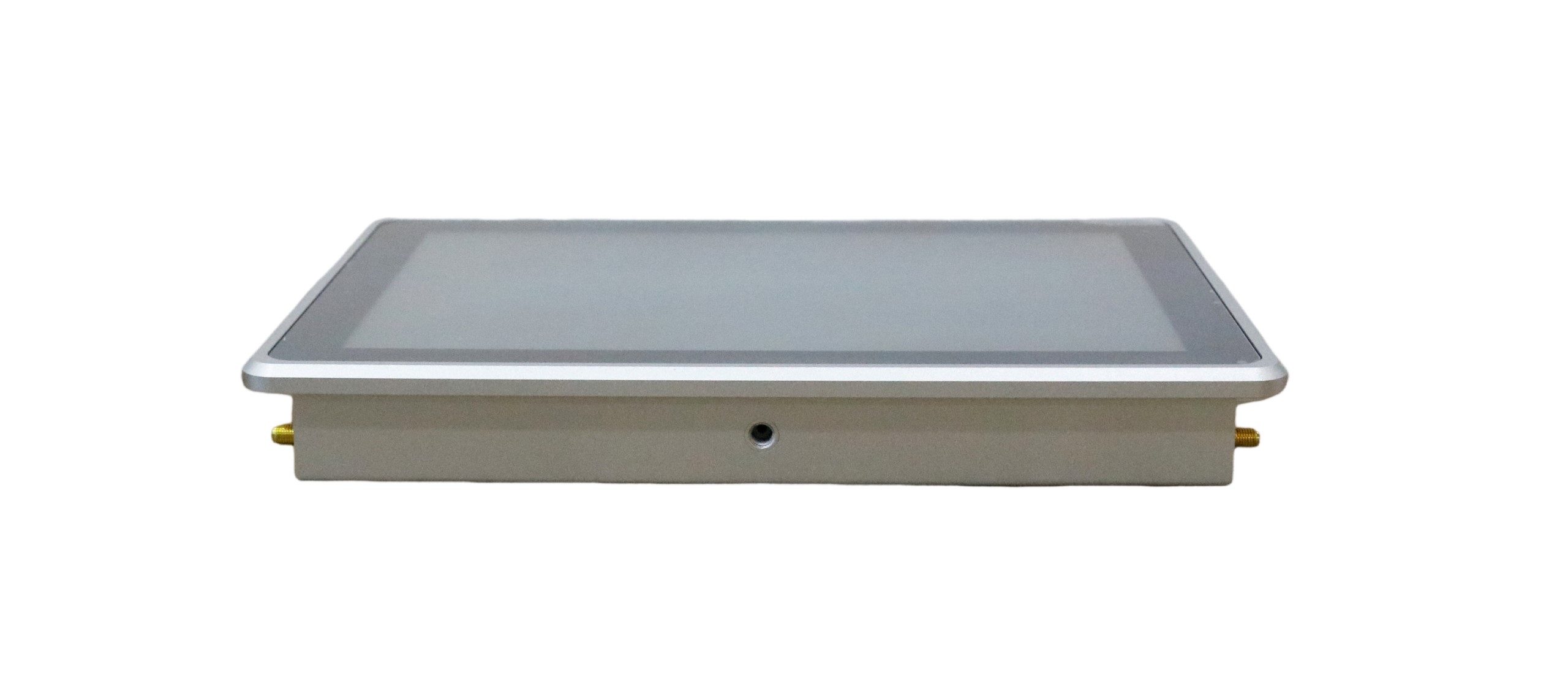

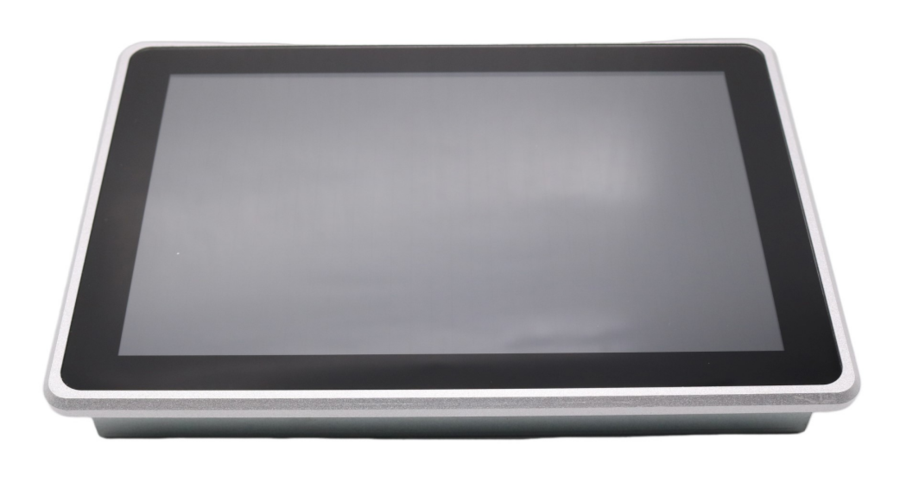

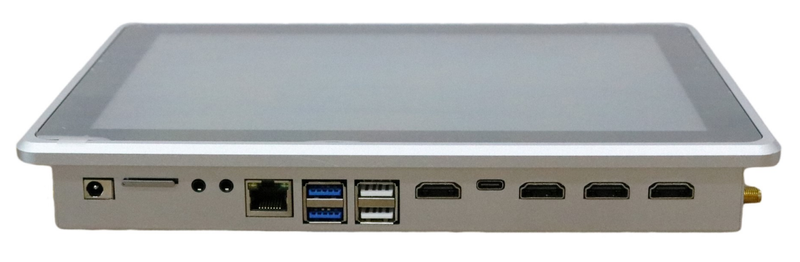

Here are the B58 photos:
B58 is based on Android OS, and it has 10 inch touch panel display and cold-shoe connector, so customer can easily mount the device to a tripod for live streaming, video capture, and broadcasting.
B58 internally has M.2 PCIe connector, and it can support 5G LTE module, so our B58 equiped with total 6 antennas for both WiFi, bluetooth and most importantly the 5G LTE connection for faster and power data transfer.
Here is B58 specifications:
Model | B58 |
Chipset | Rockchip RK3588 Octa-core |
CPU | Quad-core Cortex A76 @2.4Ghz and Quad-core Cortex A55 @1.8Ghz |
GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
Video | 8K 10 bit decoder, 8K encoder |
NPU | 6 TOPS |
DDR | LPDDR4X 8G |
EMMC | eMMC 64G |
HDMI inputs | HDMI inputs x3 |
HDMI output | HDMI output x1 |
Ethernet | G-LAN 1000Mbps |
WiFi | WiFi 6, IEEE 802.11 a/b/g/n/ac/ax MIMO |
PCIe | M.2 PCIe for 5G module |
SIM card | SIM card slot for 5G LTE |
USB | USB3.0 x2, USB2.0 x2, Type-C |
Audio | 3.5mm audio jack |
Antenna | WiFi and 5G Antenna total 6pcs |
Power | DC power 12V 3Ah |
OS | Android OS |
Product size | 263*178*35mm |
Product weight | 1.14kg |
