Mekotronics R58-HD-1U is based on 3pcs RK3588 processor inside, and it has total 12 HDMI outputs. The biggest feature of this device is to play 12 different videos at the same time on 12 different displays. Also R58-HD-1U 12 HDMI outputs can be used for video wall applications. Such as combine 12 display into a giant big video wall in both portrait and landscape patterns.

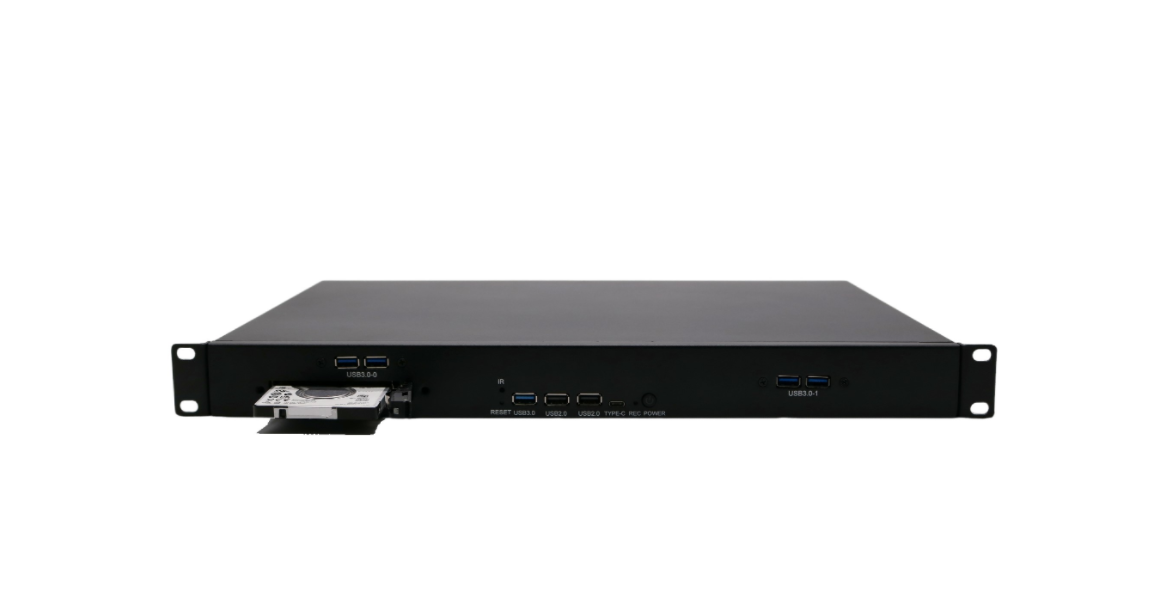

R58-HD-1U is made with a 1U standard chasis, so it can be easily fit and used for industrial application. The front panel has a 2.5" SATA HDD slot for expanding storage.
R58-HD specification table:
Model | R58-HD-1U |
Description | Rockchip RK3588 12 HDMI outputs Android/Linux Arm PC media player |
Chipset | Rockchip 3588x3 (8 nm made chipset, 8 cores CPU, 8EE GPU, 2.4Ghz) |
CPU | 4xCortex-A76 and 4xCortex-A55 |
GPU | Mali G610 |
NPU | 6 TOPs supports INT4/INT8/INT16/FP16 hybrid operation |
DDR | LPDDR4X 4G/8G/16G |
eMMC | eMMC5.1 32G/64G/128G |

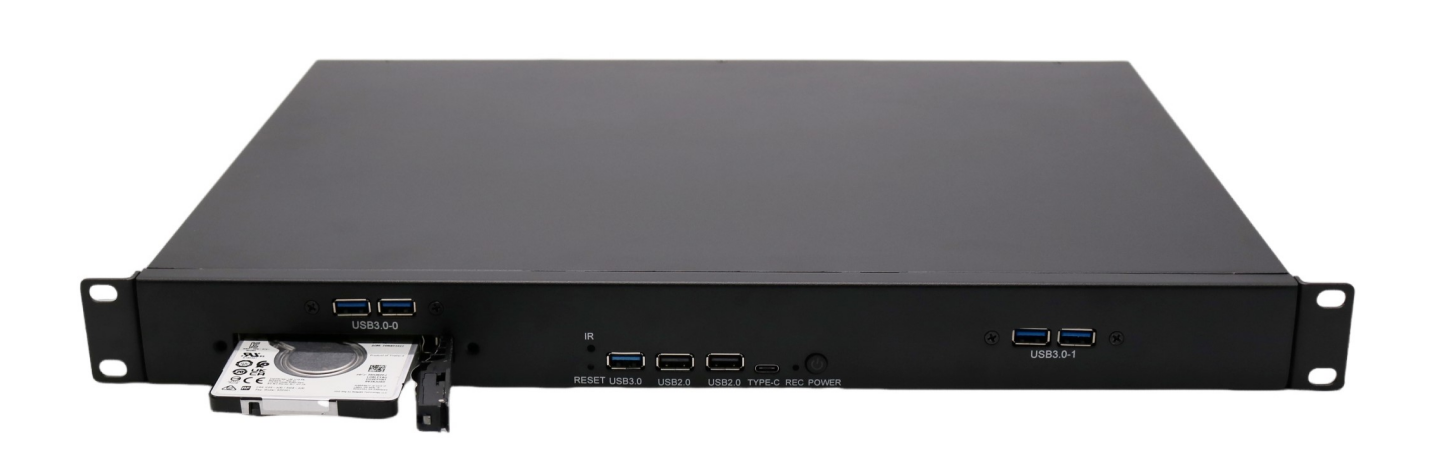

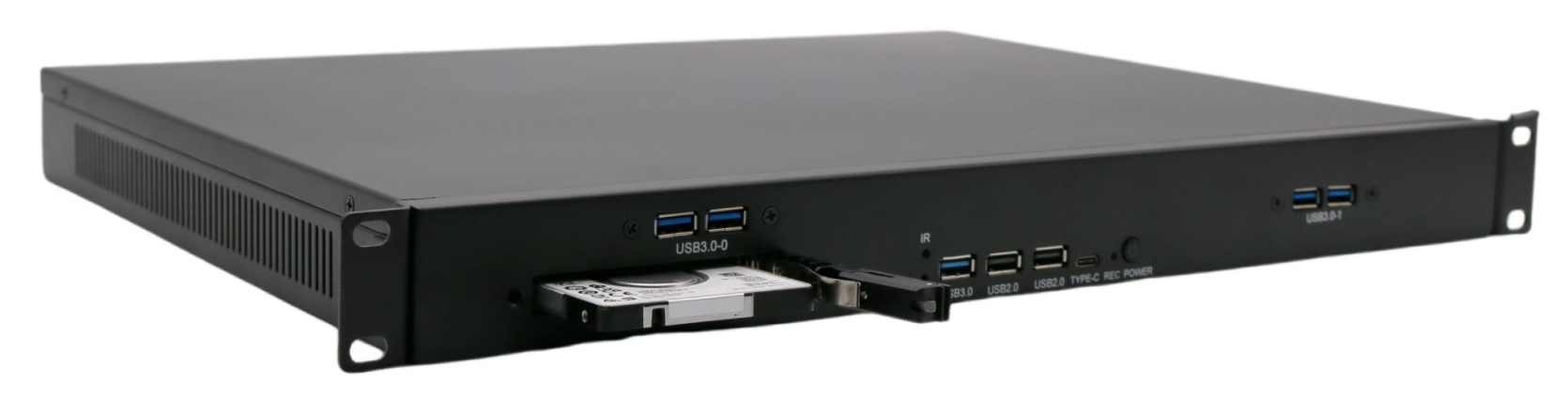

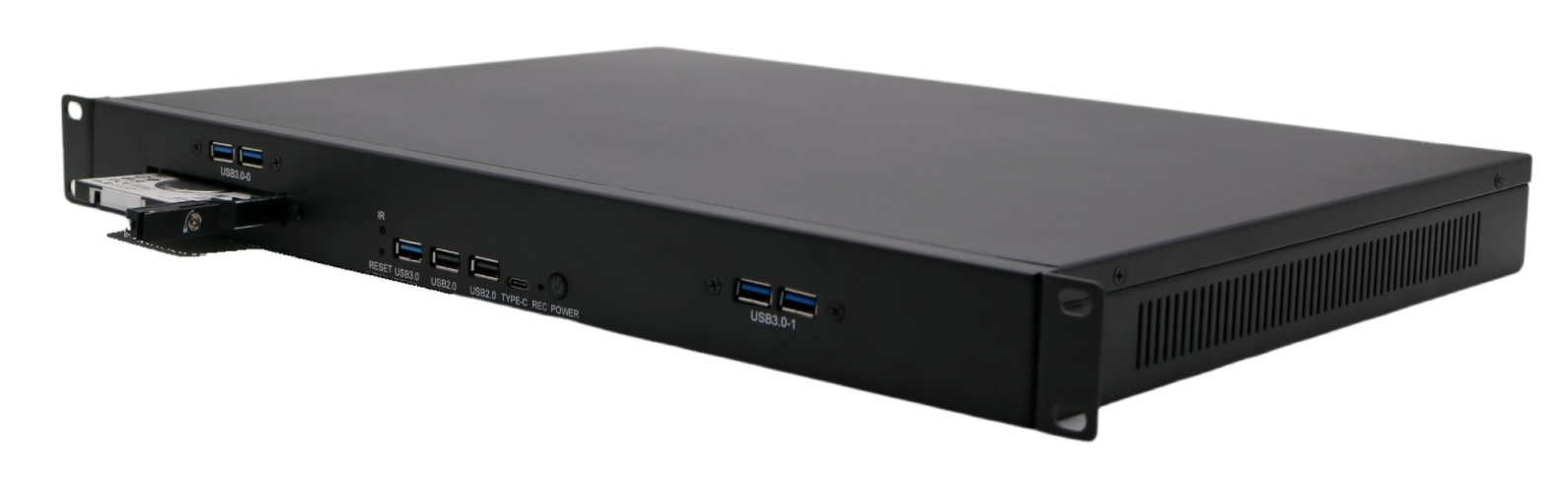

Front panel | USB3.0x5, USB 2.0x2, Tpye-C, 2.5" HDD slot |

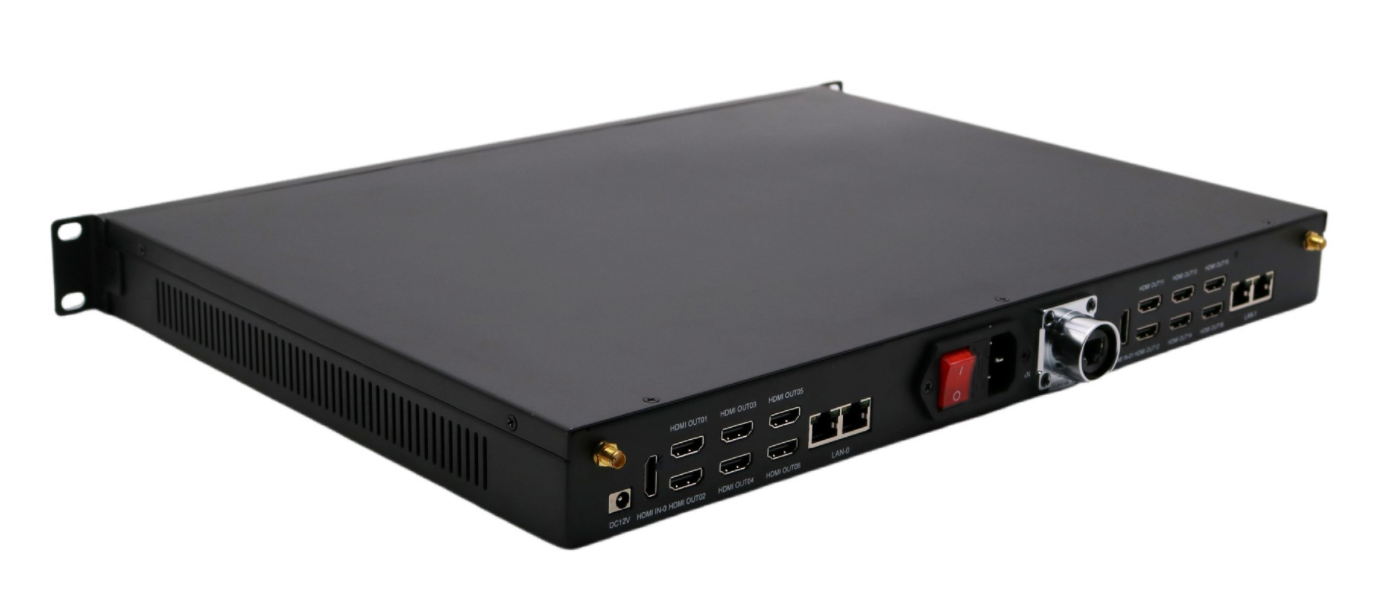

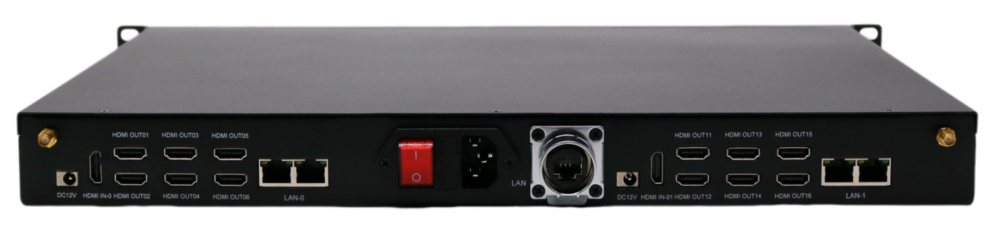

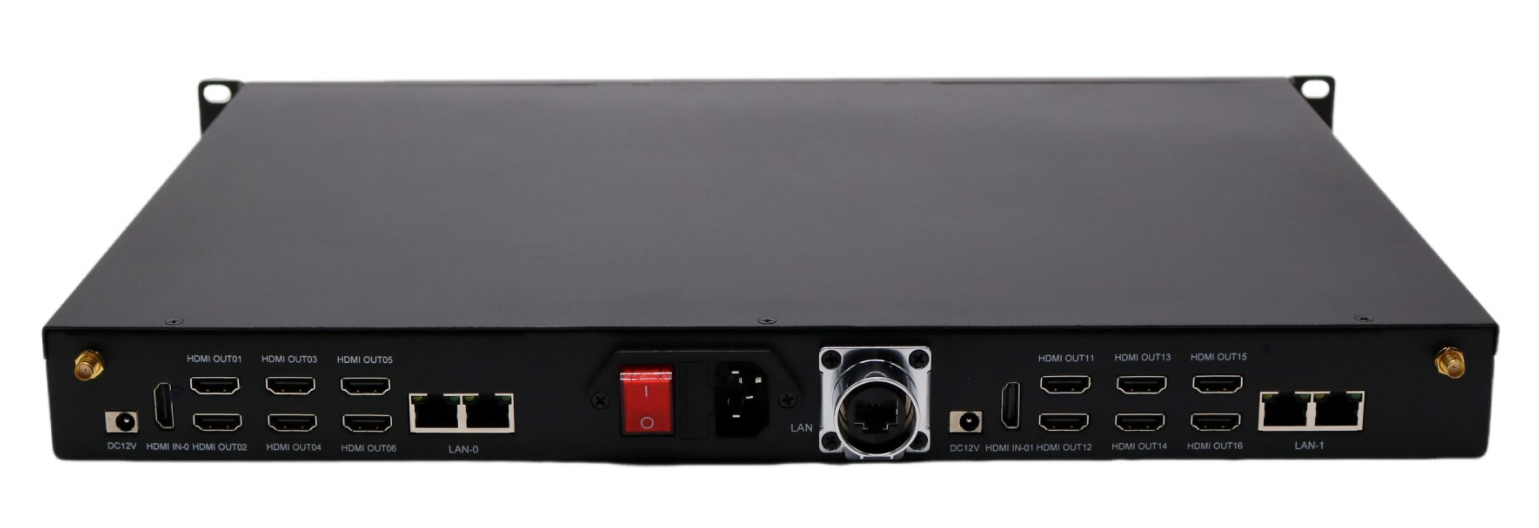

Rear panel | HDMI ouput x12, Ethernet RJ45 x5, HDMI inputs x2, AC power |
Wireless | WiFi 6 and Bluetooth |
Video code | AV1 decoder by 4K@60fps, H.264 decoder by 8K@30fps, H.265 and VP9 decoder by 8K@60fps |
Power | AC power |
OS | Android, Debian, Buildroot, Armbian OS |
Size | 440*330*44mm |
