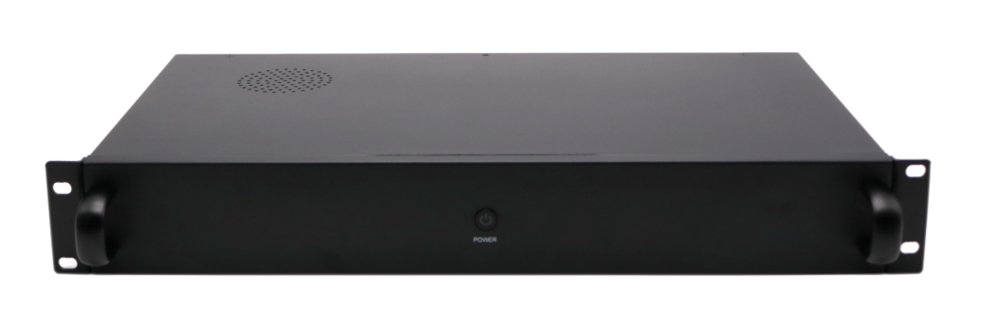

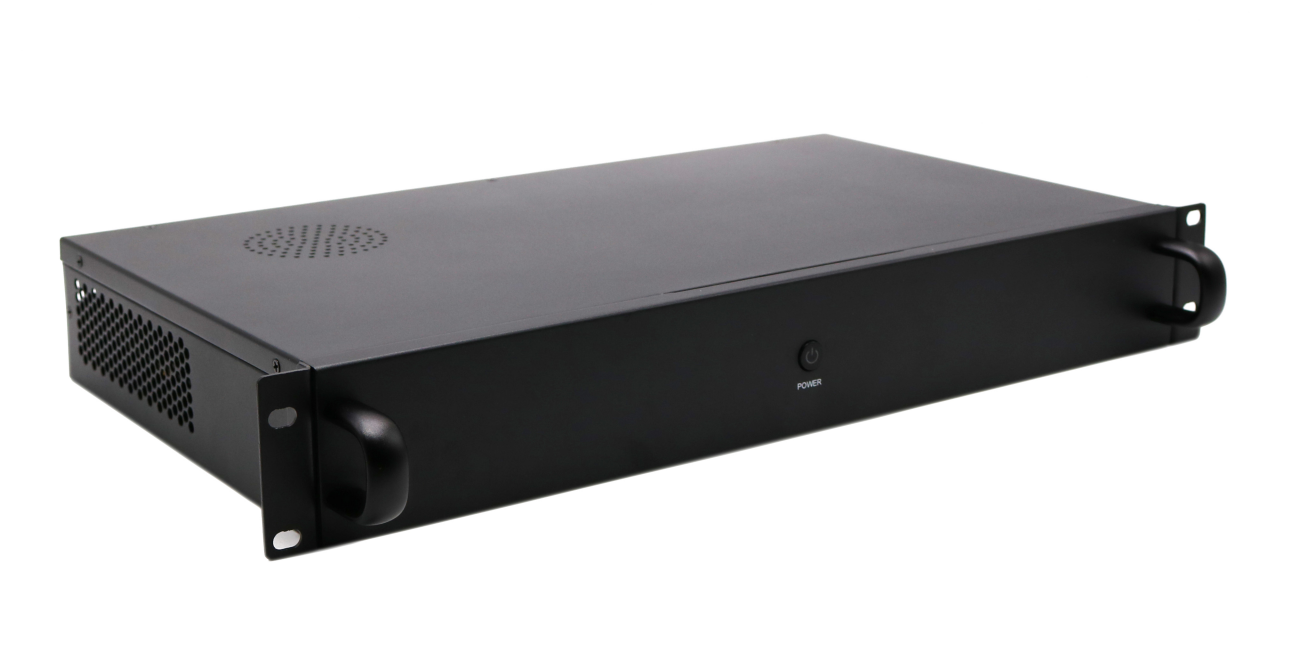

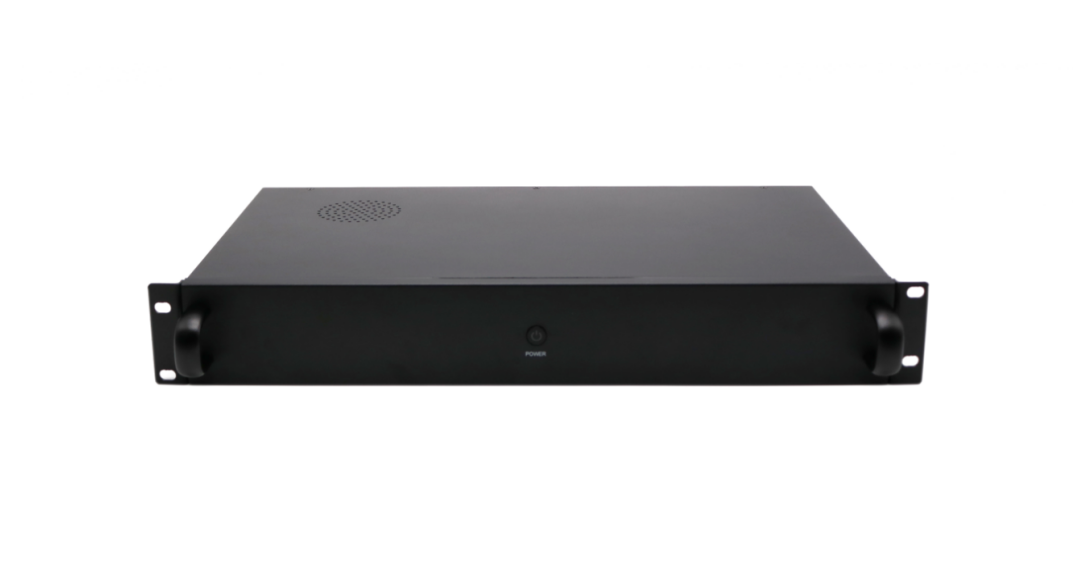

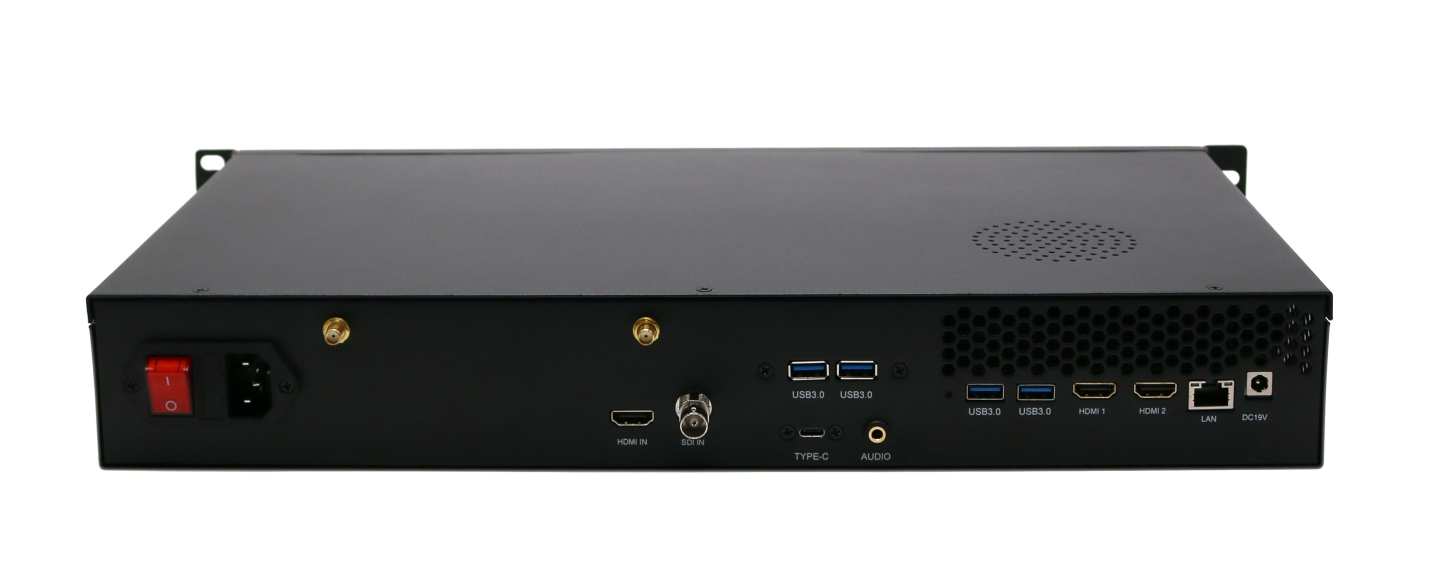

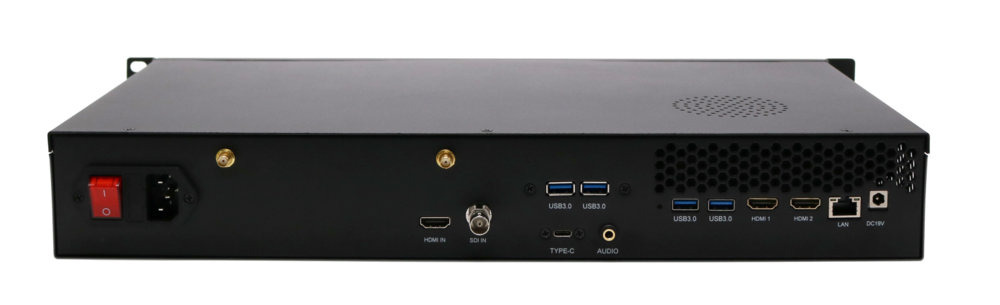

Mekotronics 125H-SDI
The1.5RU industrial PC with blackmagic Design Decklink 4K inside. This device has HDMI input and SDI input, and the two inputs are designed for broadcasting application scenarios.
With the powerful performance of Intel 125H, 14 cores CPU and 18 threads; It has Performance-core 4.5Ghz, Efficient-core 3.6Ghz, low-power consumption 2.5Ghz.
The integrated GPU is Intel Arc graphics 2.2Ghz.
The Ultra series CPU now has Intel Depp learning enchancement for AI functionalities, such as Intel® AI Boost (OpenVINO™, WindowsML, DirectML, ONNX RT)
Mekotronics 125H-SDI also has HDMI x2, 4096 x 2304 @ 60Hz, type-c * 1 triple screen display in the system
For the video, H.264, H.265, AV1 hardware encode and decode VP9 bitstream and decoding
About the HDMI and SDI inputs:
HDMI inputs: Blackmagic Design, HDMI 2.0a input, 2160p30
HDMI Audio inputs for 8 Channels embedded in SD, HD, Ultra HD
SDI inputs: Blackmagic Design, SDI input, 6G-SDI
SDI Audio inputs for 16 channels embedded in SD, HD, Ultra HD

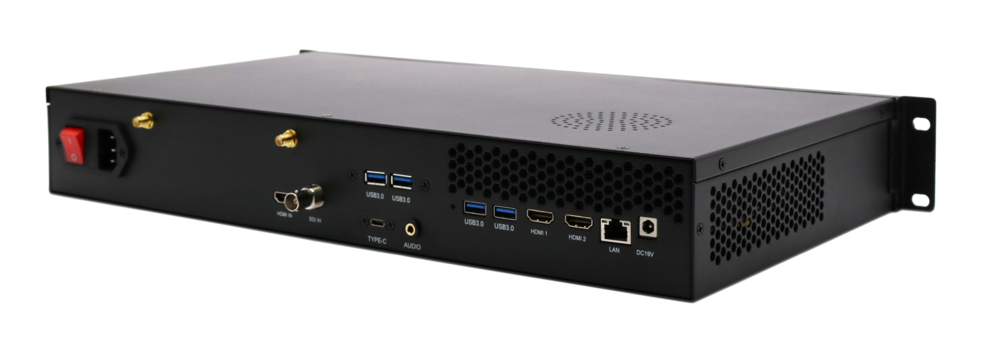

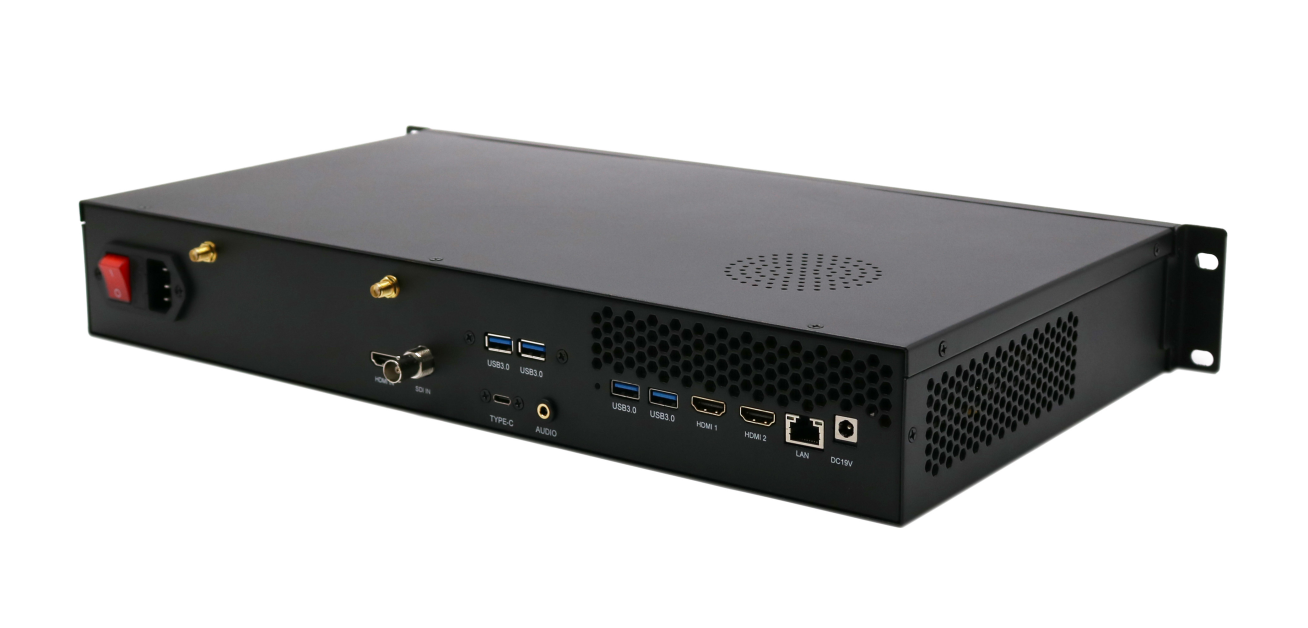

The device has WiFi 6 and Bluetooth 5.2, and 2.5Gbps ethernet. And the USB3.0 Type-A*4 5Gbps, Type_C * 1 (full function) 10Gbps
Its 1.5RU design, and the size is 44*25*6.5mm (1.5RU)
Operation systems: Windows and Linux
Mekotronics 125H-SDI with HDMI and SDI inputs at Windows and Linux OS:

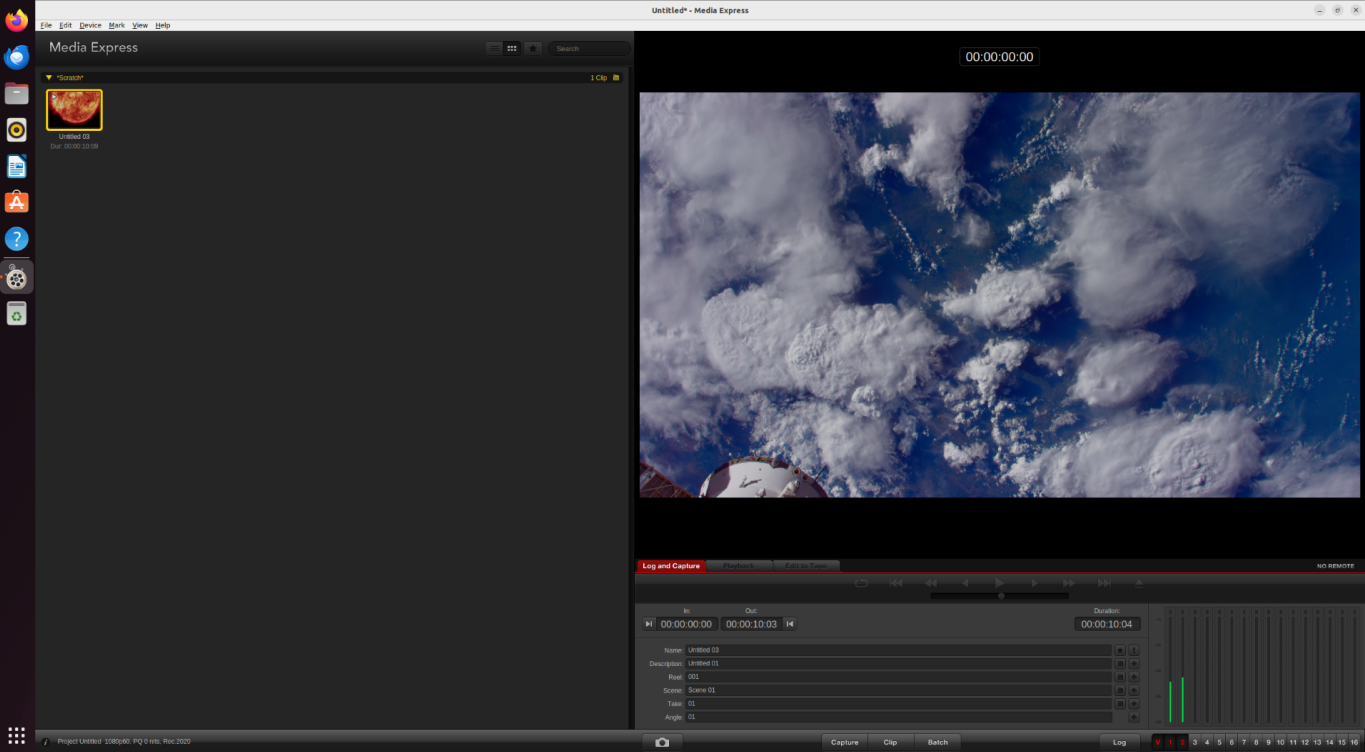

* Linux OS

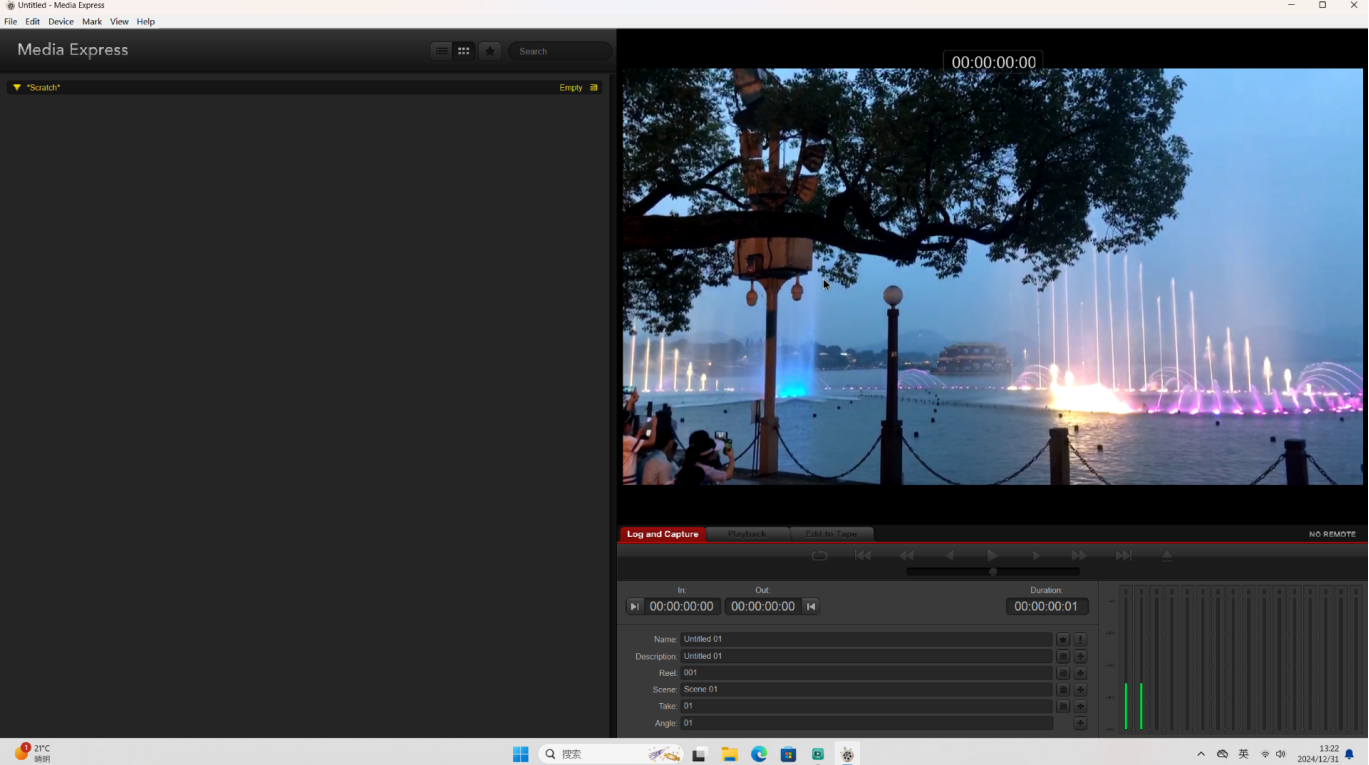

* Windows OS

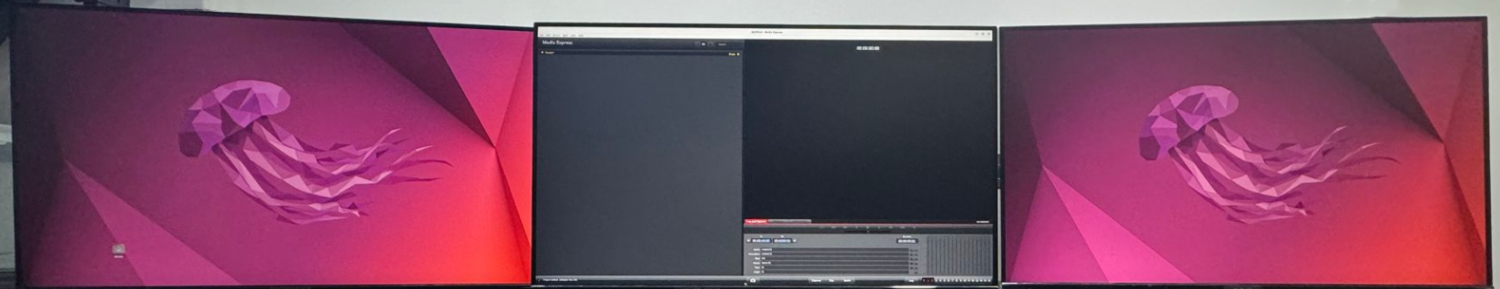

* Mekotronics 125H-SDI multiple video outputs
* Mekotronics 125H-SDI specs:
Model | 125H-SDI |
CPU | Intel® Core™ Ultra 5 processor 125H |
Cores and Threads | 14 cores (Performance-core 4 cores, Efficient-core 8 cores, low-power consumption 2 cores), 18 threads |
Max frequency | 4.5Ghz (Performance-core 4.5Ghz, Efficient-core 3.6Ghz, low-power consumption 2.5Ghz) |
Deep learning | Intel Deep Learning Enhancement |
| Intel on GPU ® Deep Learning Enhancement (Intel) ® DL Boost |
GPU | Intel® Arc™ graphics, 2.2 GHz |
NPU | Intel® AI Boost (OpenVINO™, WindowsML, DirectML, ONNX RT) |
DDR | SO-DIMM*2 DDR5, 5600 MT/s, up to 96 GB |
Storage | Up to 2TB (gen4*4), 2*NVME |
Video output | HDMI x2, 4096 x 2304 @ 60Hz, type-c * 1 triple screen display in the system |
Graphic feature | Xe-core 7, Ray Tracing, DirectX* 12.2, OpenGL* 4.6, OpenCL*3 |
Video code | H.264, H.265, AV1 hardware encode and decode
VP9 bitstream and decoding |
Video input 1
DeckLink Mini 4K | Blackmagic Design, HDMI 2.0a input, 2160p30
HDMI Audio inputs for 8 Channels embedded in SD, HD, Ultra HD |
Video input 2
DeckLink Mini 4K | Blackmagic Design, SDI input, 6G-SDI
SDI Audio inputs for 16 channels embedded in SD, HD, Ultra HD |
BIOS support | Real time clock, timed startup, auto power on, UEFI startup |
CPU integrated TPM | Support TPM 2.0 |
Wireless | WiFi 6 and Bluetooth 5.2 |
Ethernet | 10M/100M/1000M/2.5Gbps adaptive |
USB 3.0 | USB3.0 Type-A*4 5Gbps |
Type-C | Type_C * 1 (full function) 10Gbps |
Audio-in/out | 3.5mm Phone Jack x1 (2-in-1 interface) |
Power | AC power input |
Size | 440*250*65mm (1.5RU) |
Operation system | Windows or Linux |
