Mekotronics R58-4x4 3U
Mekotronics R58-4x4 3U is using Rockchip RK3588 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A76 and 4 cores of Cortex A55.
With its HDMI2.1 output, the max video output resolution is up to 8K 60Hz (7680*4320 60Hz)
Mekotronics R58-4x4 3U Internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.
Mekotronics R58-4x4 3U biggest feature has total 4 SDI inputs and loop, and max input resolution is 4K@60Hz.

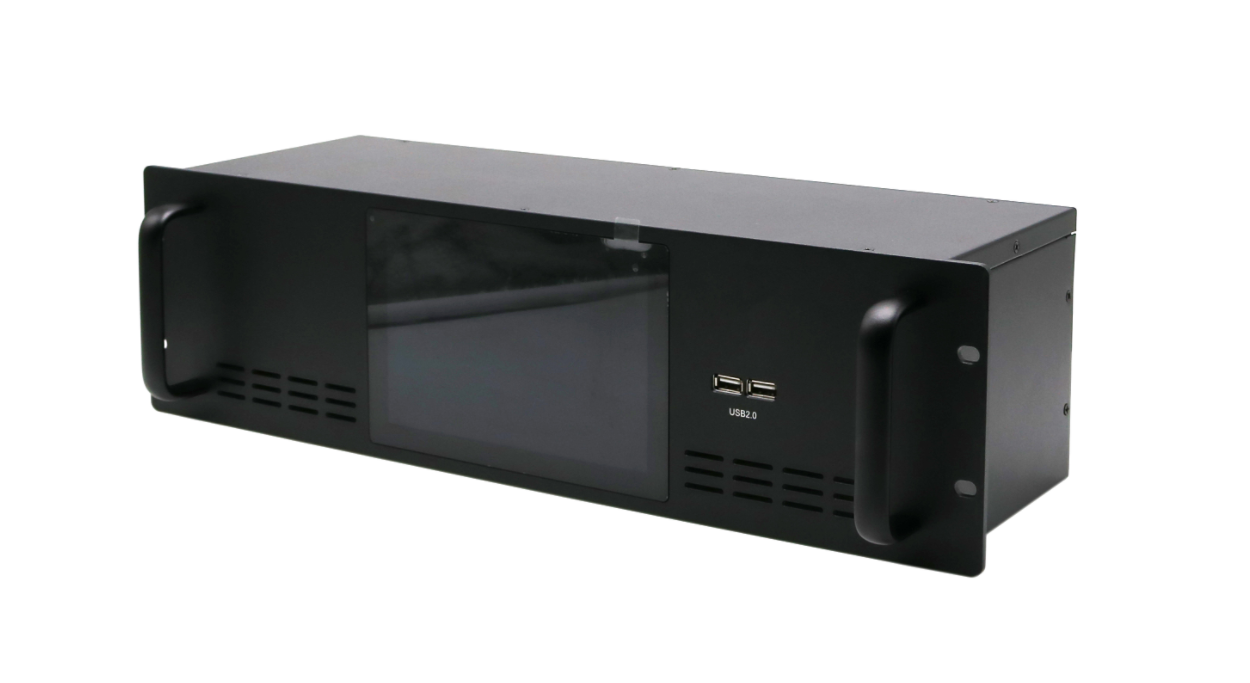

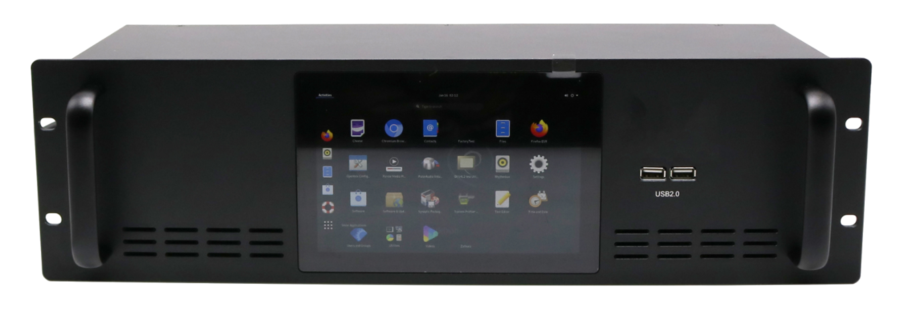

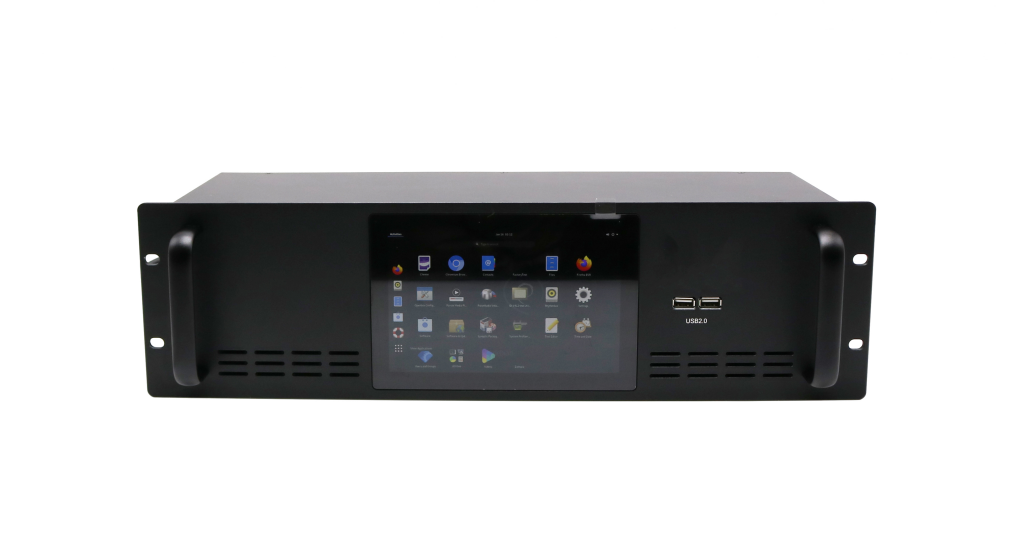

With a 7 inch touch panel display on the front, it is very easy for customer to do the video capture and surveillance.

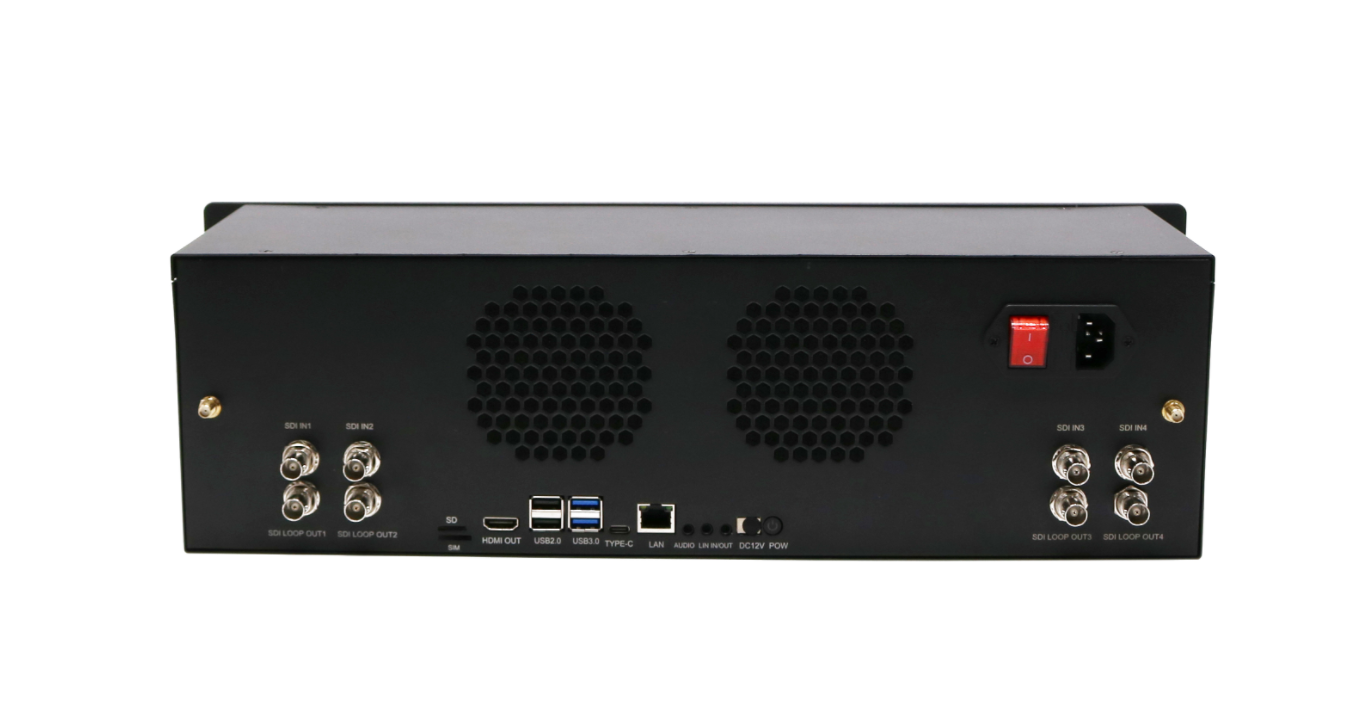

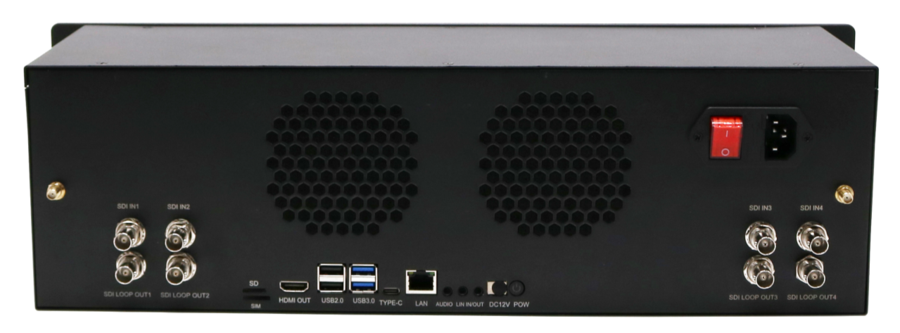

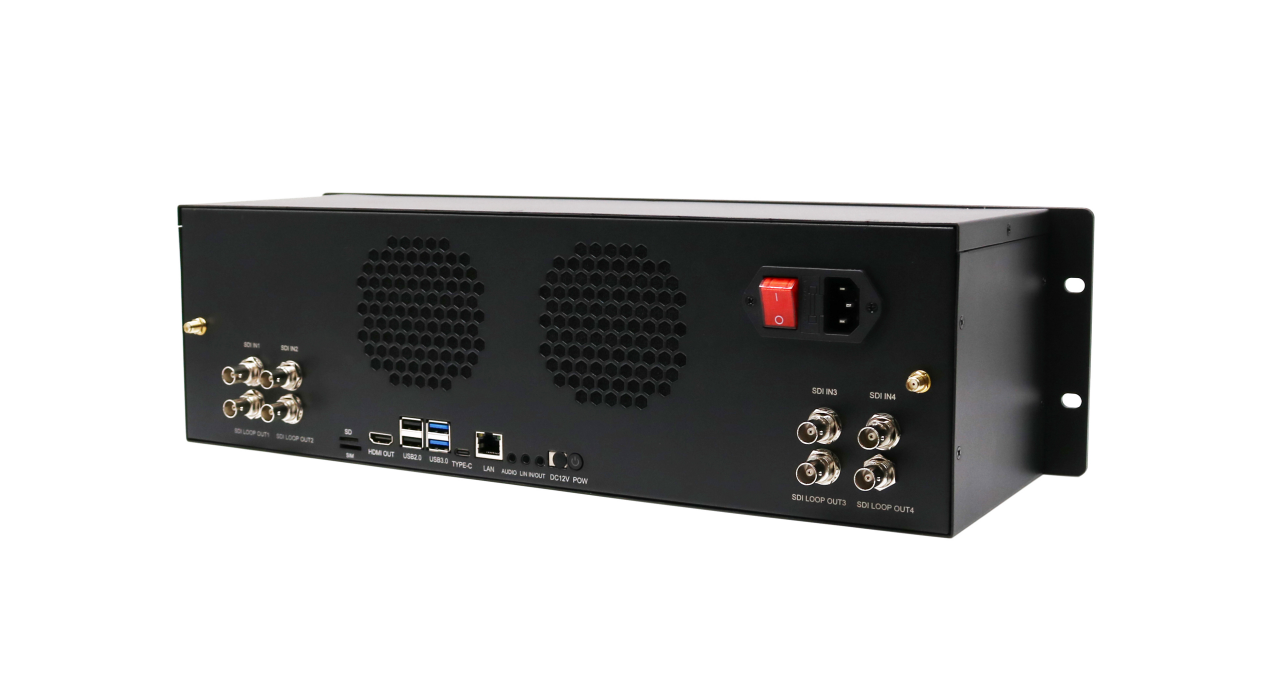

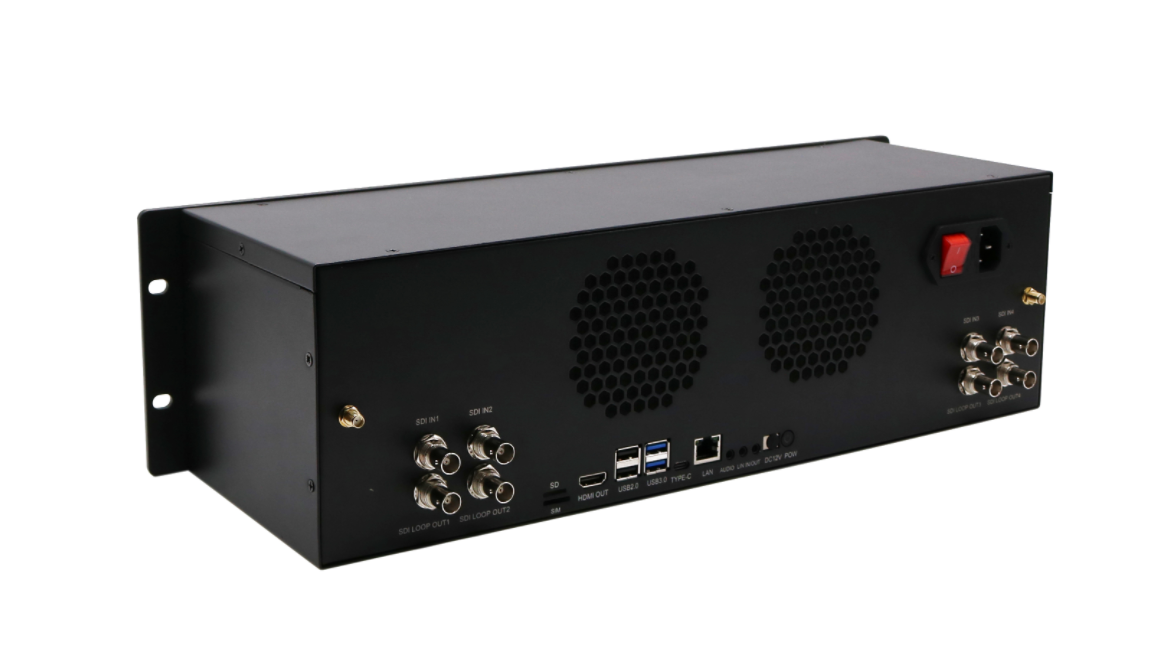

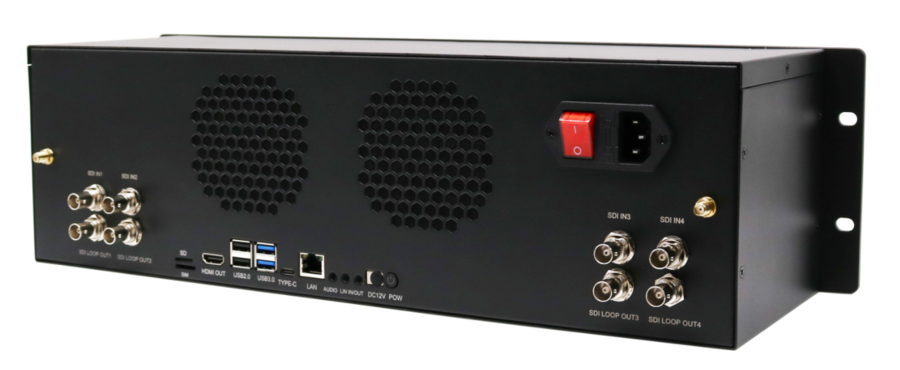

Also R58-4x4 3U has diverse connectors and interfaces:
such as USB2.0 and USB3.0, Type-C, G-LAN ethernet, 3.5mm audio port, line in and line out, micro SD card, 4G SIM card slot. Inside the device.
R58-4x4 3U also has internal M.2 PCIe (for 2280 size SSD/NVME) and mini PCIe for different functionalities extension.
Mekotronics R58-4x4 3U specifications:
Chipset | Rockchip RK3588, Octa-core (quad-core Cortex A76 and quad-core Cortex A55) |
CPU | 8 cores CPU, Quad-core Cortex A76 @2.4Ghz, Quad-core Cortex A55 @1.8Ghz |
GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2, 8K 10 bit decoder, 8K encoder |
NPU | 6.0 TOPS NPU, support deep learning frameworks, Tensorflow, Caffe, Tflite, Pytorch, Onnx nn, Android NN etc |
DDR | LPDDR4X 8G |
Internal storage | Support eMMC5.1, 64GB |
OS | Android 12, Buildroot, Debian, Armbian |
HDMI output | HDMI2.1, max output 8K 60Hz |
SDI input | SDI inputs x4 (SDI 1 is 12G; and SDI 2, 3, 4 is 3G) |
SDI loop | SDI loop x4 |
Screen panels | 7 inch display at front panel |
Ethernet | G-LAN network 1000Mbps |
WiFi | WiFi 6, IEEE 802.11 a/b/g/n/ac/ax MIMO |
Clock | Support RTC clock |
USB | USB3.0 x2, USB2.0 x2, Tpye-C x1 |
PCIE | PCIE 3.0 M.2 M-key, support NVMe SSD size 2280 |
Mini PCIe | Mini PCIe for 4G LTE/GPS module |
SIM card slot | Support Nano SIM card for 4G |
Micro SD card | Miscro SD card slot |
Audio | Line-in, Line-out, Audio out with microphone |
Build-in fans | Build-in fans x2 |
Aluminium chasis | Aluminium chasis, 3U design, size at 48.2*15*13.3cm |
AC power | 110~220V |
Mekotronics R58-4x4 3U operation systems:
(1) Android 12 OS
(2) Armbian OS
(3) Debian OS
