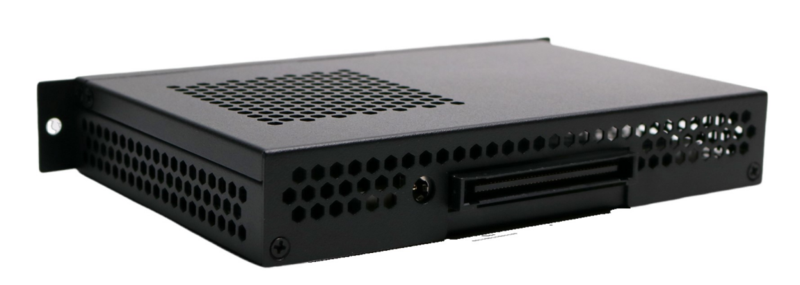

Mekotronics N100-OPS
Based on Intel N100 processor, and it has 4 cores CPU, 4 threads, and its max CPU frequency is 3.4Ghz. The integrated GPU is Intel UHD graphics, and its frequency is 750Mhz. The graphics support DirectX 12.1, OpenGL 4.6, OpenCL 3.0
Mekotronics N100-OPS has versatile connectors such as HDMI and DP output, and the max output resolution is 4096*2160P@60Hz.

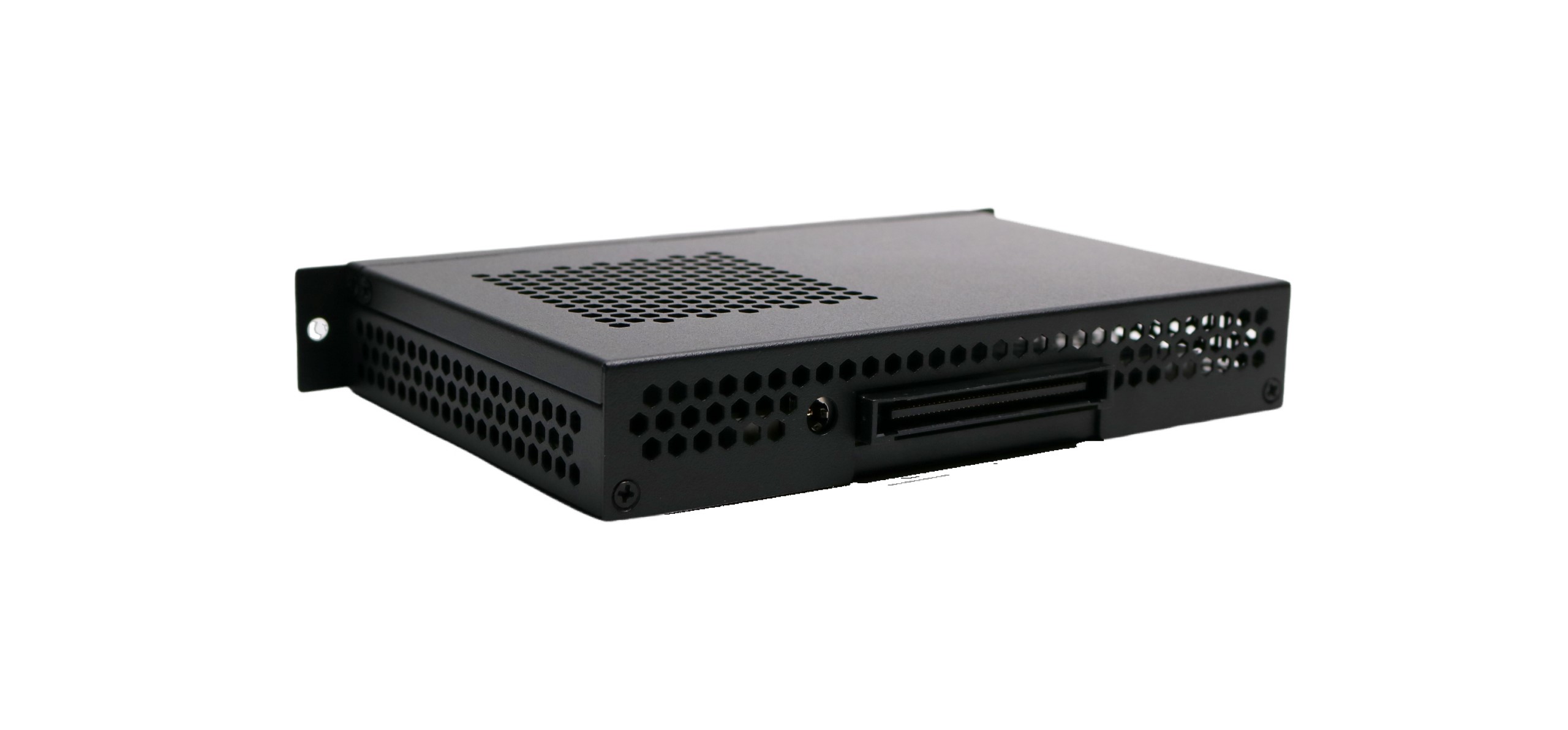

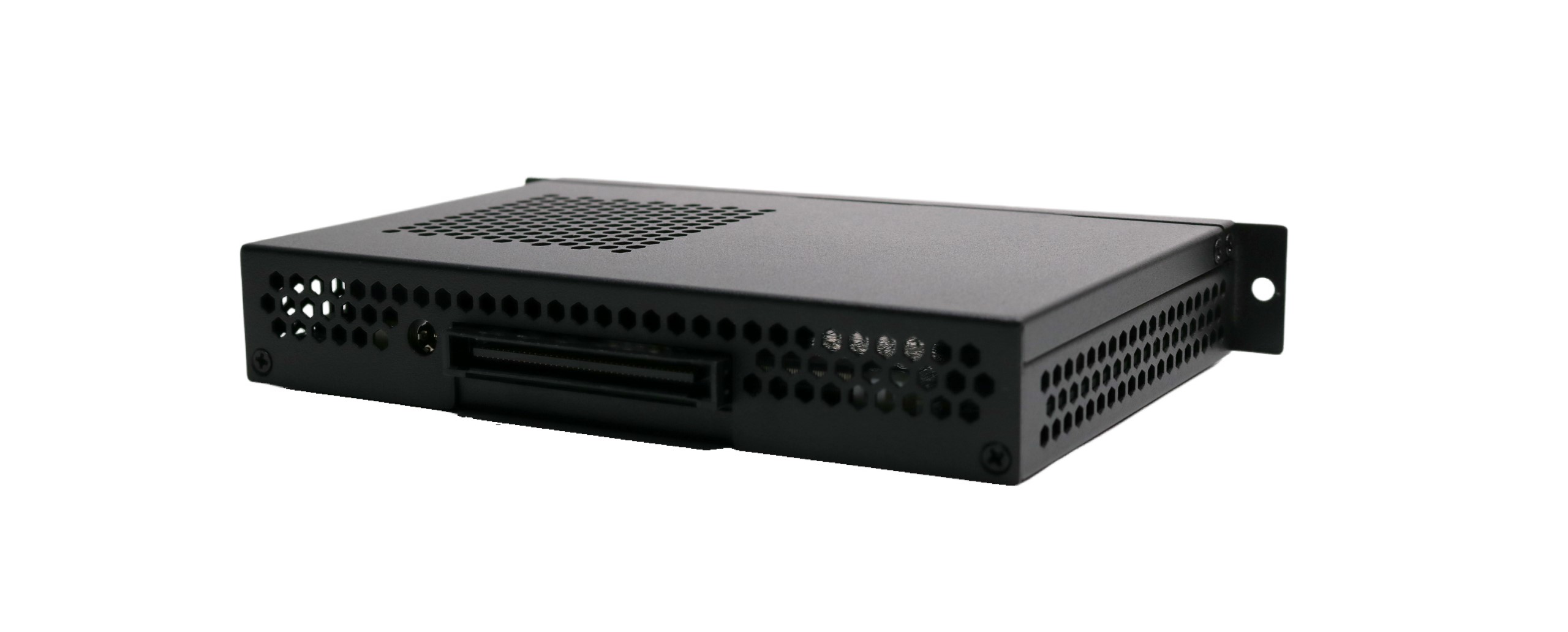

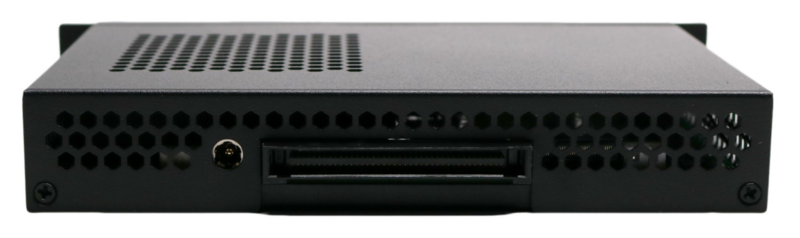

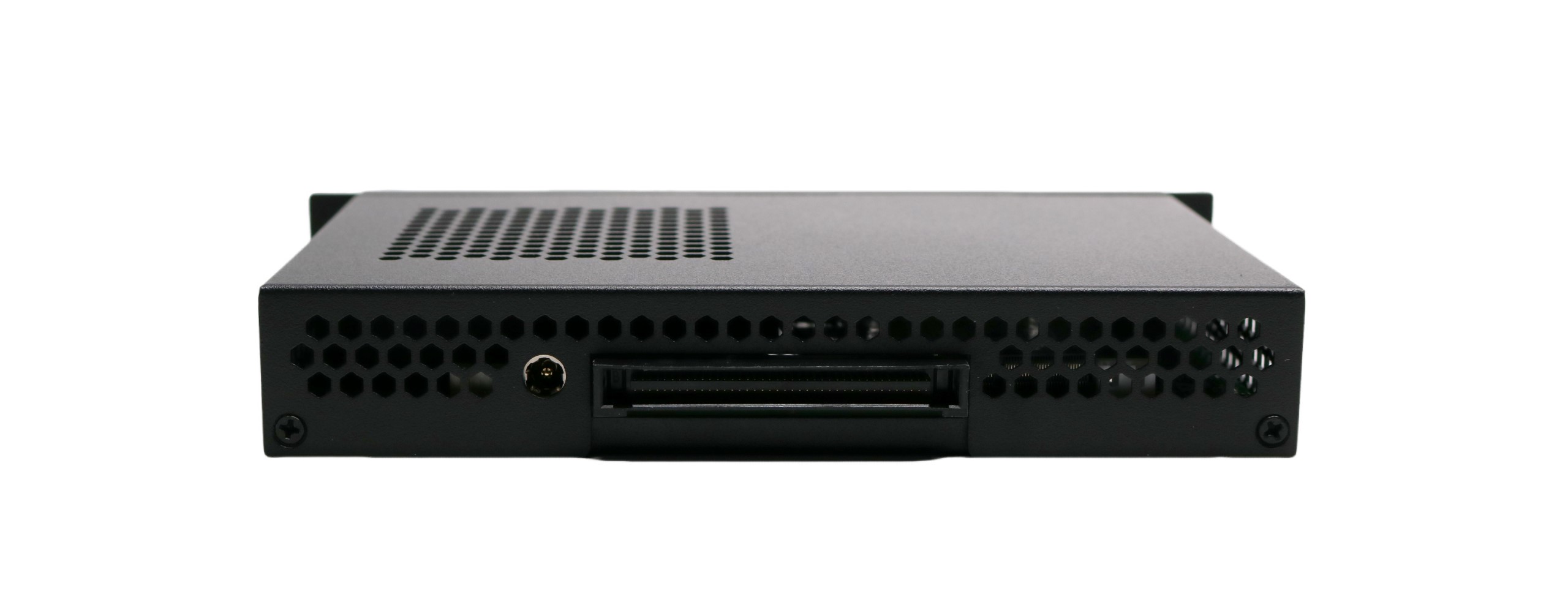

Mekotronics N100-OPS has the standard 80 pin OPS connector and 4K@60Hz resolution. So it can be used with OPS white board and conference meetings.
Mekotronics N100-OPS size is 180*119*30mm
Mekotronics N100-OPS has build-in WiFi 6 (802.11ax), and it is Intel AX201, it is a 2T2R WiFi 6 module, and 2.4G, 5Ghz (160Mhz) bands, and the max WiFi speed can be up to 2.4Gbps;
The Bluetooth is 5.2

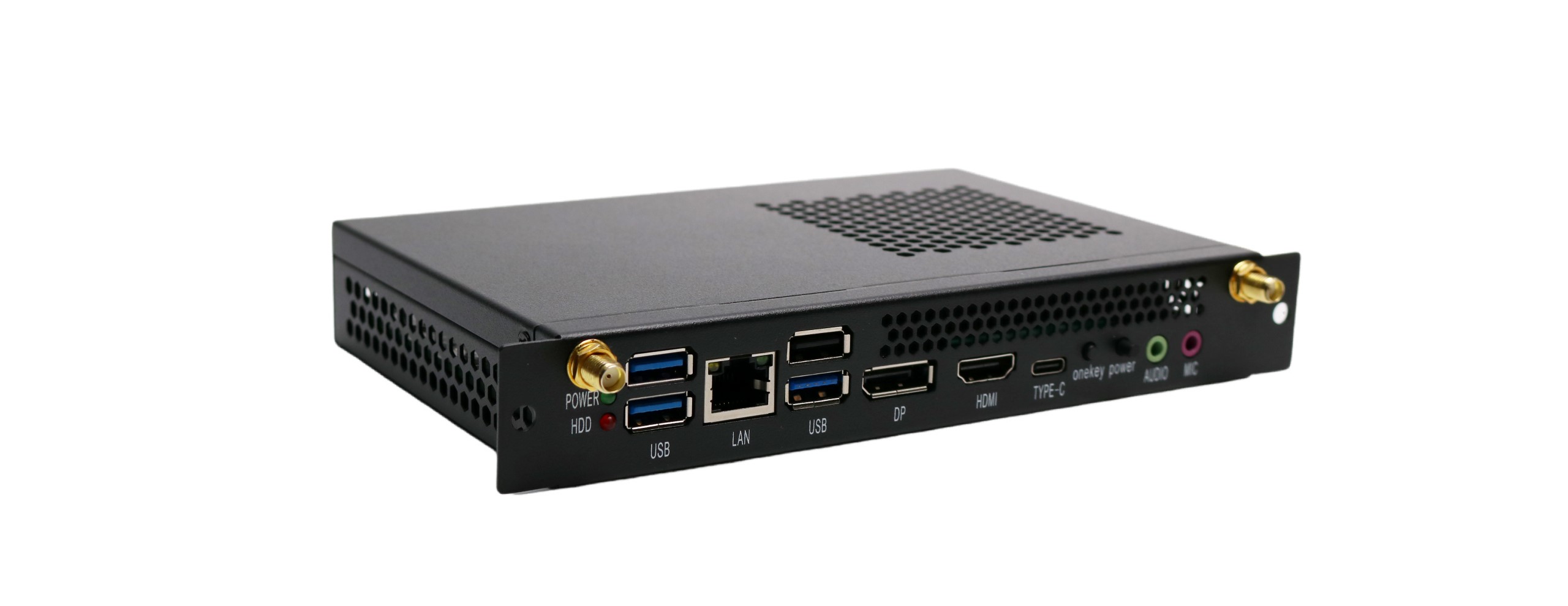

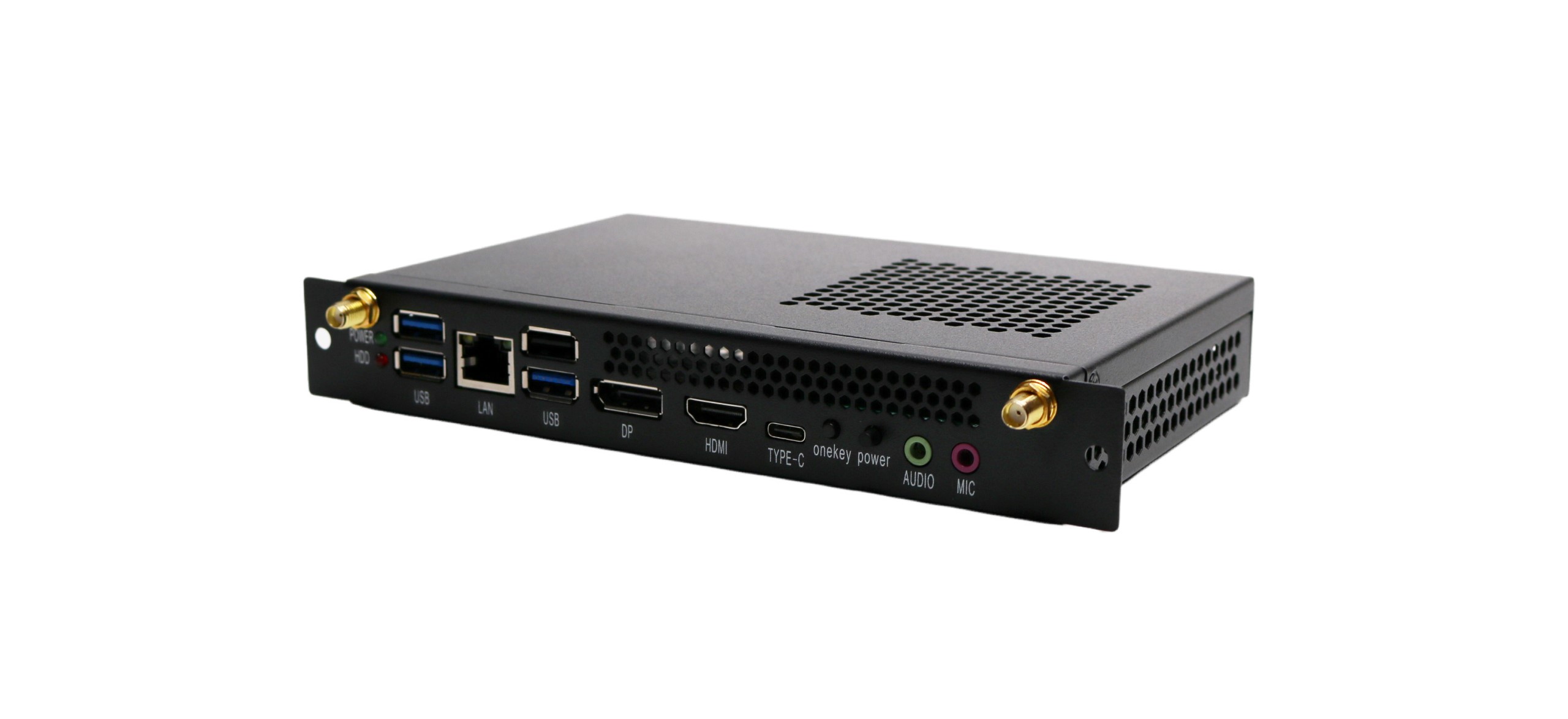

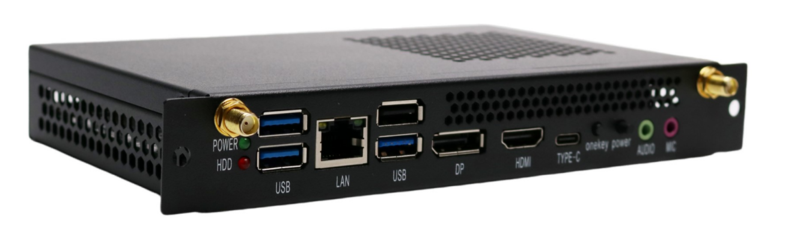

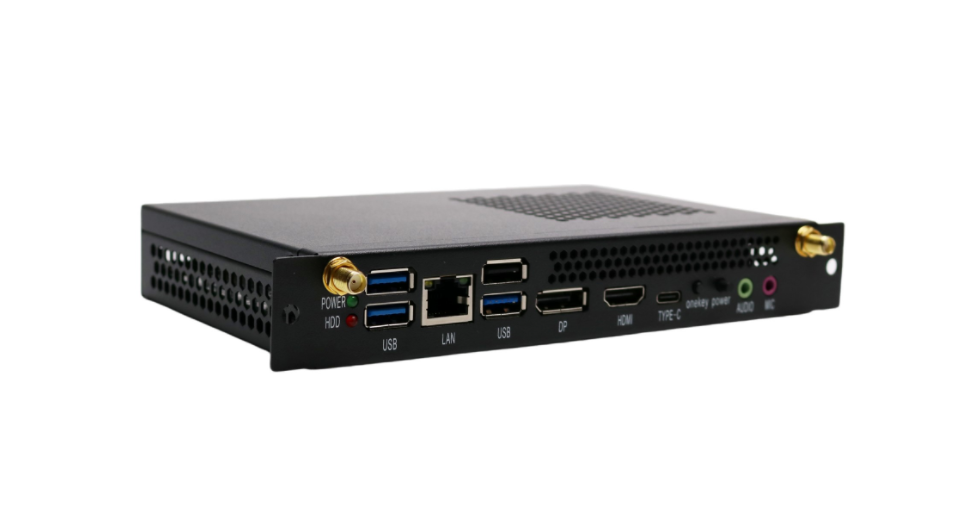

Mekotronics N100-OPS has DDR 4 and SSD for storage. Total 4x USB3.0 and 1x Type-C. RJ45 G-LAN and 3.5mm Audio port.
Mekotronics N100-OPS specifications:
Model | N100-OPS |
Chipset | Intel N100 processor |
CPU | 4 cores, 4 threads, max 3.4Ghz frequency |
GPU | Intel UHD graphics, 750Mhz |
Video output | HDMI and DP, and max resolution 4096*2160@60Hz |
Graphics | DirectX 12.1, OpenGL 4.6, OpenCL 3.0 |
WiFi | Intel WiFi 6 (802.11ax), 2T2R, max speed 2400Mbps |
Antenna | Two WiFi antenna |
Bluetooth | Bluetooth 5.2 |
DDR | DDR4 8G |
SSD | SSD 128G |
OPS | OPS 80-pin 4K@60Hz |
USB 3.0 | USB 3.0 x4 and Type-C |
Ethernet | RJ45 G-LAN |
Audio | 3.5mm Audio and Microphone |
Button | Onekey button and Power button |
DC | DC power |
LED | LED indicator lights for power and HDD |
Product size | 180*119*30mm |
