Mekotronics M58 introduction
Mekotronics M58 is using Rockchip RK3588 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A76 and 4 cores of Cortex A55.
Mekotronics M58 internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.

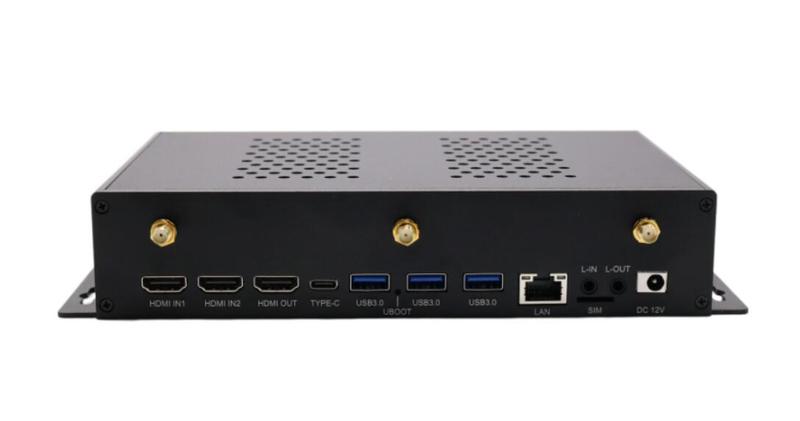

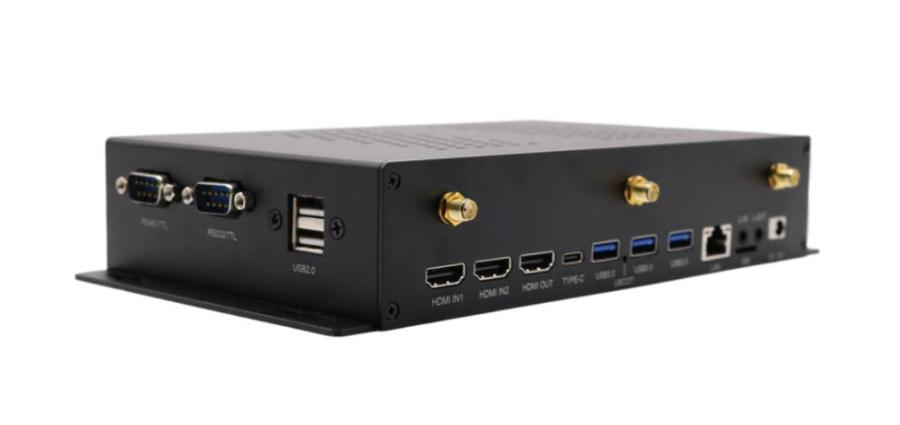

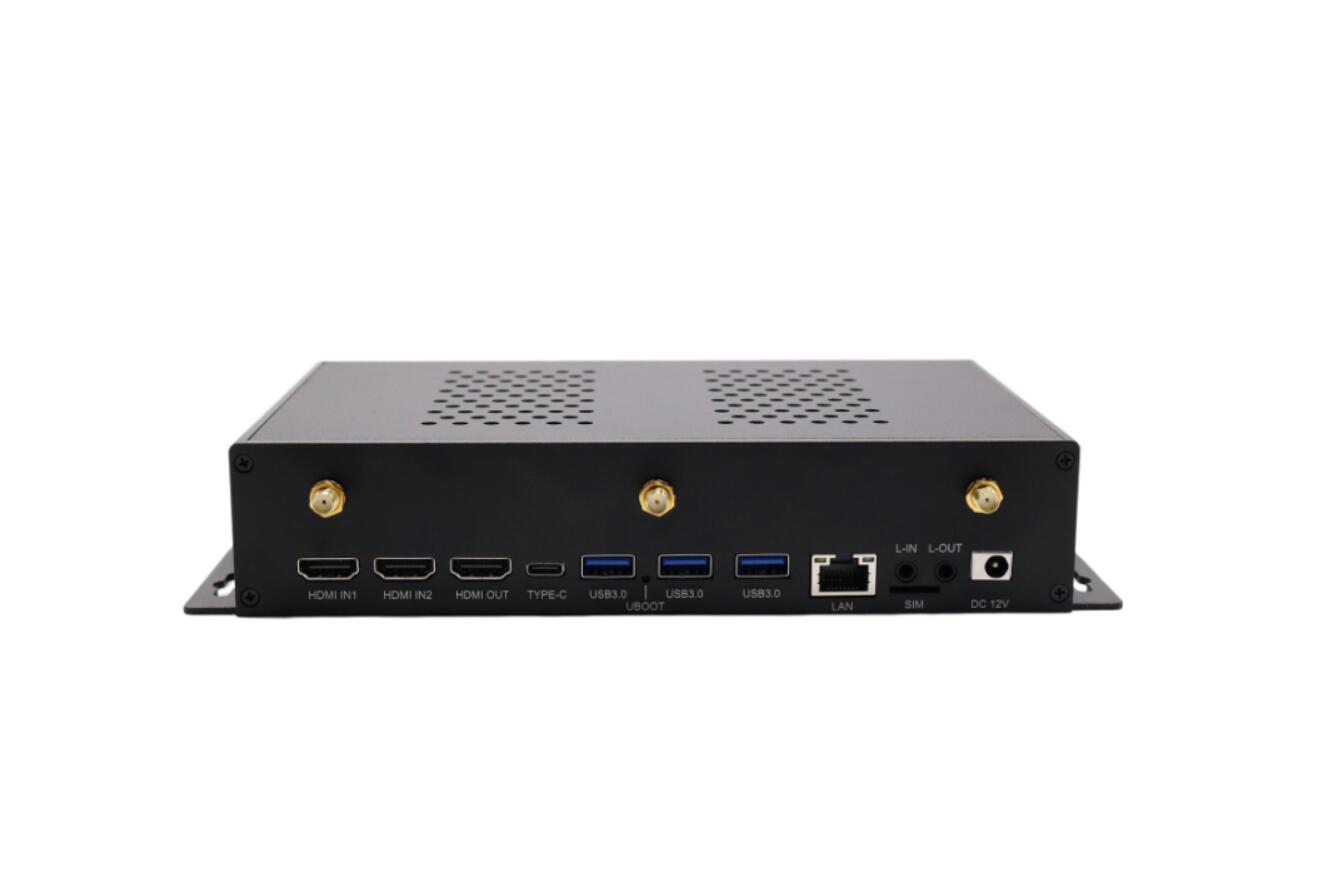

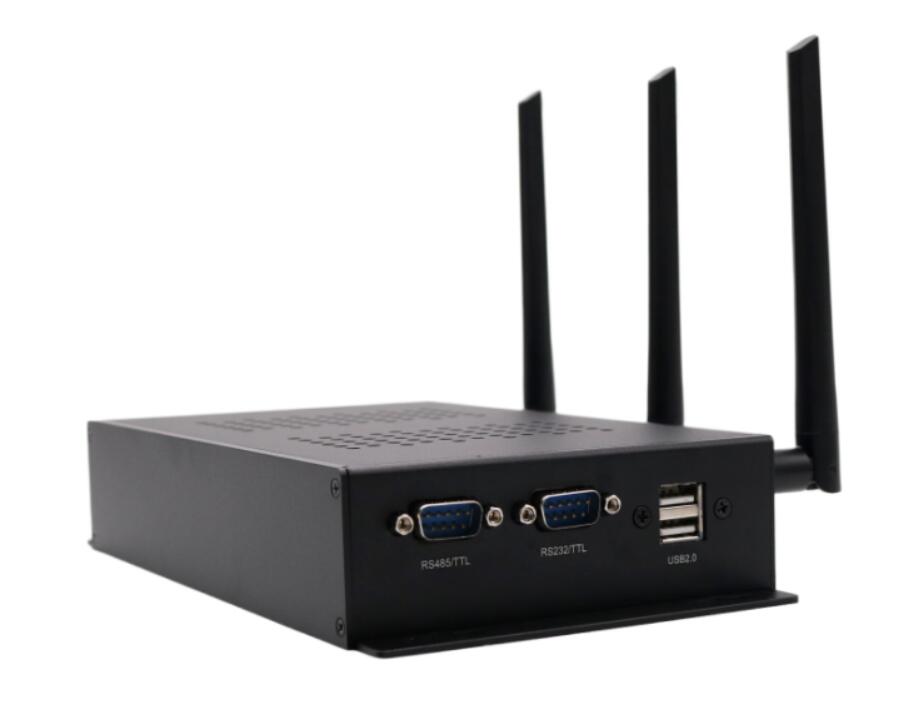

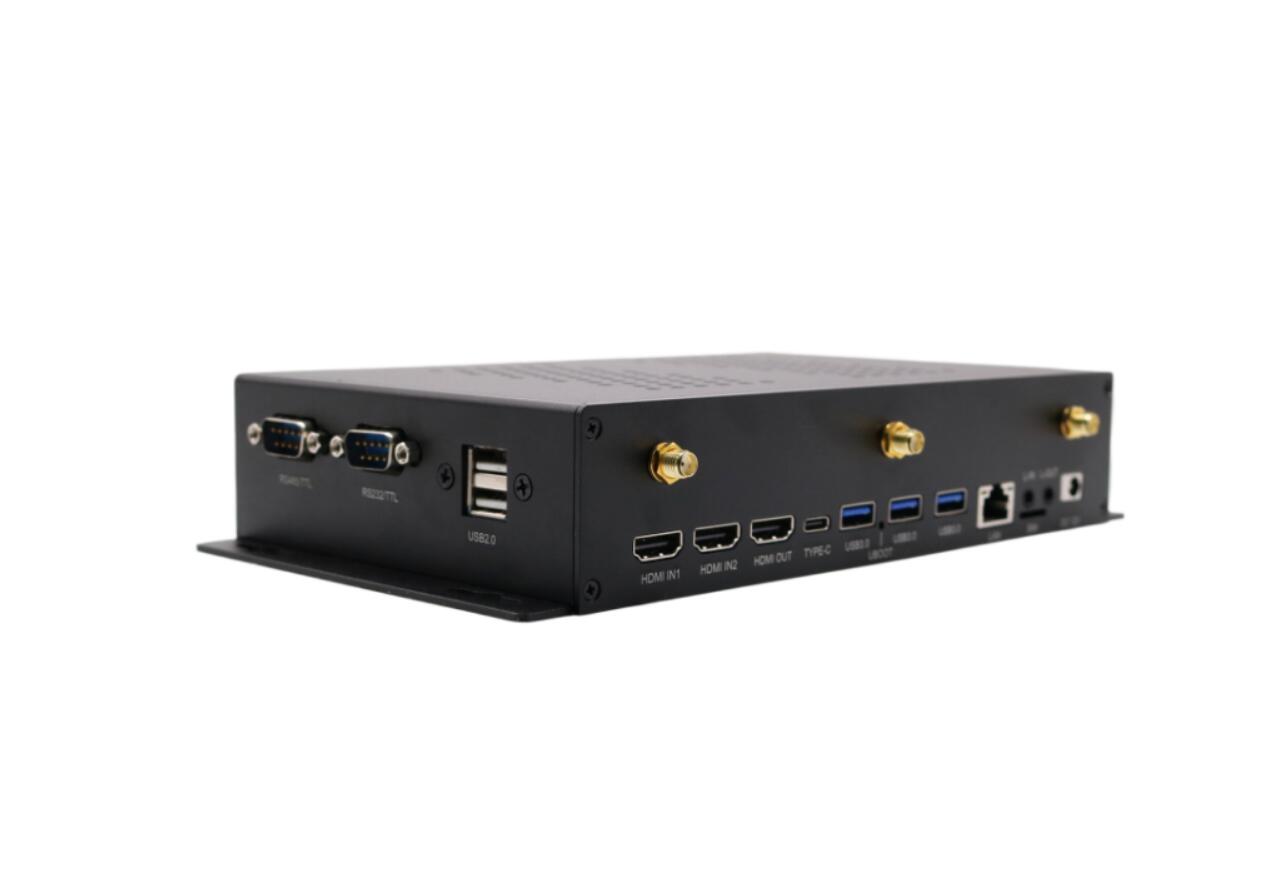

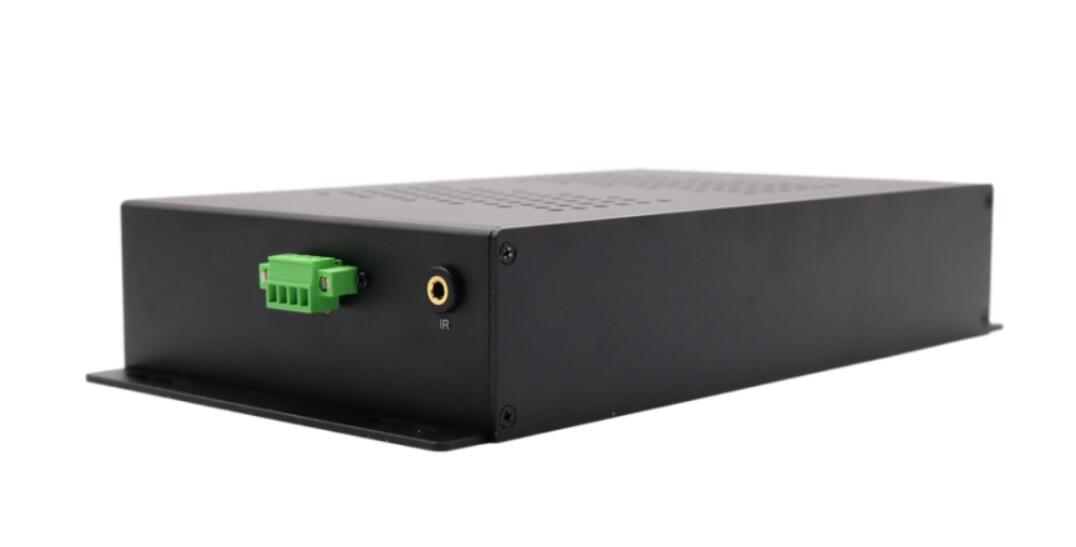

The model M58X has diverse interfaces, HDMI input x2, HDMI output x1, and type-C (DP protocol) video output, USB3.0 x3, RJ45 ethernet, Line in, 3.5 earphone jack, SIM card slot, RS485, RS232, TTL, USB2.0 x2, GPIO and external IR receiver connector.
Mekotronics M58 specifications:
CPU | Rockchip RK3588, Octa-core (quad-core Cortex A76 and quad-core Cortex A55) |
CPU frequency | Quad-core Cortex A76 @2.4Ghz Quad-core Cortex A55 @1.8Ghz |
GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
Embedded high-performance 2D acceleration hardware |
8K 10 bit decoder, 8K encoder |
NPU | 6.0 TOPS NPU |
DDR | LPDDR4X (4G, 8G, 16G optional) |
OS | Android and Linux |
Internal storage | eMMC5.1 (32GB, 64GB, 128GB optional) |
Display output | HDMI output Type-C (DP protocol) Vbyone EDP LVDS |
HDMI input | HDMI input x2 |
Ethernet | G-LAN network 1000Mbps |
WiFi | WiFi 6, IEEE 802.11 a/b/g/n/ac/ax MIMO |
USB | USB3.0 x3, USB2.0 x2 |
PCIE | M.2 PCIe for 5G module or Mini PCIe for 4G module |
SIM card slot | Support Nano SIM card for 4G |
Audio | Support audio jack |
Industrial port | RS232 |
RS485 |
TTL |
GPIO |
DC power | 12V 2Ah (DC port 5.5x2.0) |
