Mekotronics R57
R57 4+32G sample order link:
https://membercenter.made-in-china.com/newtrade/order/page/buyer-start-order.html?from=3&prodId=aTOreLvxOphg&sample=1
Mekotronics R57 introduction:
Mekotronics R57 is using Rockchip RK3576 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A72 and 4 cores of Cortex A53.
And its GPU is Mali-G52 MC3. With its HDMI2.1 output, the max video output resolution is up to 4K@120Hz or 8K@30Hz.

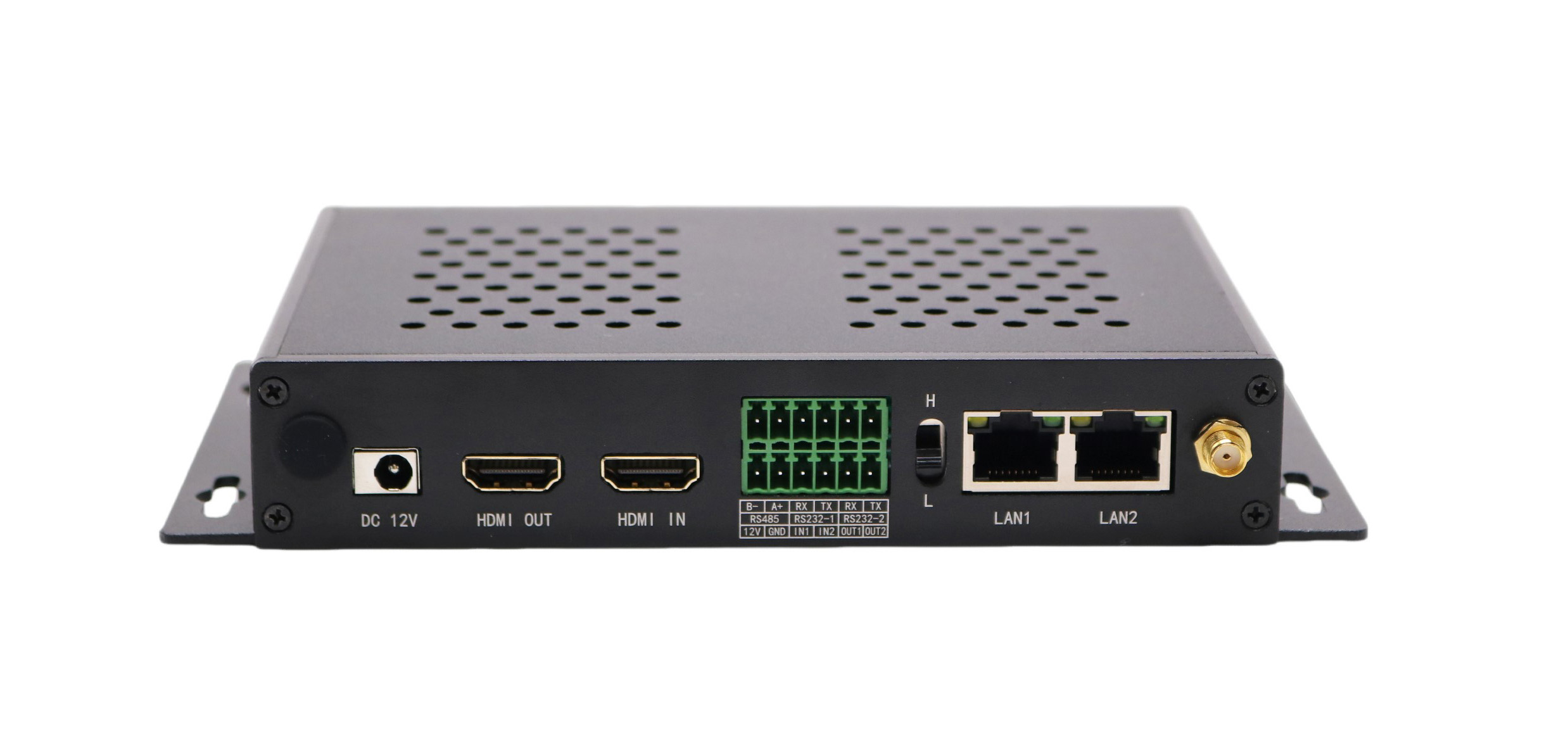

The model R57 has diverse interfaces, HDMI output and HDMI input for video; RS232, RS485, dual GLAN network, GPIO input High/Low switch. On the R57 mainboard, we also has M.2 PCIe port, Mini PCIe, CSI and DSI connectors.
Mekotronics R57 Internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.
Mekotronics R57 Specifications:
CPU | Rockchip RK3576, Octa-core (quad-core Cortex A72 and quad-core Cortex A53) |
CPU frequency | Quad-core Cortex A72 @2.2Ghz Quad-core Cortex A53 @1.8Ghz |
GPU | Arm Mali G52, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
Embedded high-performance 2D acceleration hardware |
Video decoder: H.264/AVC 4K@60fps; H.264/HEVC, VP9, AVS2, AV1 4K@120fps or 8K@30fps Video encoder: H.265, H.264 up to 4K@60fps; supports multi-stream encoding |
NPU | 6 TOPS* for INT8 (support deep learning frameworks, Tensorflow, Caffe, Tflite, Pytorch, Onnx nn, Android NN etc) |
DDR | LPDDR5 32bit 4G, 8G, 16G |
Flash | EMMC 32G/64G/128G UFS 32G/64G/128G/256G/512G/1T |
OS | Android 14, Buildroot, Debian, Armbian |
Video output | HDMI output 4K@120fps or 8K@30fps; Type-C (DP1.4 protocol) |
HDR | HDR10 / HDR HLG/HDR ViVid |
Video input | HDMI input 4k@60fps |
Camera | Mipi CSI |
Display | Mipi DSI |
Ethernet | Dual G-LAN network 1000Mbps x2 |
Wireless | AP6256, 2.4G/5G WiFi and bluetooth V5.1 EDR and BLE |
Clock | Support RTC clock |

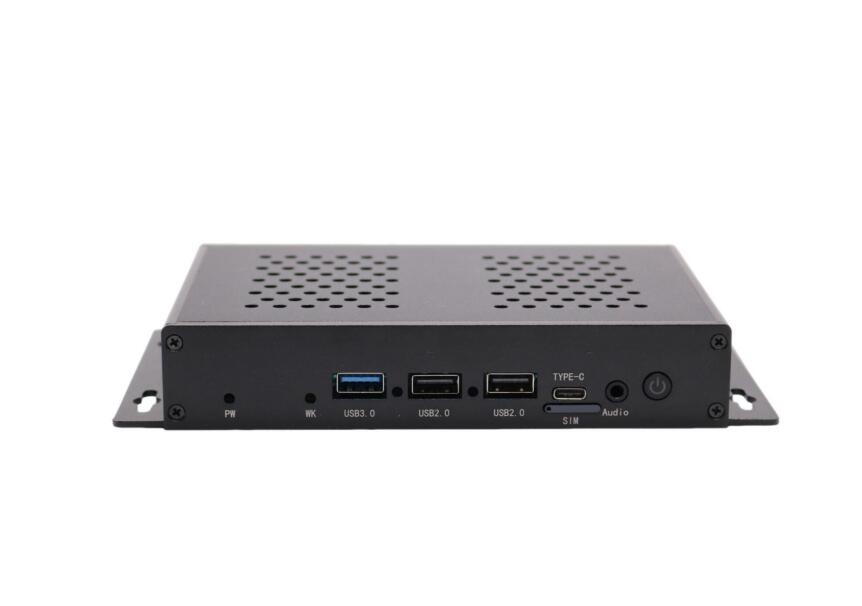

USB | USB3.0, USB2.0, Tpye-C |
PCIE | PCIE 3.0 M.2 M-key), support NVMe SSD size 2280 |
Mini PCIe | Mini PCIe for 4G LTE/GPS module |
SIM card slot | Support Nano SIM card for 4G |
Audio | Support MIC and audio jack |
Industrial port | RS232 |
RS485 |
GPIO and with High/Low switch |
DC power | 12V 2Ah (DC port 5.5x2.1) |
Dimension | 186*106*33mm |
Weight | 362g |
Mekotronics R57 Operation systems:
Android 14, and Linux OS Debian, Buildroot, Armbian, Ubuntu
Mekotronics R57 benchmark
Antutu benchmark:
3D Mark (wild life)
3D Mark (Sling Shot)
