1. R58X-IP68 introduction
Mekotronics R58X-IP68 is using Rockchip RK3588 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A76 and 4 cores of Cortex A55.
With its HDMI2.1 output, the max video output resolution is up to 8K 60Hz (7680*4320 60Hz)
Mekotronics R58X Internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.

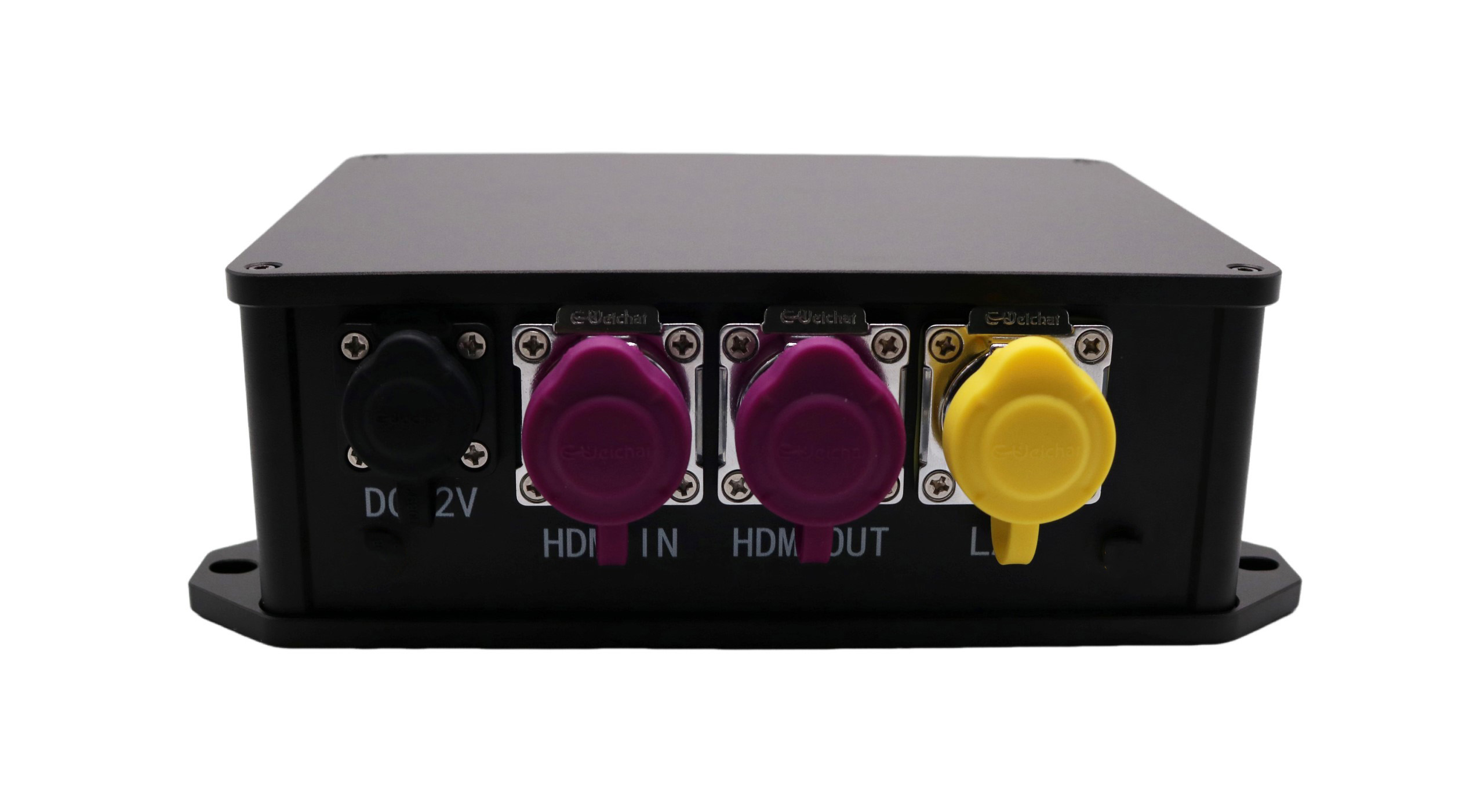

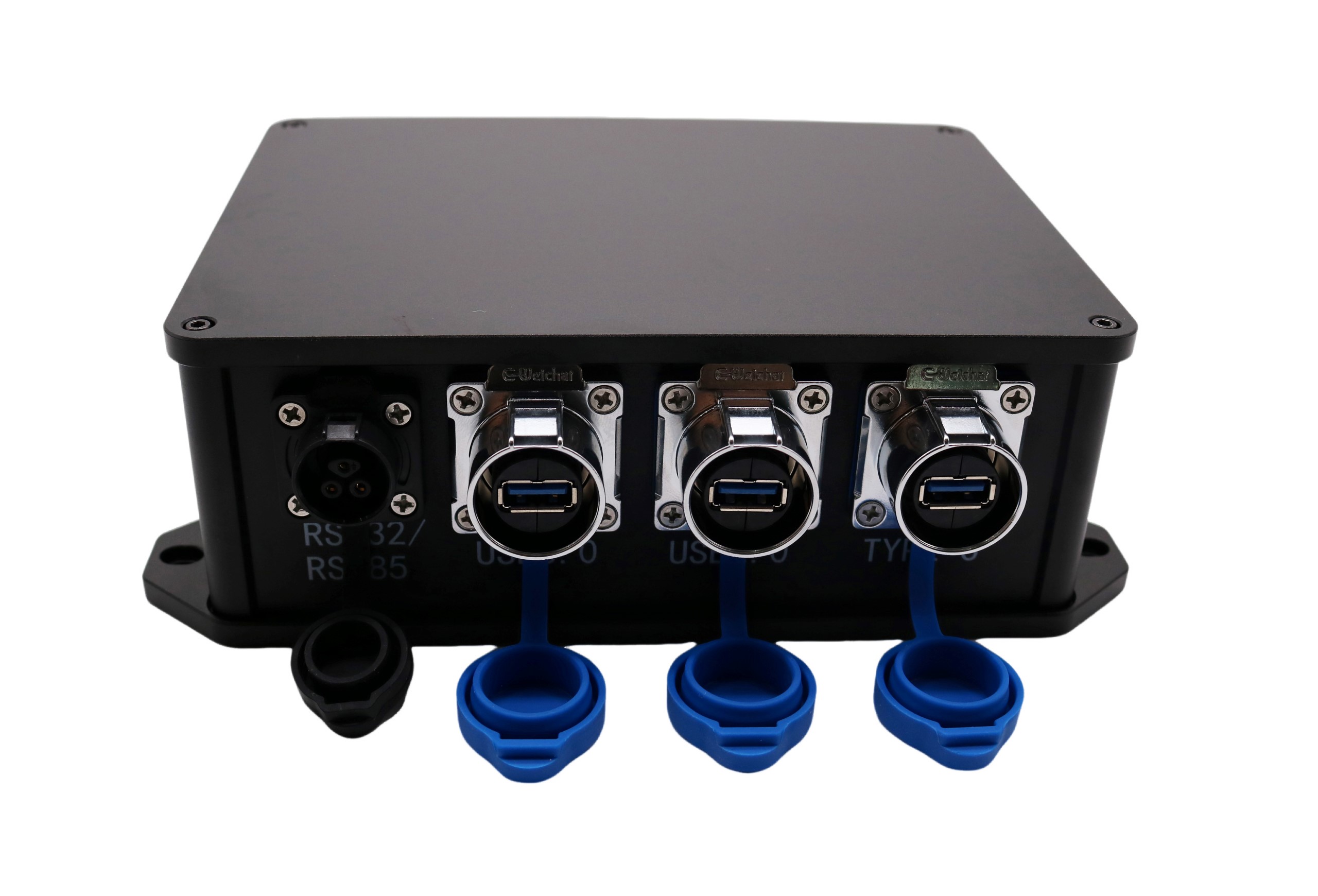

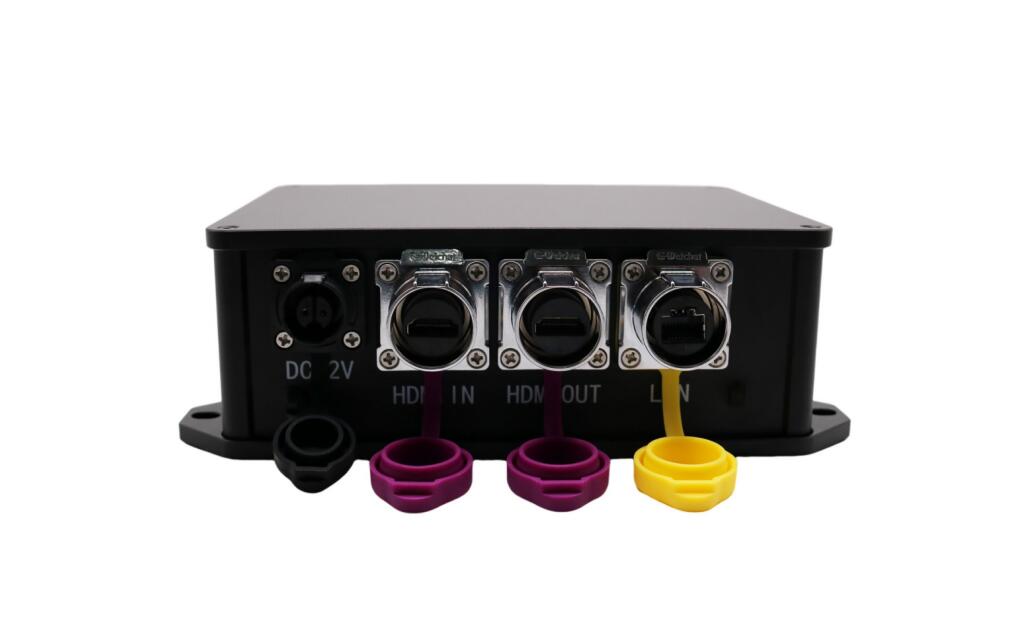

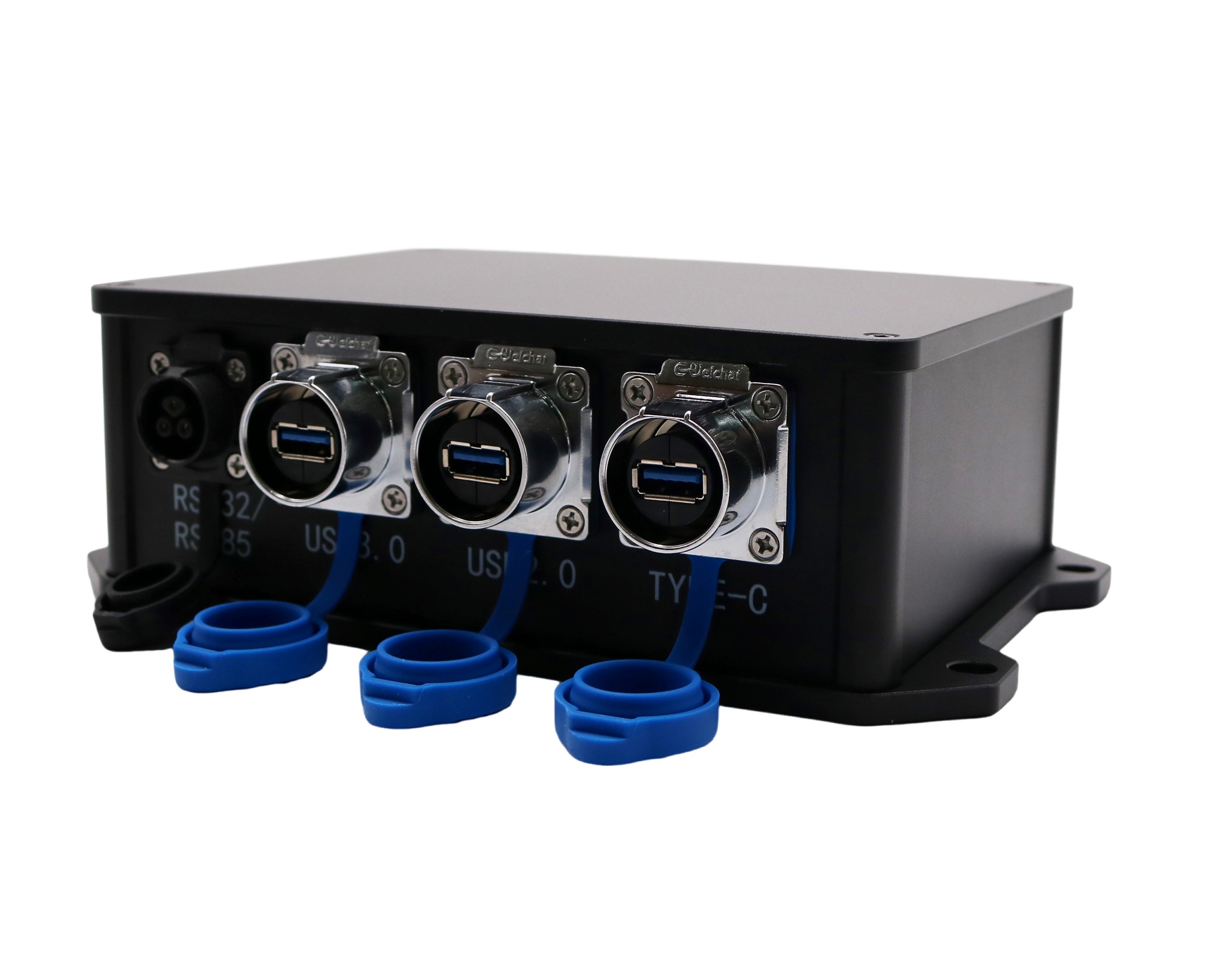

The model R58X-IP68 has diverse interfaces:
HDMI output, HDMI input, RJ45 G-LAN network, USB3.0, USB2.0, Type-C and RS232.
And all the connectors and cables are specifically made and designed for IP68 water proof standard.
2. R58X-IP68 SOC Rockchip RK3588 block diagram
3. R58X-IP68 specifications:
CPU | Rockchip RK3588, Octa-core (quad-core Cortex A76 and quad-core Cortex A55) |
CPU frequency | Quad-core Cortex A76 @2.4Ghz Quad-core Cortex A55 @1.8Ghz |
GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| Embedded high-performance 2D acceleration hardware |
| 8K 10 bit decoder, 8K encoder |
NPU | 6.0 TOPS NPU |
DDR | LPDDR4X (4G, 8G, 16G optional) |
OS | Android 12, Buildroot, Debian 11, Ubuntu 20.04 |
Internal storage | Support eMMC5.1, SDIO3.0 (32GB, 64GB, 128GB optional) |
Display output | HDMI2.1, max output 8K 60Hz, HDCP2.3 |
HDMI input | Max input 4K 60Hz |
Ethernet | G-LAN network 1000Mbps x1 |
Clock | Support RTC clock |
USB | USB3.0, USB2.0, Tpye-C |
PCIE | PCIE 3.0 M.2 M-key), support NVMe SSD size 2280 |
Industrial port | RS232 and RS485 |
POE | Optional POE module for power supplier |
DC power | 12V 2Ah (DC port 5.5x2.0) |
4. R58X-IP68 operation systems: Android 12, Buildroot, Debian 11, Armbian and Armbian OS
(1) Android OS
(2) Buildroot OS
(3) Debian OS
(4) Armbian OS
