Mekotronics R58-4x4 introduction
Mekotronics R58-4x4 is using Rockchip RK3588 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A76 and 4 cores of Cortex A55.
With its HDMI2.1 output, the max video output resolution is up to 8K 60Hz (7680*4320 60Hz)
Mekotronics R58-4x4 Internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.

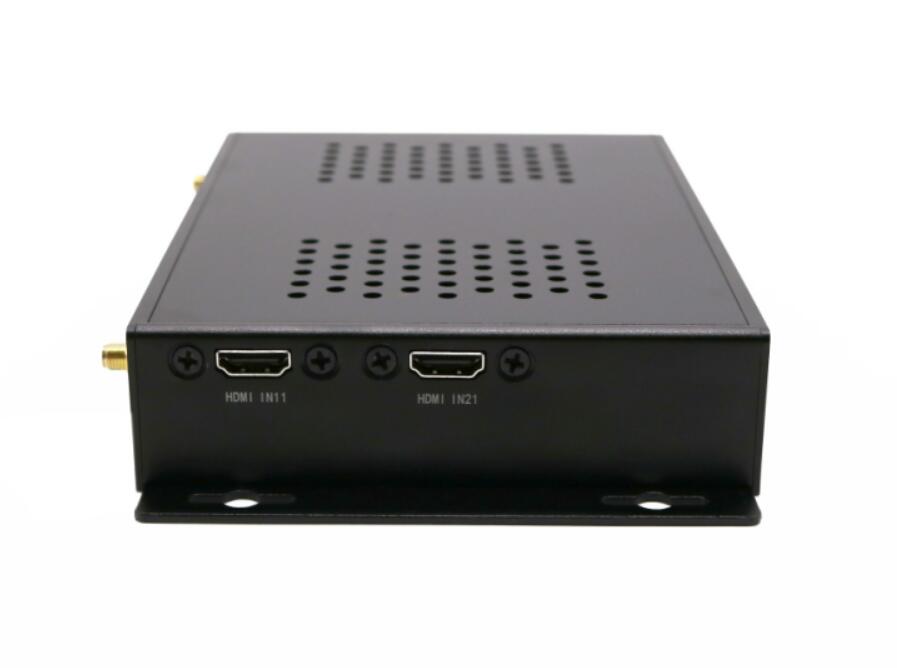

Mekotronics R58-4x4 biggest feature has four HDMI inputs, and max input resolution is 4K@60Hz.

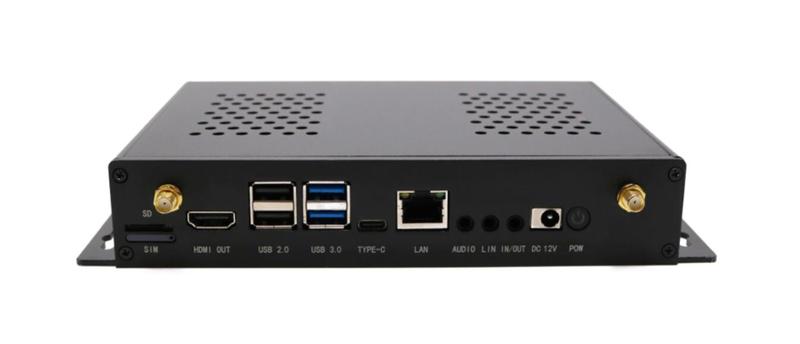

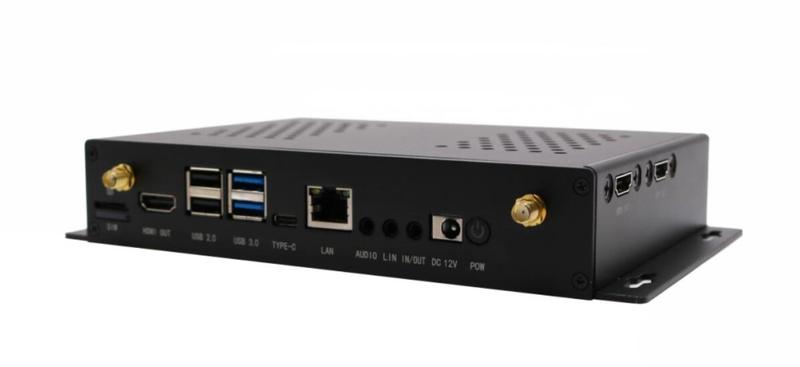

R58-4x4 has diverse connectors and interfaces:
such as USB2.0 and USB3.0, Type-C, G-LAN ethernet, 3.5mm audio port, line in and line out, micro SD card, 4G SIM card slot.
Inside the device, R58-4x4 has M.2 PCIe and mini PCIe for different functionalities extension.
Mekotronics R58-4x4 specification
Chipset | Rockchip RK3588, Octa-core (quad-core Cortex A76 and quad-core Cortex A55) |
CPU frequency | Quad-core Cortex A76 @2.4Ghz Quad-core Cortex A55 @1.8Ghz |
GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
Embedded high-performance 2D acceleration hardware |
8K 10 bit decoder, 8K encoder |
NPU | 6.0 TOPS NPU |
DDR | LPDDR4X (4G, 8G, 16G options) |
OS | Android, Buildroot, Debian, Armbian |
Storage | eMMC5.1 (32G, 64G, 128G options) |
HDMI output | HDMI2.1, max output 8K 60Hz |
HDMI input | HDMI inputs x4, max input 4K 60Hz |
Screen panel 1 | LVDS (internal connector) |
Screen panel 2 | Mipi (internal connector) |
Ethernet | G-LAN network 1000Mbps |
WiFi | WiFi 6, IEEE 802.11 a/b/g/n/ac/ax MIMO |
Clock | Support RTC clock |
USB | USB3.0 x2, USB2.0 x4, Tpye-C x1 |
PCIE | PCIE 3.0 M.2 M-key, support NVMe SSD size 2280 |
Mini PCIe | Mini PCIe for 4G LTE/GPS module |
SIM card slot | Support Nano SIM card for 4G |
Micro SD card | Micro SD card slot |
Audio | 3.5mm audio, Line-in, Line-out |

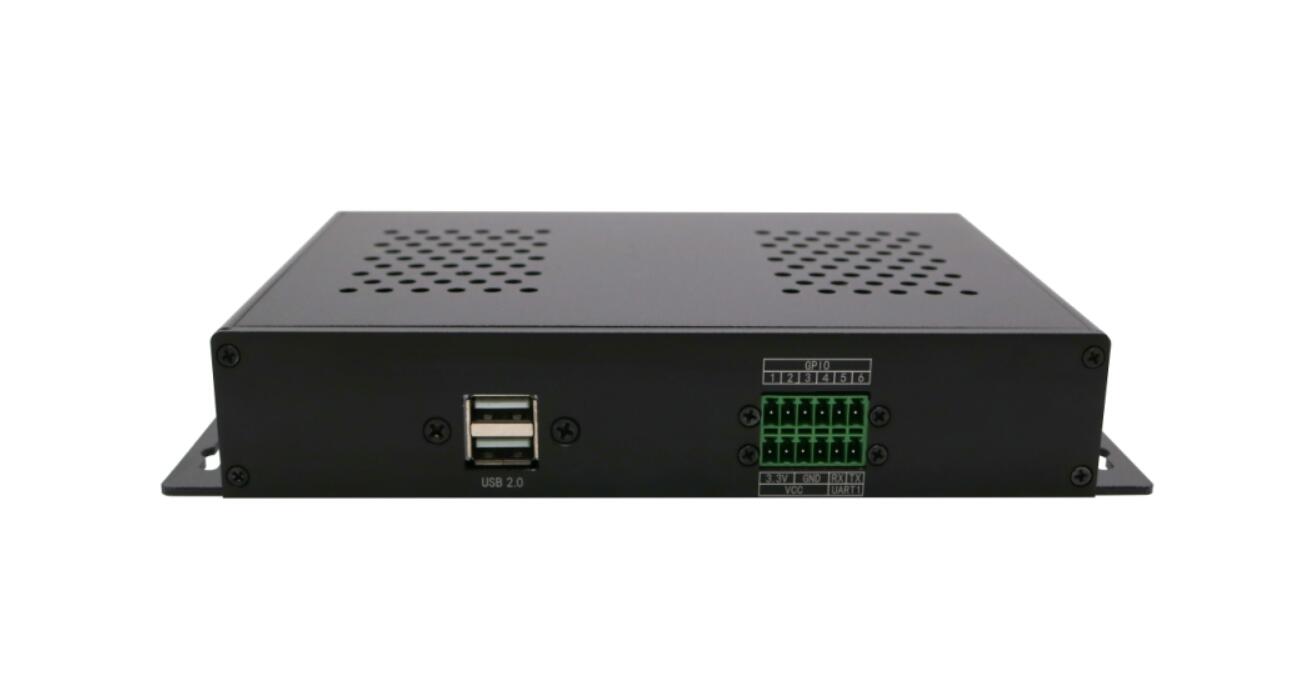

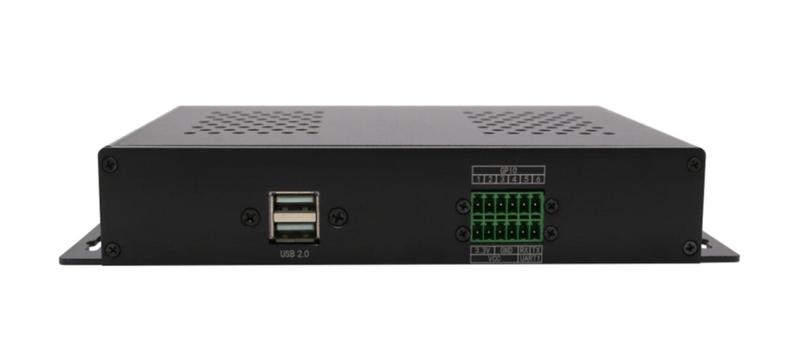

Industrial port | GPIO |
DC power | 12V 2Ah (DC port 5.5x2.0) |
Mekotronics R58-4x4 operation systems
(1) Android OS
(2) Debian OS
(3) Armbian OS
