125H

Mekotronics 125H is based on Intel 14 generation CPU, 125H, and beside its powerful CPU, the biggest feature for the 14^th generation CPU is its Intel Deep Learning Enhancement, deep learning functionality, Intel on GPU ®   Deep Learning Enhancement (Intel) ® DL Boost, for artificial intelligence and frameworks. And the NPU is Intel® AI Boost (OpenVINO™, WindowsML, DirectML, ONNX RT)

Mekotronics 125H uses Intel® Core™ Ultra 5 processor 125H, and it is a 14 cores (Performance-core 4 cores, Efficient-core 8 cores, low-power consumption 2 cores), total 18 threads;

And its max frequency can be up to 4.5Ghz (Performance-core 4.5Ghz, Efficient-core 3.6Ghz, low-power consumption 2.5Ghz)

The integrated GPU is Intel® Arc™ graphics, 2.2 GHz. Mekotronics 125H has two HDMI outputs, and max resolution is HDMI x2, 4096 x 2304 @ 60Hz, and a full function Type-C also can be video output. And its video encode and decode are H.264, H.265, AV1 hardware encode and decode and VP9 bitstream and decoding.

Mekotronics 125H has Xe-core 7, Ray Tracing, and support DirectX* 12.2, OpenGL* 4.6, OpenCL*3

Mekotronics 125H BIOS support, Real time clock, timed startup; support automatic power on function after power on; support UEFI diskless startup.

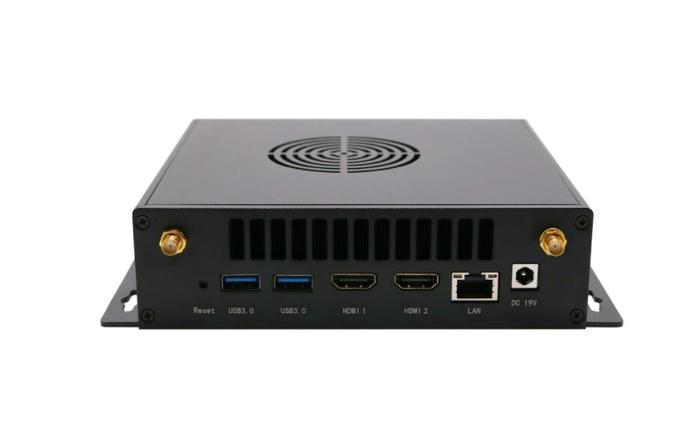

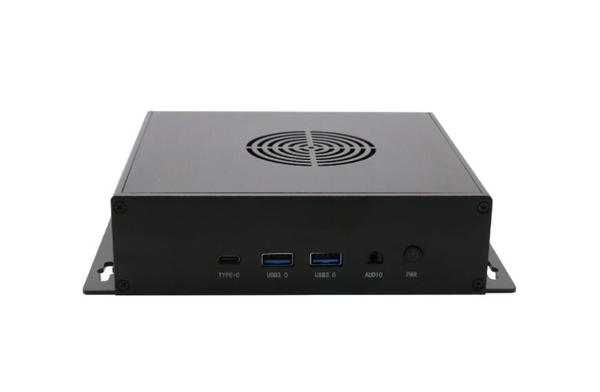

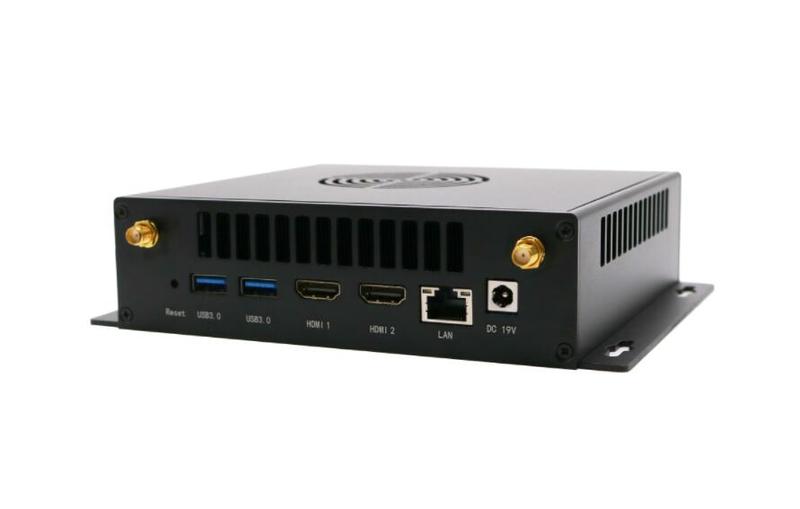

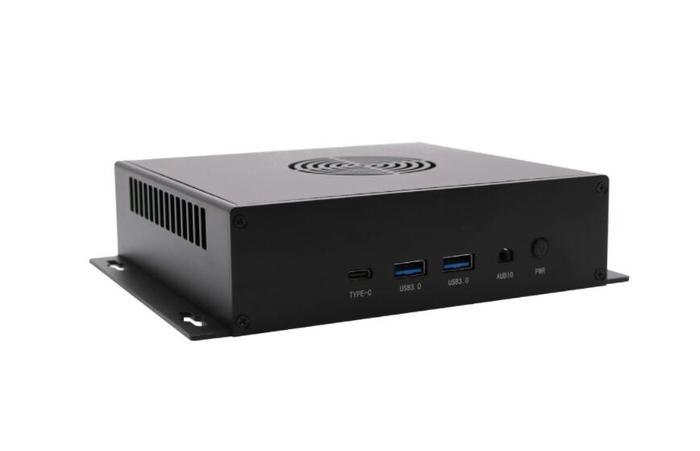

Mekotronics 125H has versatile connectors and interfaces such as WiFi 6 and Bluetooth 5.2, and its Ethernet module is 10M/100M/1000M/2.5Gbps self-adaptive. With its USB3.0 Type-A*4 5Gbps and Type_C * 1 (full function) 10Gbps, it can easily meet daily work needs.

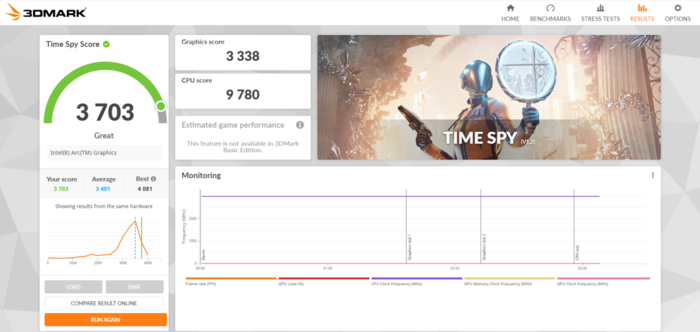

3D Mark Time Spy, score 3703 (tested with 32G DDR)

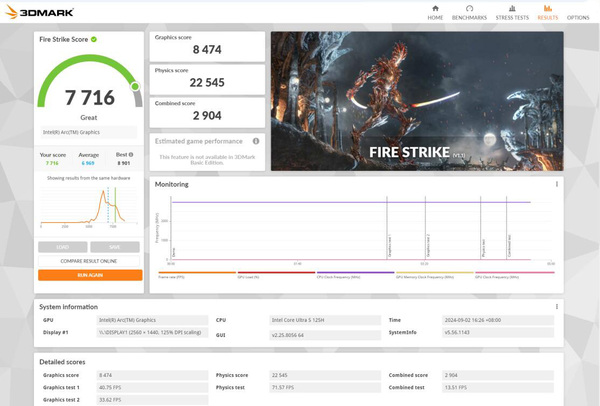

3D Mark Fire Strike, score 7716 (tested with 32G DDR)
