Mekotronics R58X-1U review video:
https://youtu.be/WmmqzWfL4_M
Mekotronics R58X-1U is based on Rockchip RK3588 chipset, and its CPU is an Octa-core, quad-core Cortex A76 and quad-core Cortex A55.
R58X-1U GPU is Mali-G610 GPU, and support OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2. And it is capable of 8K 10 bit decoder, 8K encoder.
Mekotronics R58X-1U also has 6 TOPS NPU for AI applications. RAM is LPDDR4X and ROM is eMMC 5.1

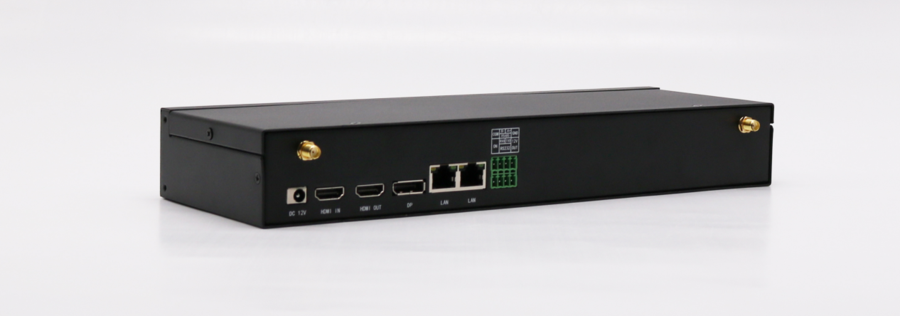

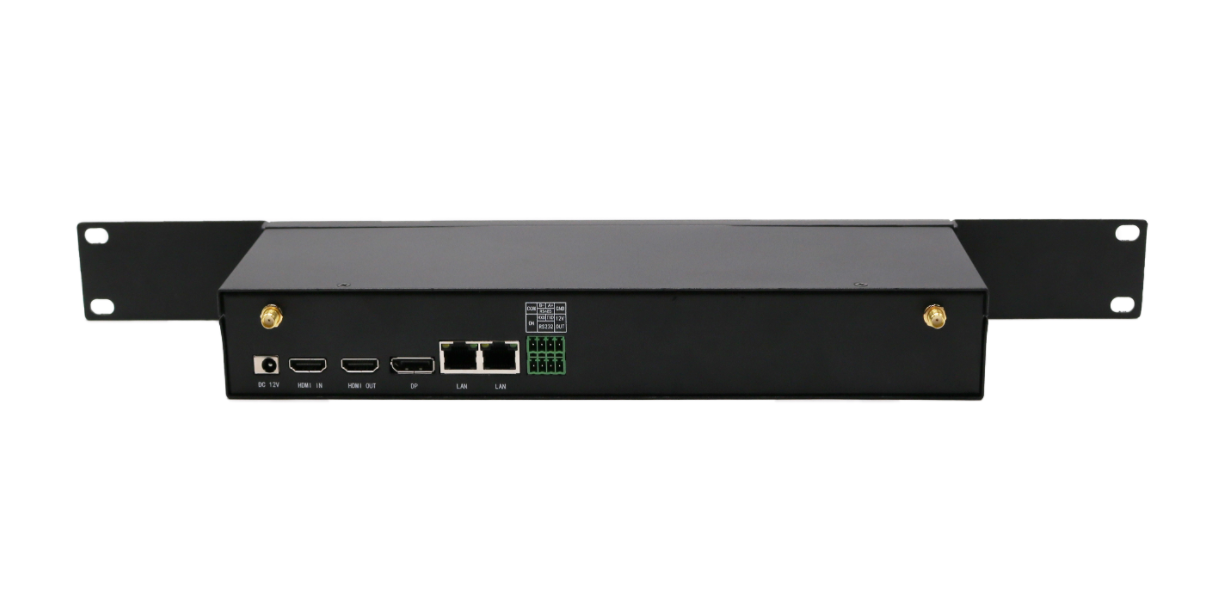

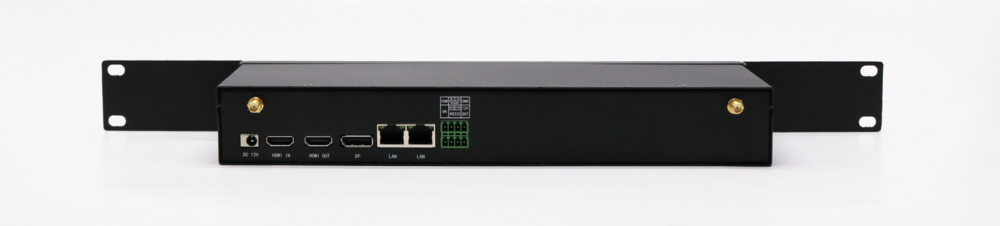

Mekotronics R58X-1U has 1xHDMI output, 1xDP output and 1xHDMI input.
The HDMI output max 7680*4320@60Hz, and its HDMI input is up to 4K@60Hz

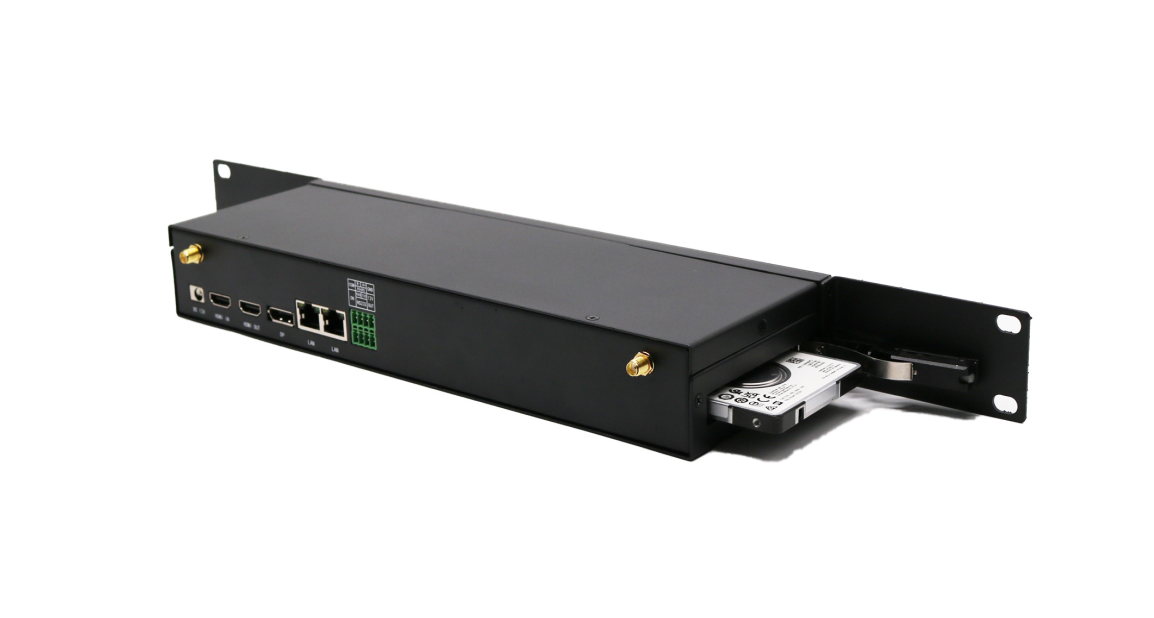

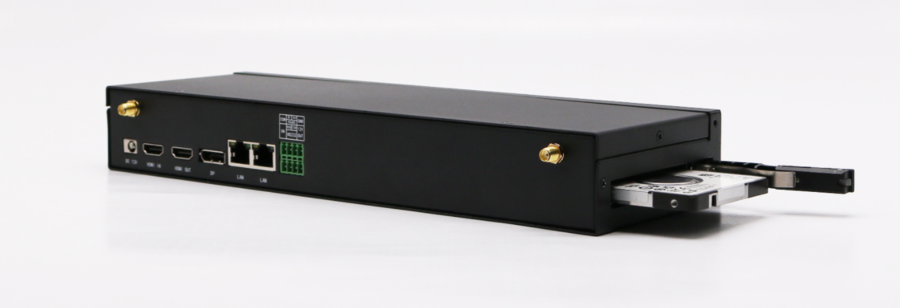

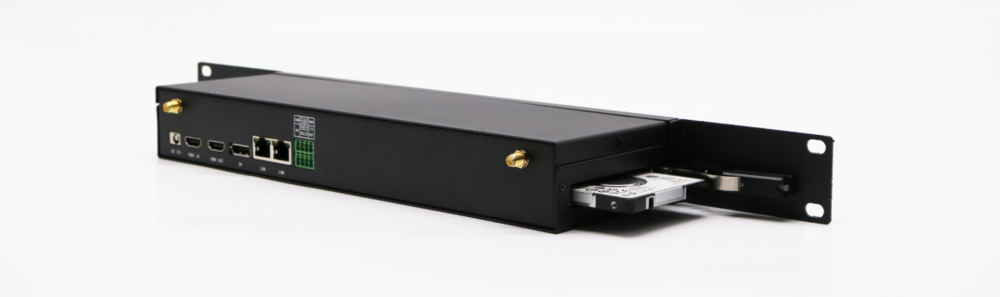

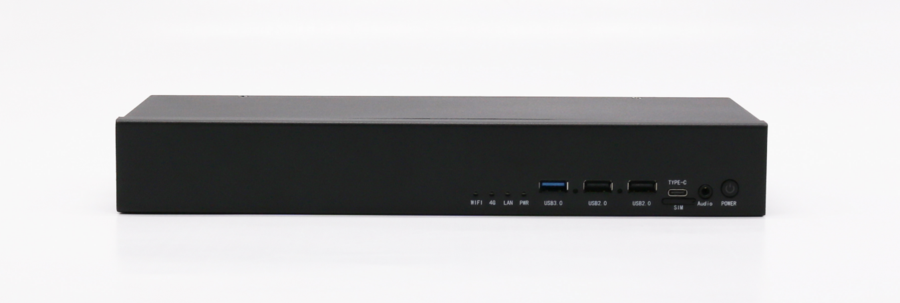

The model R58X-1U is a standard 1U chasis, and its size 440*250*44mm. It also has a 2.5 inch hard drive slot for easy install hard drives.
Mekotronics R58X-1U specs table
Model | R58X-1U |
CPU | Rockchip RK3588, Octa-core (quad-core Cortex A76 and quad-core Cortex A55) |
CPU frequency | Quad-core Cortex A76 @2.4Ghz |
| Quad-core Cortex A55 @1.8Ghz |
GPU | Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| Embedded high-performance 2D acceleration hardware |
| 8K 10 bit decoder, 8K encoder |
NPU | 6.0 TOPS NPU |
DDR | LPDDR4X (4G, 8G, 16G optional) |
OS | Linux OS, Debian, Armbian, Ubuntu, Buildroot |
Internal storage | Support eMMC5.1 (32GB, 64GB, 128GB optional) |
Display output | HDMI2.1, max output 8K 60Hz, DP1.4, max output 8K 30Hz |
HDMI input | Max input 4K 60Hz |
Ethernet | Dual G-LAN network 1000Mbps x2 |
WiFi | WiFi 6, IEEE 802.11 a/b/g/n/ac/ax MIMO |
Clock | Support RTC clock |

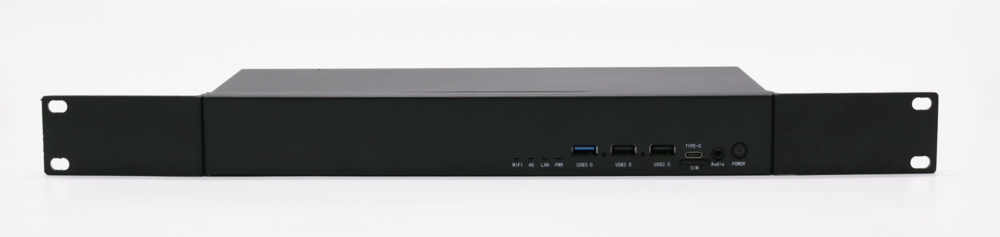

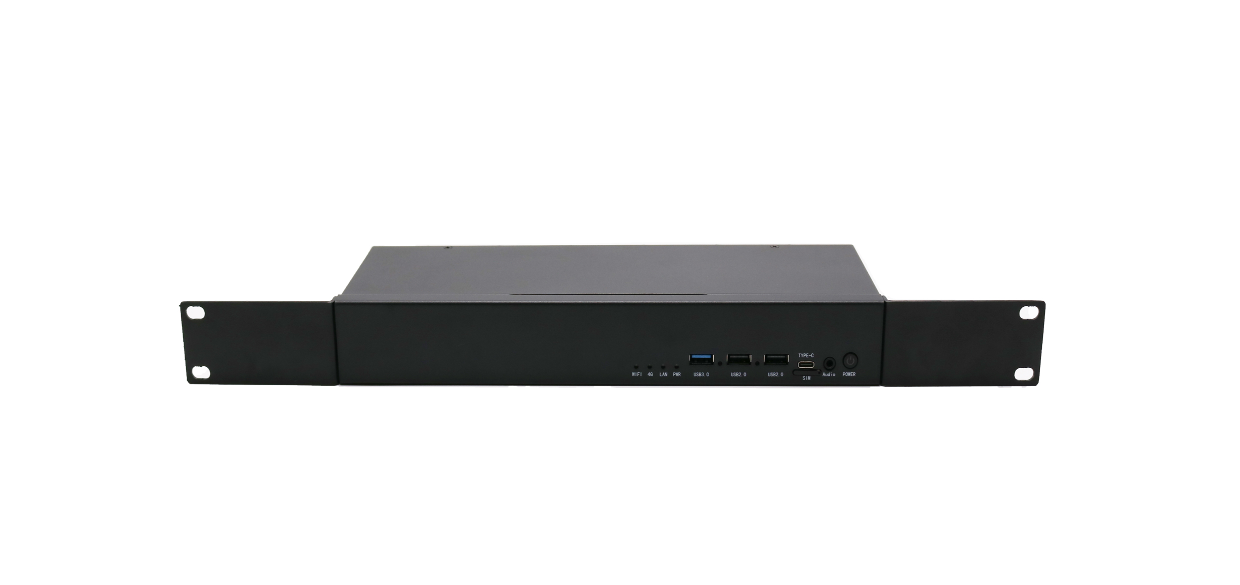

USB | USB3.0, USB2.0, Tpye-C |
PCIE | PCIE 3.0 M.2 M-key, support NVMe SSD size 2280 |
SATA | Detachable 2.5" HDD SATA slot |
Audio | Support MIC and audio jack |
Industrial port | RS232, RS485 |
1U metal chasis | Standard 1U size 440*250*44mm |
DC power | 12V 2Ah (DC port 5.5x2.0) |
Mekotronics R58X-1U operation systems
Android OS
Debian OS
Armbian OS
Buildroot OS
