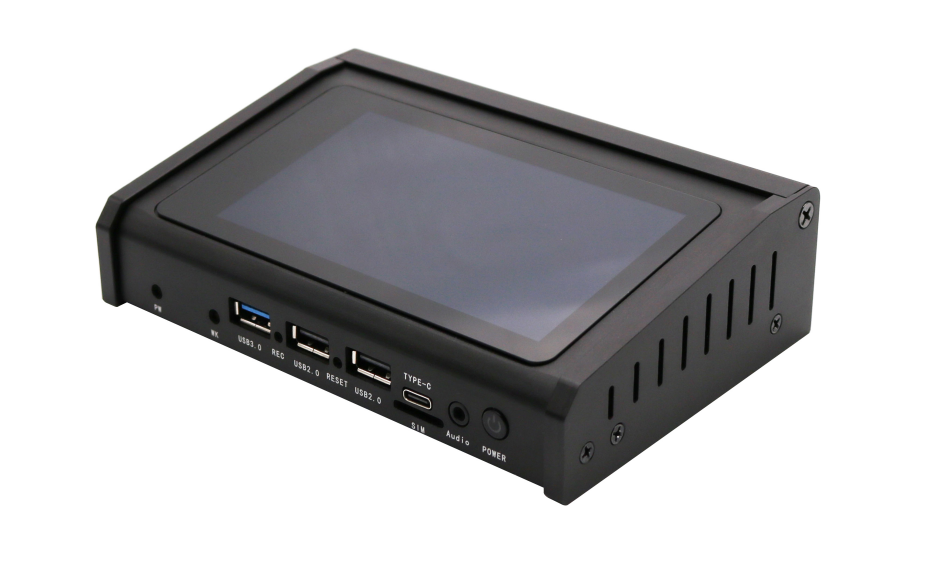

Mekotronics R57-5S introduction
Mekotronics R57-5S is using Rockchip RK3576 chipset, which is 8nm made and 8-core CPU, 4 cores Cortex A72 and 4 cores of Cortex A53.
And its GPU is Mali-G52 MC3. With its HDMI2.1 output, the max video output resolution is up to 4K@120Hz or 8K@30Hz.

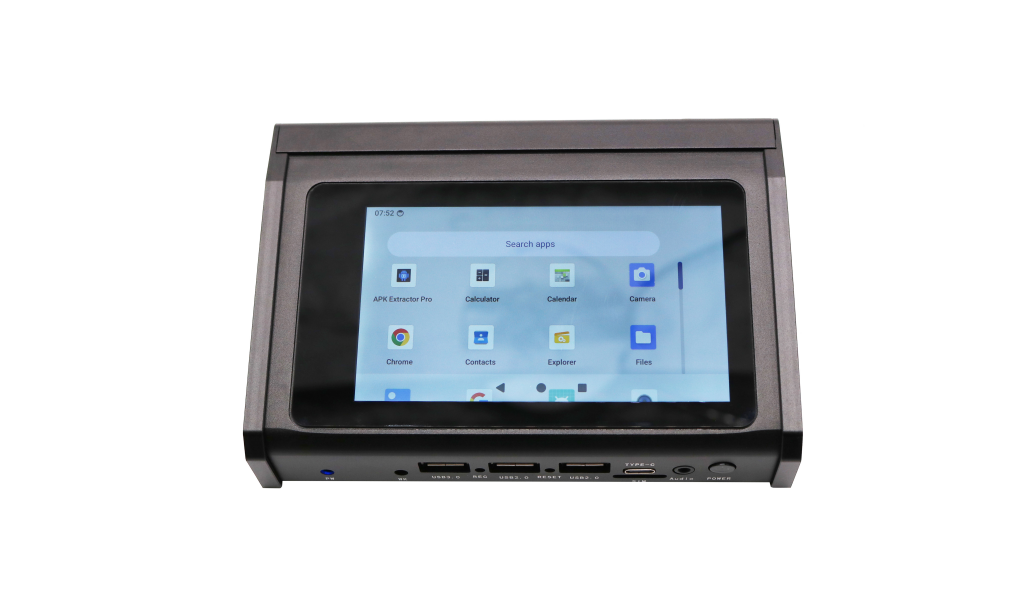

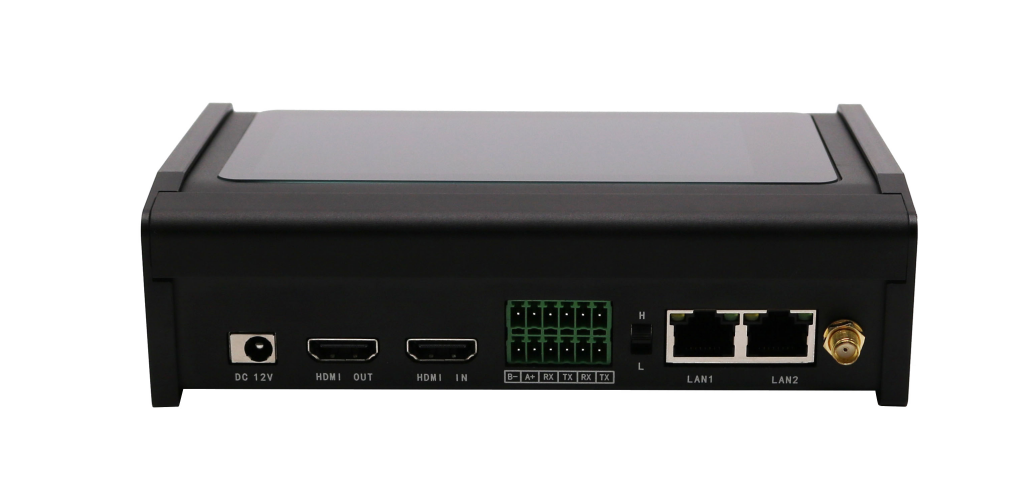

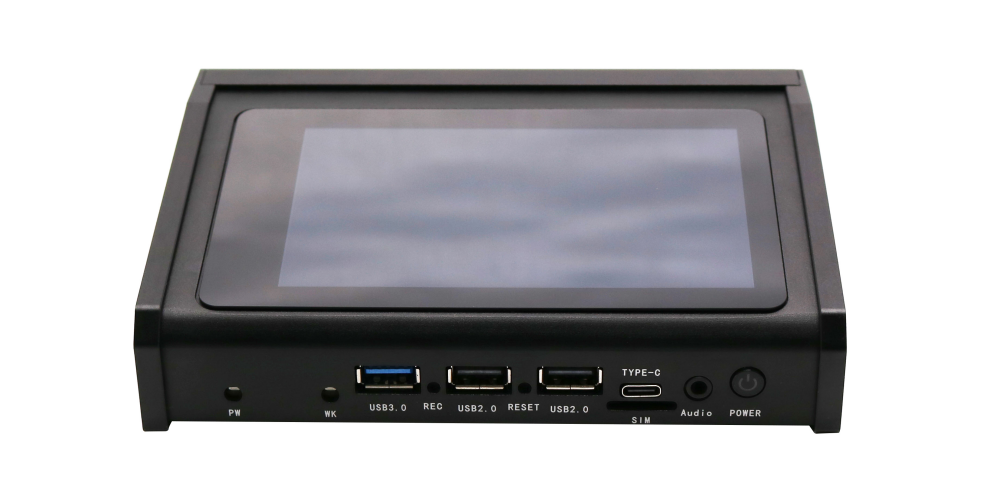

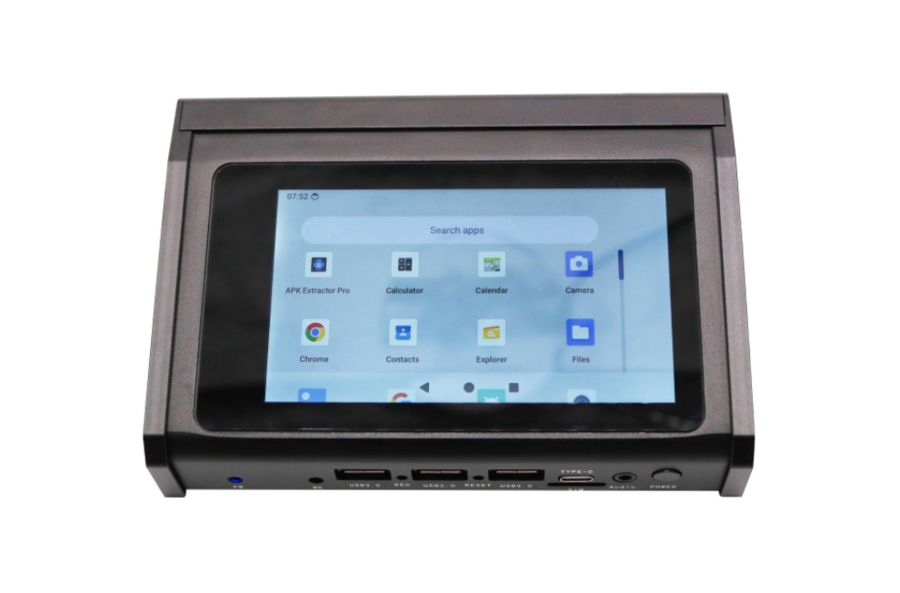

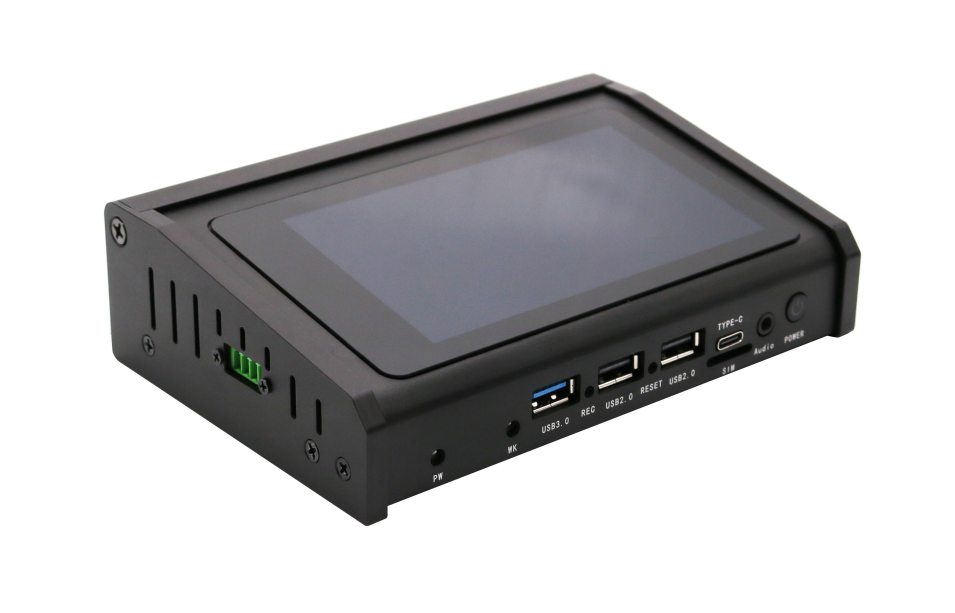

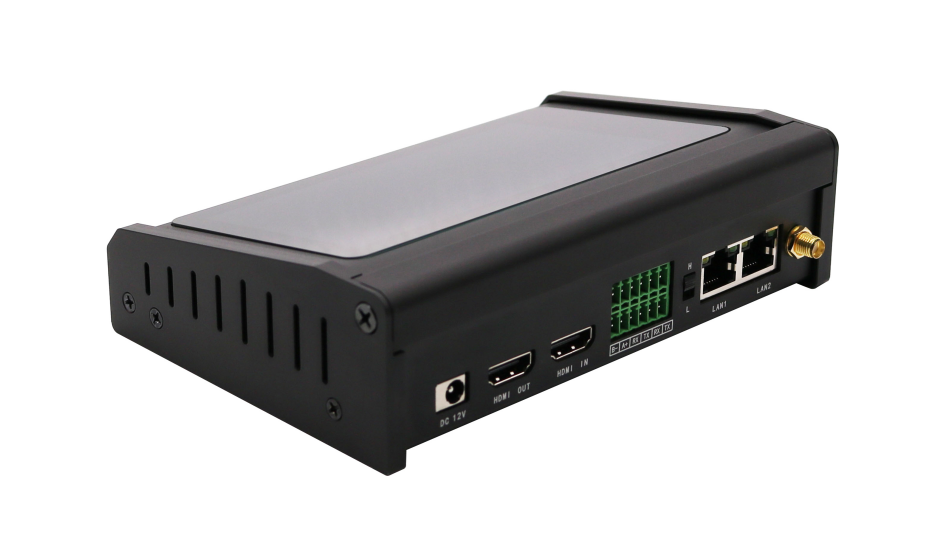

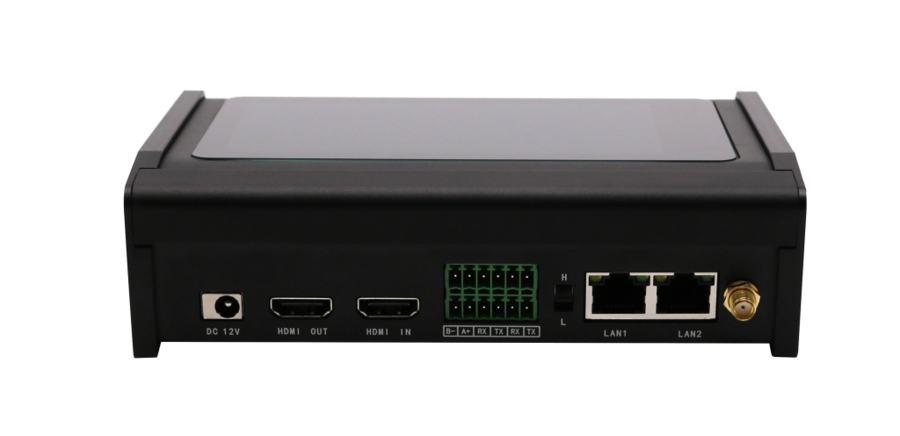

The model R57-5S has diverse interfaces, 5 inch touch panel display, HDMI output and HDMI input for video; RS232, RS485,
dual G-LAN network, GPIO input High/Low switch. On the R57-5S mainboard, we also has M.2 PCIe port, Mini PCIe, CSI and DSI connectors.
Mekotronics R57-5S Internally integrated 6.0 tops NPU can meet the edge computing needs of most terminal devices.
R57-5S Specifications
CPU | Rockchip RK3576, Octa-core (quad-core Cortex A72 and quad-core Cortex A53) |
CPU frequency | Quad-core Cortex A72 @2.2Ghz Quad-core Cortex A53 @1.8Ghz |
GPU | Arm Mali G52 MC3, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| Embedded high-performance 2D acceleration hardware |
| Video decoder: H.264/AVC 4K@60fps; H.264/HEVC, VP9, AVS2, AV1 4K@120fps or 8K@30fps Video encoder: H.265, H.264 up to 4K@60fps; supports multi-stream encoding |
NPU | 6 TOPS* for INT8 (support deep learning frameworks, Tensorflow, Caffe, Tflite, Pytorch, Onnx nn, Android NN etc) |
DDR | LPDDR5 32bit 4G, 8G, 16G |
Flash | EMMC 32G/64G/128G UFS 32G/64G/128G/256G/512G/1T |
OS | Android 14, Buildroot, Debian, Armbian |
Video output | HDMI output 4K@120fps or 8K@30fps; Type-C (DP1.4 protocol) |
HDR | HDR10 / HDR HLG/HDR ViVid |
Video input | HDMI input 4k@60fps |
Camera | Mipi CSI |
Display | 5 inch touch panel display |
Ethernet | Dual G-LAN network 1000Mbps x2 |
Wireless | AP6256, 2.4G/5G WiFi and bluetooth V5.1 EDR and BLE |
Clock | Support RTC clock |
USB | USB3.0, USB2.0, Tpye-C |
PCIE | PCIE 3.0 M.2 M-key, support NVMe SSD size 2280 |
Mini PCIe | Mini PCIe for 4G LTE/GPS module |
SIM card slot | Support Nano SIM card for 4G |
Audio | Support MIC and audio jack |
Industrial port | RS232 |
| RS485 |
| GPIO and with High/Low switch |
DC power | 12V 2Ah (DC port 5.5x2.1) |
Dimension | 162*111*46mm |
Mekotronics R57-5S operation systems
(1) Android OS
(2) Debian OS

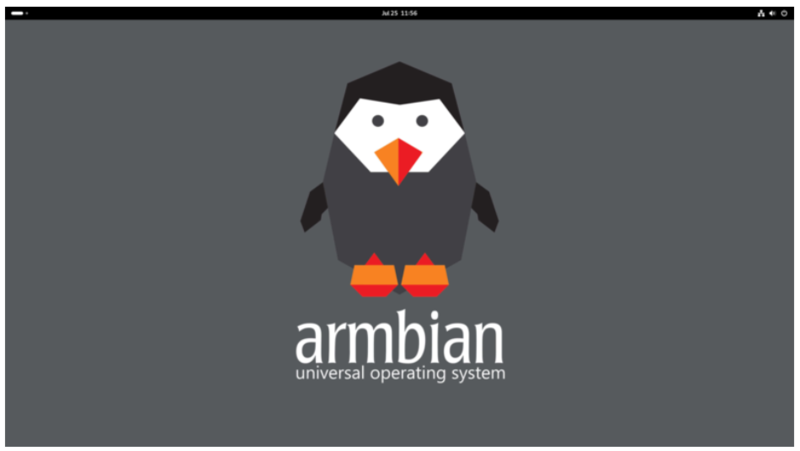

(3) Armbian OS
